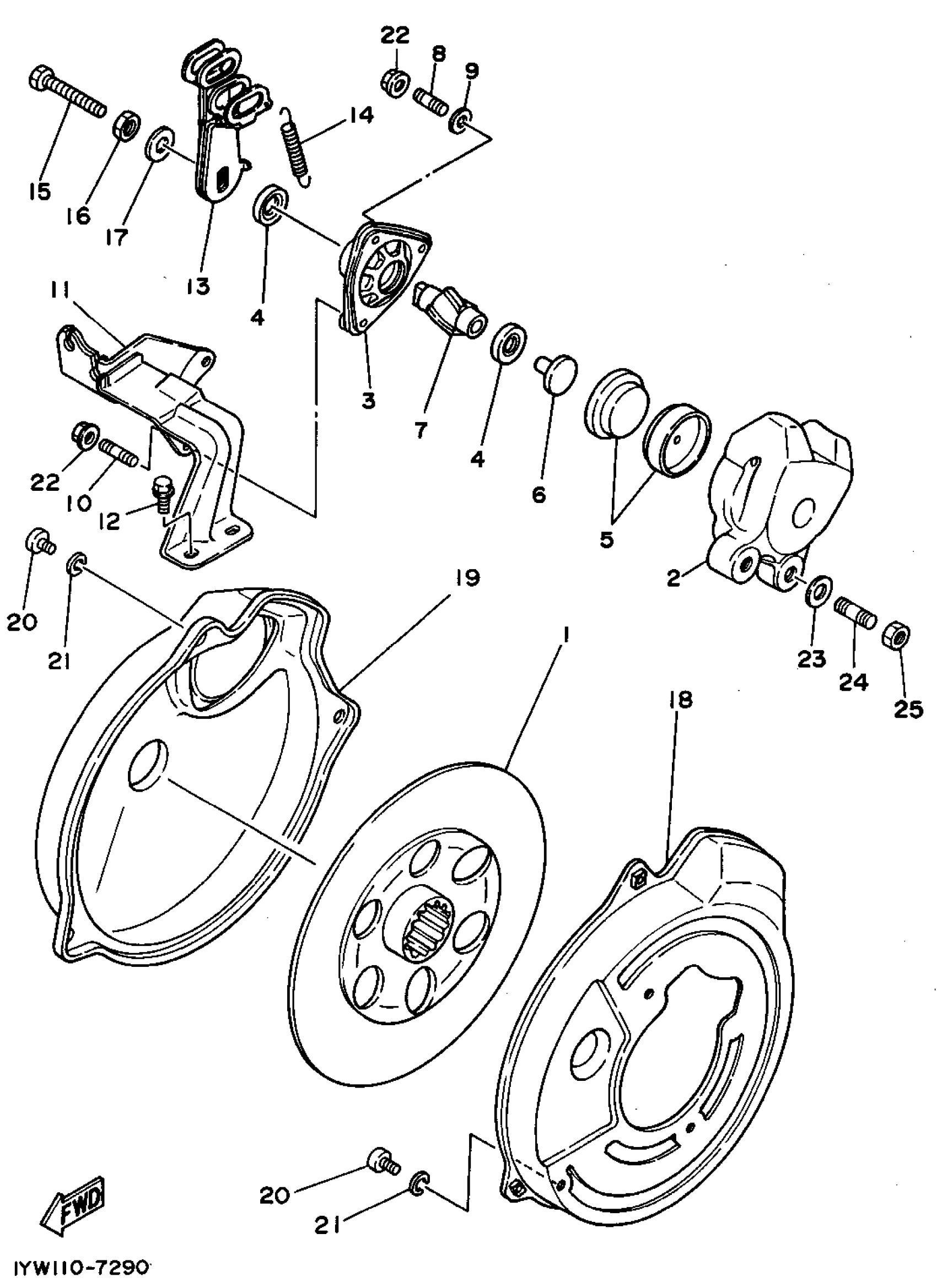

Yamaha YFM350ERG (MOTO-4) 1995 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

21V-25711-01-00

Unavailable

2

BODY CALIPER 1

24W-25731-01-00

Unavailable

3

BODY, CALIPER 2 (21V-25741-01)

21V-25741-02-00

Unavailable

4

OIL SEAL (3X3)

93102-15212-00

$9.49

5

BRAKE PAD KIT

2HR-W0045-09-00

$44.99

6

PLATE, BACK UP

J45-25733-00-00

Unavailable

7

CAM

29U-25728-01-00

Unavailable

8

BOLT, STUD(1JK)

90116-06475-00

$8.49

9

WASHER(6TA)

92907-06200-00

$8.49

10

BOLT, STUD 3

95617-06625-00

$8.49

11

HOLDER, ADJUSTING

1YW-26381-00-00

Unavailable

12

BOLT, FLANGE

95817-08012-00

$5.49

13

LEVER, BRAKE

1YW-25726-00-00

Unavailable

14

SPRING, TENSION (3X3)

90506-16215-00

$3.98

15

BOLT, HEAD WITH HOLE(71G)

90103-08026-00

$11.49

16

NUT(6TA)

95337-08600-00

Unavailable

17

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

18

COVER 1

29U-25715-00-00

Unavailable

19

COVER 2

29U-25716-00-00

Unavailable

20

SCREW, PAN

98507-06010-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

23

WASHER, PLATE (29U)

90201-104G0-00

Unavailable

24

BOLT, STUD

95617-10618-00

Unavailable

25

NUT(6TD)

95337-10600-00

Unavailable
