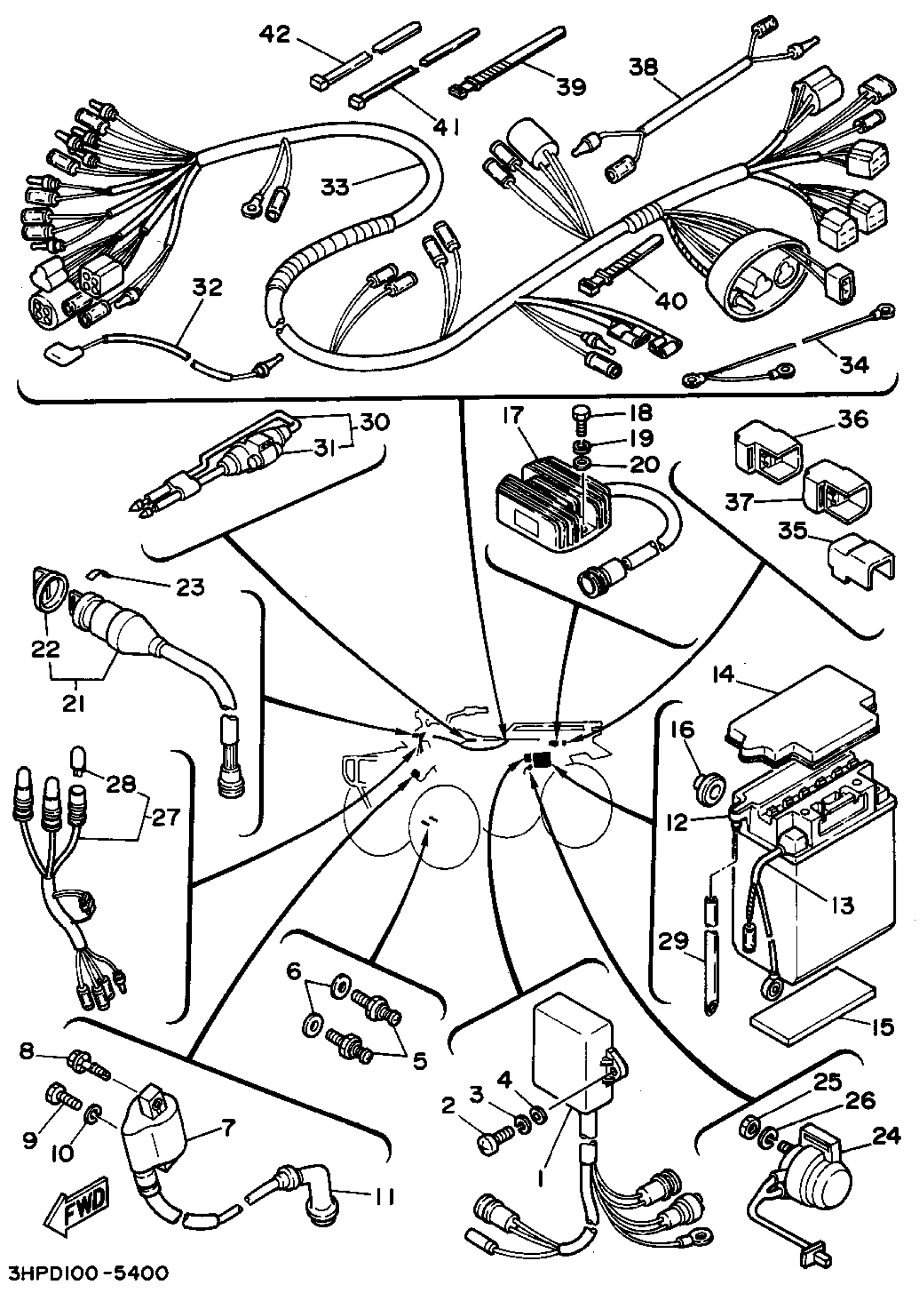

Yamaha YFM350ERG (MOTO-4) 1995 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

3HN-85540-30-00

Unavailable

SCREW, PAN

98517-06020-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

GASKET (5R6)

90430-10171-00

$3.18

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

BOLT (21V)

90109-06723-00

$8.49

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92907-06100-00

$4.25

PLUG CAP ASSY

3NS-82370-00-00

$37.99

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

WIRE, PLUS LEAD

1YW-82115-00-00

$61.99

COVER, BATTERY

24W-82129-00-00

Unavailable

SEAT, BATTERY

5Y1-82122-00-00

$7.99

PAD, BATTERY

371-82121-00-00

Unavailable

RECTIFIER & REGULATOR ASSEMBLY

4GB-81960-00-00

Unavailable

BOLT, HEXAGON

97017-06016-00

Unavailable

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

LABEL

29U-83585-10-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT(JN5)

95317-06700-00

Unavailable

WASHER, SPRING

92907-06100-00

$4.25

PILOT LIGHT ASSEMBLY

2HT-83530-00-00

Unavailable

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

HOSE (L1500)

90445-084J0-00

Unavailable

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

FUSE (30A)

705-82151-01-00

Unavailable

WIRE, LEAD

3HN-82541-00-00

Unavailable

WIRE HARNESS ASSEMBLY

3HP-82590-10-00

Unavailable

WIRE, LEAD

1YW-82507-00-00

Unavailable

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

WIRE, LEAD

59V-82541-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

CLAMP(MF1)

90464-15152-00

Unavailable

BAND

1UA-82591-00-00

Unavailable
