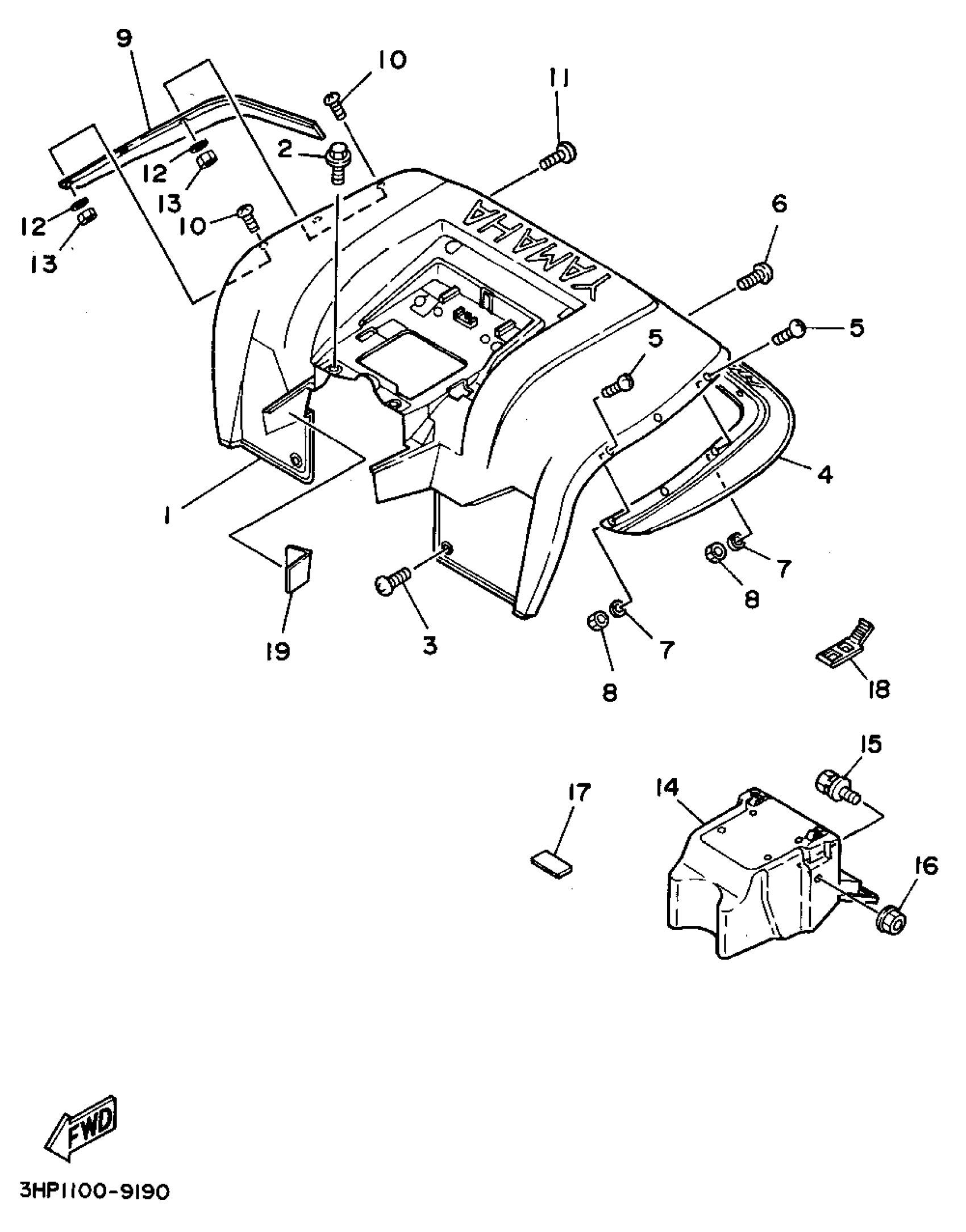

Yamaha YFM350ERF (MOTO-4) 1994 REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR

3HN-21611-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

SCREW, BINDING (8J0)

90154-05005-00

$4.73

4

FLAP

2HR-21621-00-00

Unavailable

5

SCREW, BINDING (8J0)

90154-05005-00

$4.73

6

SCREW, BINDING (8R1)

90154-05011-00

$4.29

7

WASHER, PLATE 8067717800

90201-05029-00

$8.49

8

NUT, NYLON

95707-05300-00

$4.24

9

FLAP

2HR-21691-00-00

Unavailable

10

SCREW, BINDING (8J0)

90154-05005-00

$4.73

11

SCREW, BINDING (8R1)

90154-05011-00

$4.29

12

WASHER, PLATE 8067717800

90201-05029-00

$8.49

13

NUT, NYLON

95707-05300-00

$4.24

14

BOX COMP.

1YW-2160A-20-00

Unavailable

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

NUT, W/ WASHER

95707-06600-00

Unavailable

17

DAMPER

1YW-21638-00-00

Unavailable

18

BAND

59V-21646-00-00

Unavailable

19

INSULATOR,SIDE COVER

1YW-2174A-10-00

Unavailable
