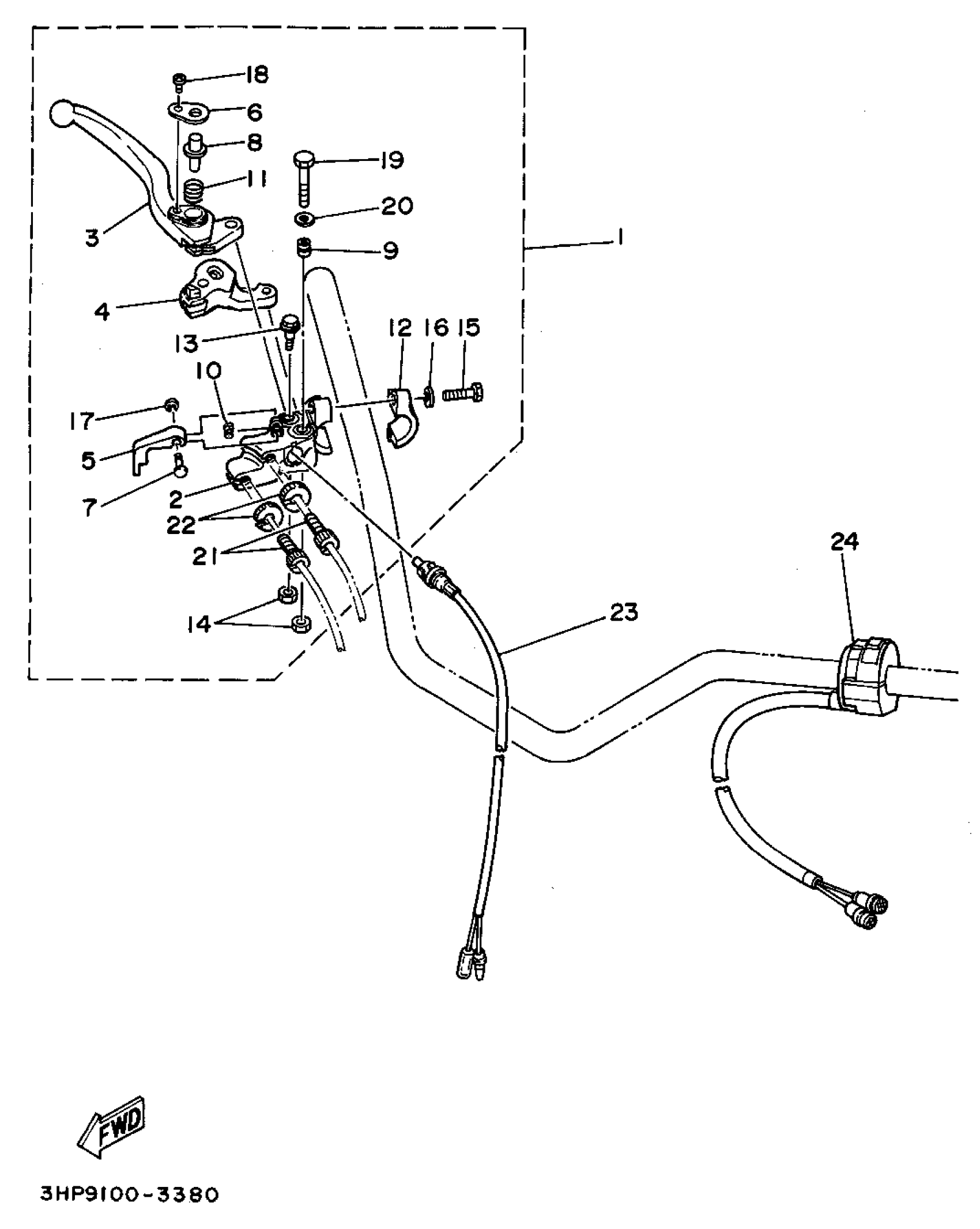

Yamaha YFM350ERF (MOTO-4) 1994 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSEMBLY (RIGHT)

3GH-82920-20-00

Unavailable

2

. HOLDER, LEVER 2

3GH-82921-01-00

Unavailable

3

LEVER 2

3GH-83922-10-00

Unavailable

4

. LEVER 1

3GH-83912-10-00

Unavailable

5

. LEVER, LOCK

3GH-83965-00-00

Unavailable

6

COVER

1UY-83935-10-00

$3.90

7

PIN, LOCK 1

3FA-83967-00-00

$9.99

8

PIN, LOCK 1

1UY-83967-10-00

Unavailable

9

COLLAR, LEVER 1

1UY-83913-00-00

$7.99

10

SPRING, RETURN

3GH-83966-00-00

Unavailable

11

SPRING

1UY-83962-00-00

$2.34

12

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

13

BOLT(3GB)

90109-061F3-00

$7.49

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92907-06100-00

Unavailable

17

RING, SNAP

3FA-26466-00-00

Unavailable

18

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

19

BOLT(8BC)

97017-06040-00

Unavailable

20

WASHER(6TA)

92907-06200-00

Unavailable

21

BOLT

90123-08002-00

Unavailable

22

NUT

90179-08030-00

Unavailable

23

FRONT STOP SWITCH ASSY

1YW-83980-00-00

Unavailable

24

SWITCH, HANDLE 3

59V-83973-09-00

Unavailable
