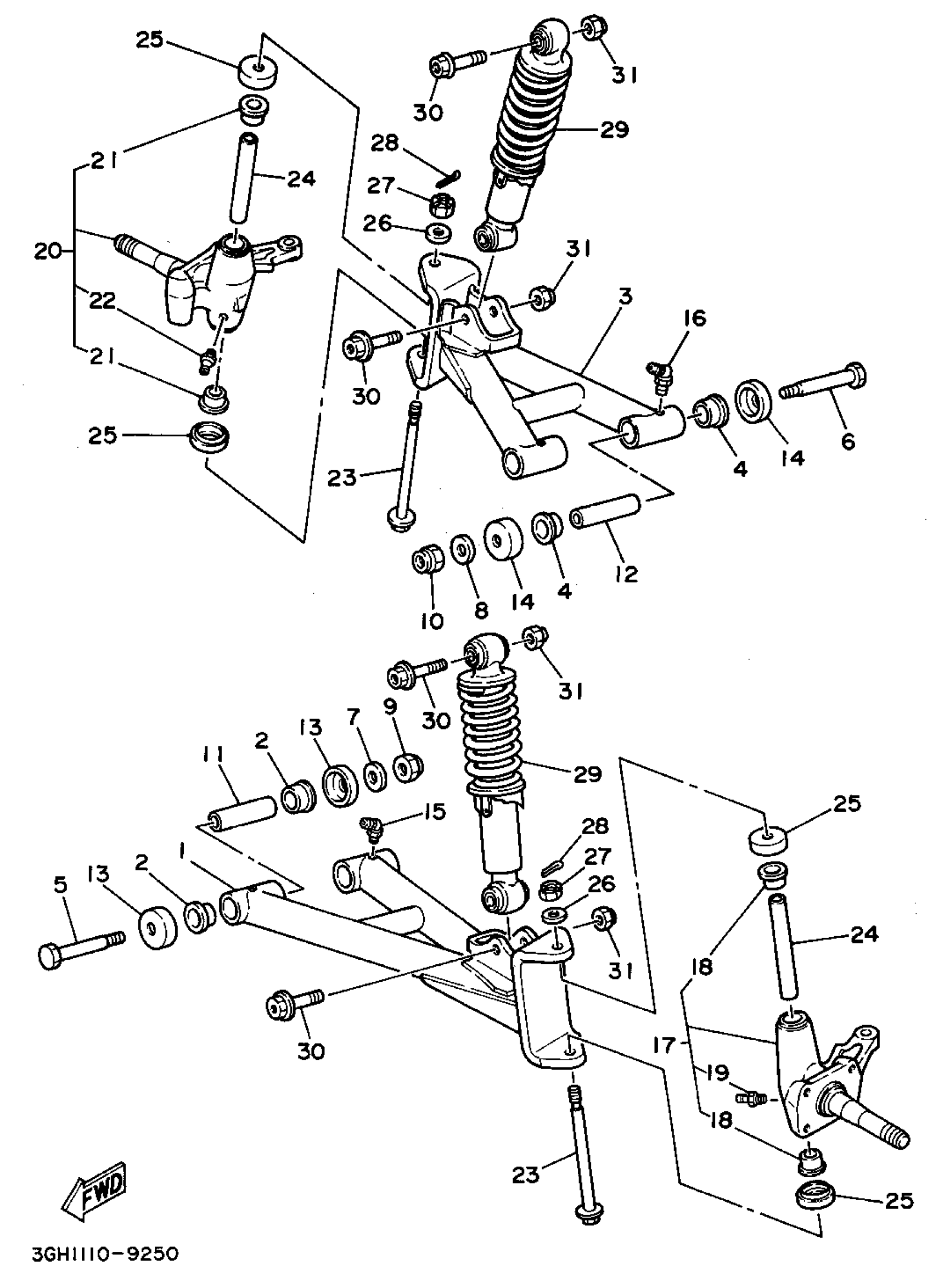

Yamaha YFM350ERF (MOTO-4) 1994 FRONT SUSPENSION - WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

3GH-23570-00-00

Unavailable

2

BUSH 1

15A-22123-00-00

$24.92

3

FRONT LOWER ARM COMP. (RIGHT)

3GH-23580-00-00

Unavailable

4

BUSH 1

15A-22123-00-00

$24.92

5

BOLT

90101-10656-00

Unavailable

6

BOLT

90101-10656-00

Unavailable

7

WASHER, PLATE (35T)

90201-122H1-00

$6.35

8

WASHER, PLATE (35T)

90201-122H1-00

$6.35

9

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

10

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

11

COLLAR(59V)

90387-124M4-00

$11.30

12

COLLAR(59V)

90387-124M4-00

$11.30

13

COVER, THRUST 1

401-22128-01-00

$23.80

14

COVER, THRUST 1

401-22128-01-00

$23.80

15

NIPPLE, GREASE

93700-06005-00

$10.76

16

NIPPLE, GREASE

93700-06005-00

$10.76

17

KNUCKLE,STEERING 1

3GH-23510-01-00

Unavailable

18

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

19

NIPPLE, GREASE

93700-06M03-00

$7.40

20

STEERING KNUCKLE COMP. (RIGHT)

3GH-23520-01-00

Unavailable

21

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

$7.40

23

BOLT, WASHER BASED(59V)

90105-10389-00

Unavailable

24

SPACER

2NL-23448-00-00

Unavailable

25

COVER, THRUST 1

3JN-23517-00-00

Unavailable

26

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

27

NUT 3532518200

90171-10004-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

SHOCK ABSORBER ASSEMBLY

3HP-23350-00-33

Unavailable

30

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

31

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61
