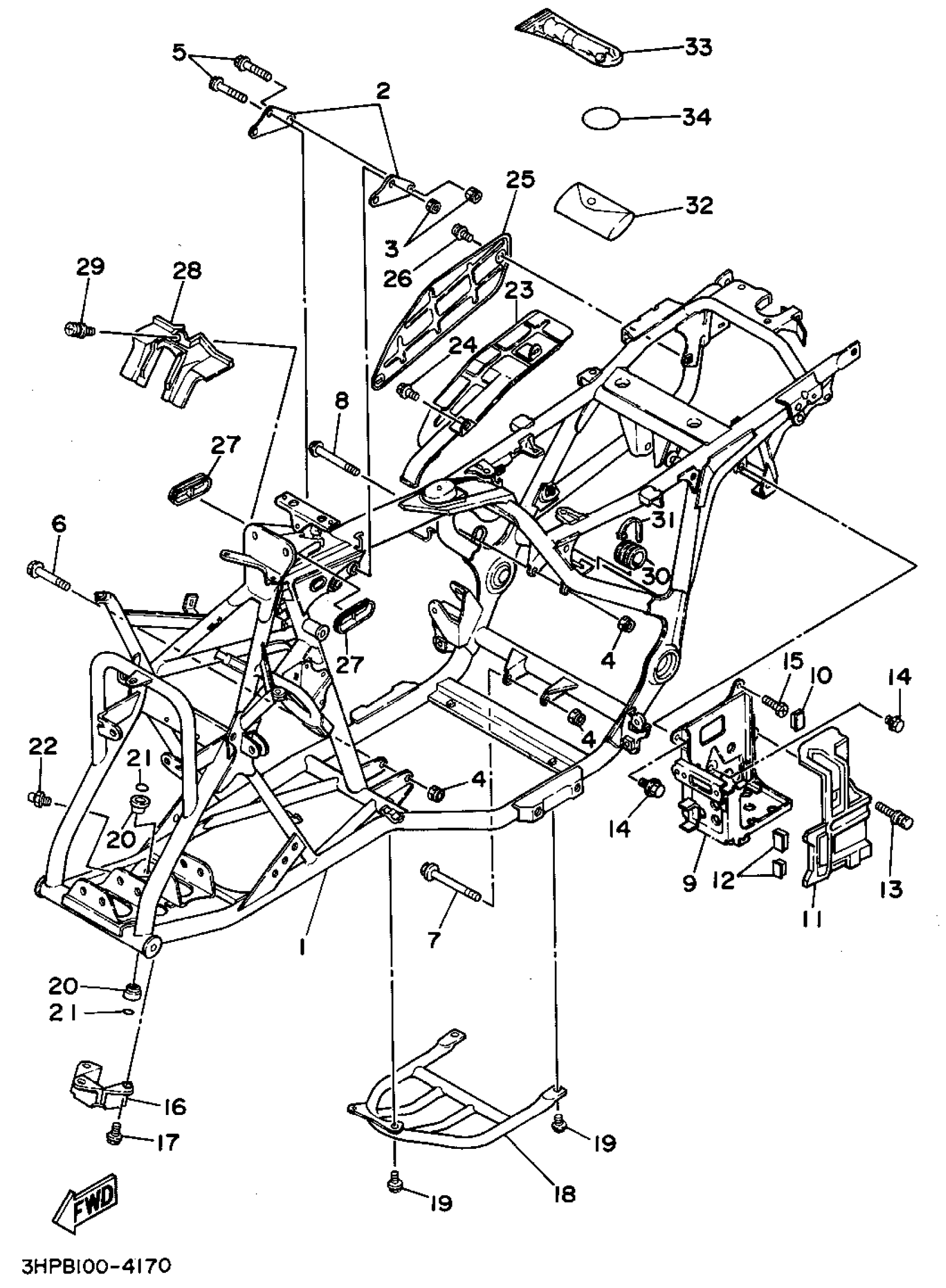

Yamaha YFM350ERF (MOTO-4) 1994 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3HP-21110-10-33

Unavailable

2

STAY, ENGINE 2

29U-21315-00-00

Unavailable

3

NUT, SELF-LOCKING

90185-08169-00

$8.49

4

NUT, SELF-LOCKING

90185-10170-00

$9.49

5

BOLT, FLANGE

95817-08055-00

$4.21

6

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

7

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

8

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

9

BOX COMP.

3HP-21170-00-00

Unavailable

10

COVER 2

3FC-2139R-00-00

Unavailable

11

BOX

24W-21245-00-00

Unavailable

12

COVER 2

3FC-2139R-00-00

Unavailable

13

BOLT, WITH WASHER

90119-06152-00

$7.49

14

BOLT, FLANGE

95817-06012-00

$1.43

15

SCREW (5G3)

90153-06034-00

$7.49

16

GUARD, ENGINE 1

59V-2147A-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

$1.43

18

PROTECTOR, ENGINE

1YW-21471-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

$1.43

20

BUSH, SOLID (J22)

90381-15040-00

Unavailable

21

O-RING (22U)

93210-15566-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

COVER, REAR FENDER 3

1YW-2163F-00-00

Unavailable

24

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

25

COVER, REAR FENDER 2

1YW-2163E-00-00

Unavailable

26

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

27

GUIDE, AIR

52H-2137Y-00-00

Unavailable

28

COVER

59V-2117F-01-00

Unavailable

29

SCREW, WITH WASHER(52W)

90159-05121-00

Unavailable

30

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

TOOL KIT

3GH-28100-00-00

Unavailable

33

GAUGE, AIR

1NV-2811A-01-00

Unavailable

34

O-RING (102)

93210-41041-00

Unavailable
