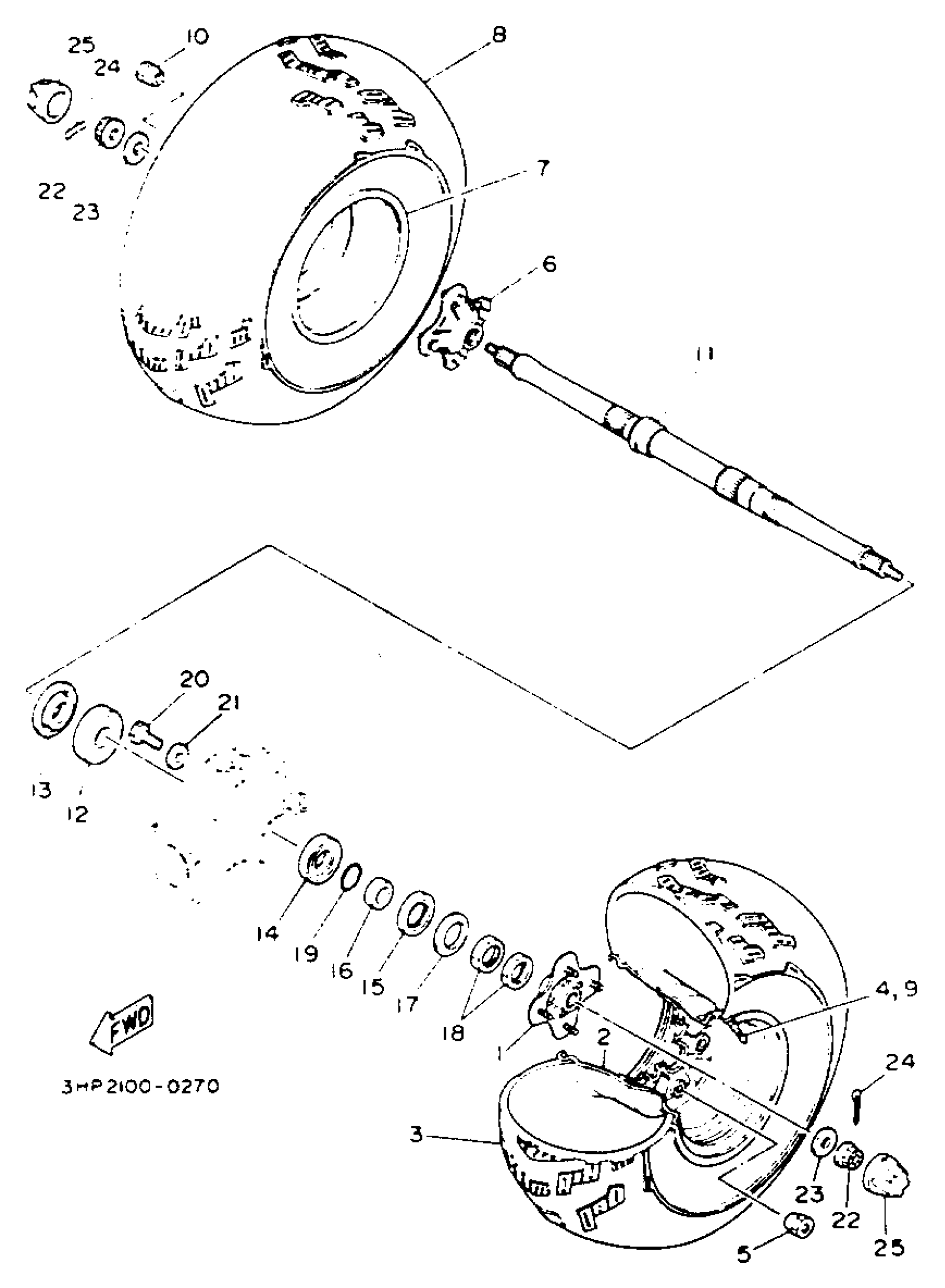

Yamaha YFM350ERE (MOTO-4) 1993 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

2HR-25383-01-00

$159.99

2

REAR WHEEL COMP.

3JN-25390-00-35

Unavailable

3

AT25X12-9* BS DH04B DIRTHOOKS

94112-094W3-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

NUT(2HR)

90179-10540-00

$5.60

6

COLLAR, WHEEL

2HR-25383-01-00

$159.99

7

REAR WHEEL COMP.

3JN-25390-00-35

Unavailable

8

AT25X12-9* BS DH04B DIRTHOOKS

94112-094W3-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

NUT(2HR)

90179-10540-00

$5.60

11

AXLE, WHEEL

3GH-25381-00-00

Unavailable

12

BEARING (24W)

93399-99913-00

Unavailable

13

COVER, HUB DUST

2HR-25367-00-00

Unavailable

14

BEARING

93306-00809-00

Unavailable

15

OIL SEAL(1YW)

93102-46377-00

$24.99

16

COLLAR, AXLE

24W-25386-00-00

Unavailable

17

COVER, HUB DUST

1YW-25367-00-00

Unavailable

18

NUT

90170-40387-00

Unavailable

19

O-RING

93210-40740-00

Unavailable

20

BOLT(6TD)

97017-10025-00

Unavailable

21

WASHER, PLATE

92990-10600-00

Unavailable

22

NUT, CASTLE

90171-16001-00

Unavailable

23

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable

25

CAP, WHEEL

52H-2512A-00-00

Unavailable
