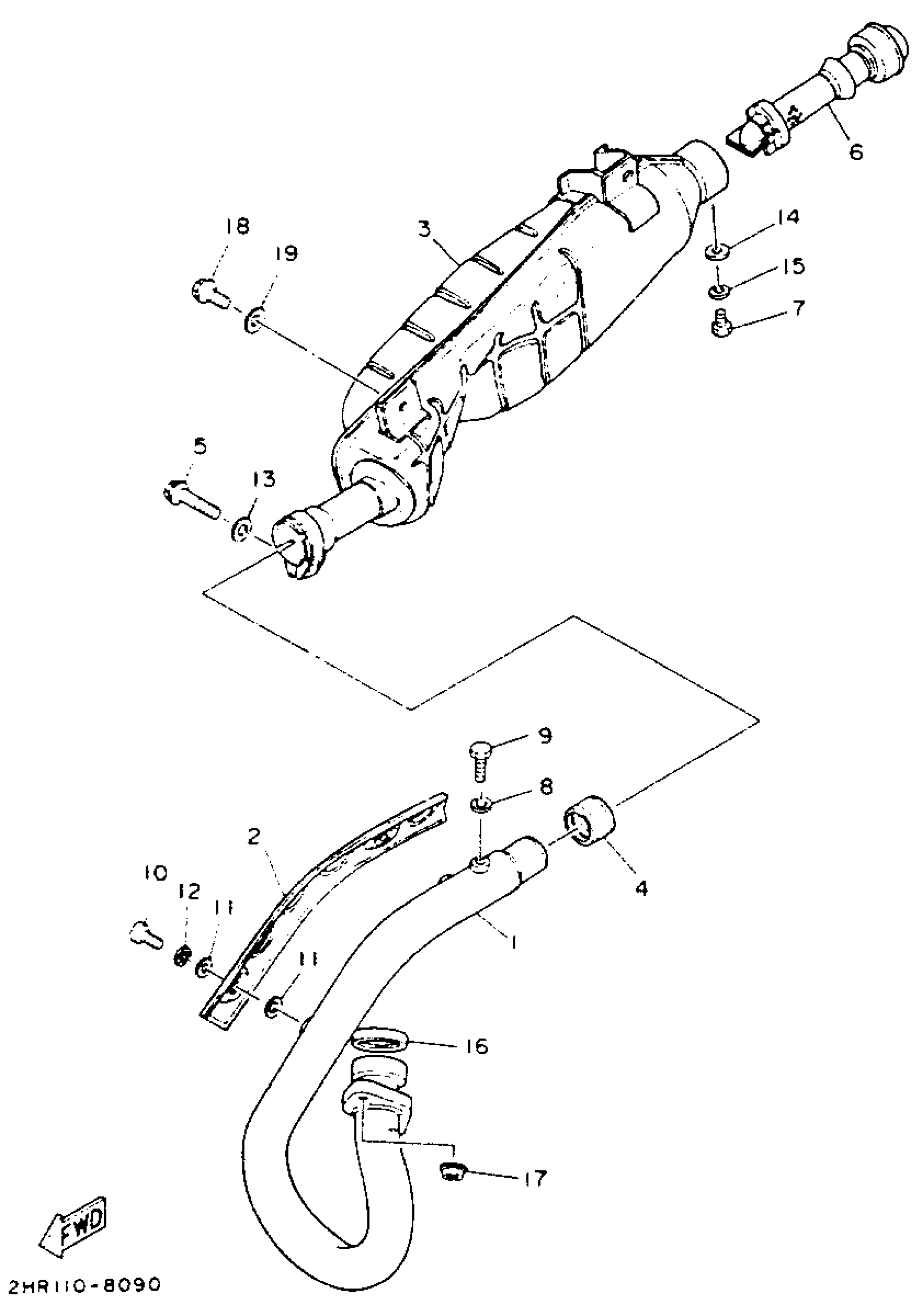

Yamaha YFM350ERE (MOTO-4) 1993 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1YW-14611-02-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

3

MUFFLER 1

1YW-14711-02-00

Unavailable

4

GASKET, MUFFLER

3YF-14714-00-00

$36.99

5

BOLT, HEXAGON

97017-08025-00

$10.49

6

PIPE, OUTLET

59V-14752-00-00

$153.99

7

BOLT(3JP)

97017-06010-00

$3.76

8

WASHER(6TA)

92907-06600-00

$2.72

9

BOLT (11T)

90101-06576-00

$8.49

10

SCREW, BINDING

98907-06010-00

$1.65

11

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

12

WASHER, WAVE(3RW)

90206-06090-00

$8.49

13

WASHER(6TA)

92907-08600-00

$3.03

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

WASHER, SPRING

92995-06100-00

Unavailable

16

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable

17

NUT (1AE)

90179-06500-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

19

WASHER (853)

90201-08326-00

Unavailable
