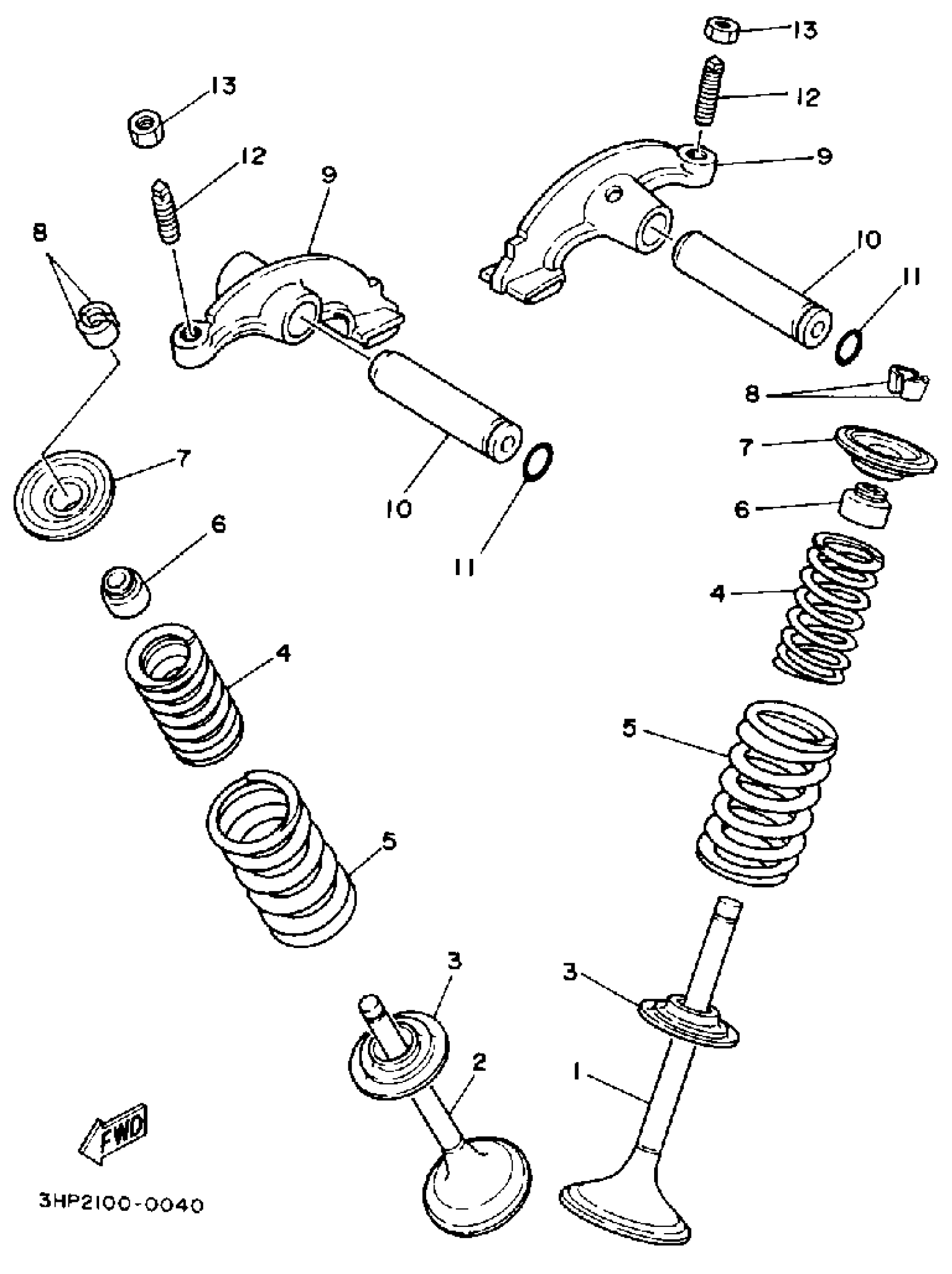

Yamaha YFM350ERD (MOTO-4) 3HP7 1992 VALVE Diagram

VALVE, INTAKE

3Y1-12111-01-00

Unavailable

VALVE, EXHAUST

3Y1-12121-01-00

$90.89

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.67

SPRING, VALVE INNER

1UY-12113-01-00

$17.11

SPRING, VALVE OUTER

1UY-12114-01-00

$21.42

SEAL, VALVE STEM OIL

1J7-12119-01-00

$17.47

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.43

LOCK, VALVE SPRING

1J7-12118-00-00

$6.43

ARM, VALVE ROCKER

3GD-12151-00-00

$51.46

SHAFT, ROCKER

3Y1-12156-00-00

$60.32

O-RING (1J7)

93210-09350-00

$5.82

SCREW, VALVE ADJUSTING

31G-12159-02-00

$8.35

NUT, LOCK

31G-12158-00-00

$5.69
