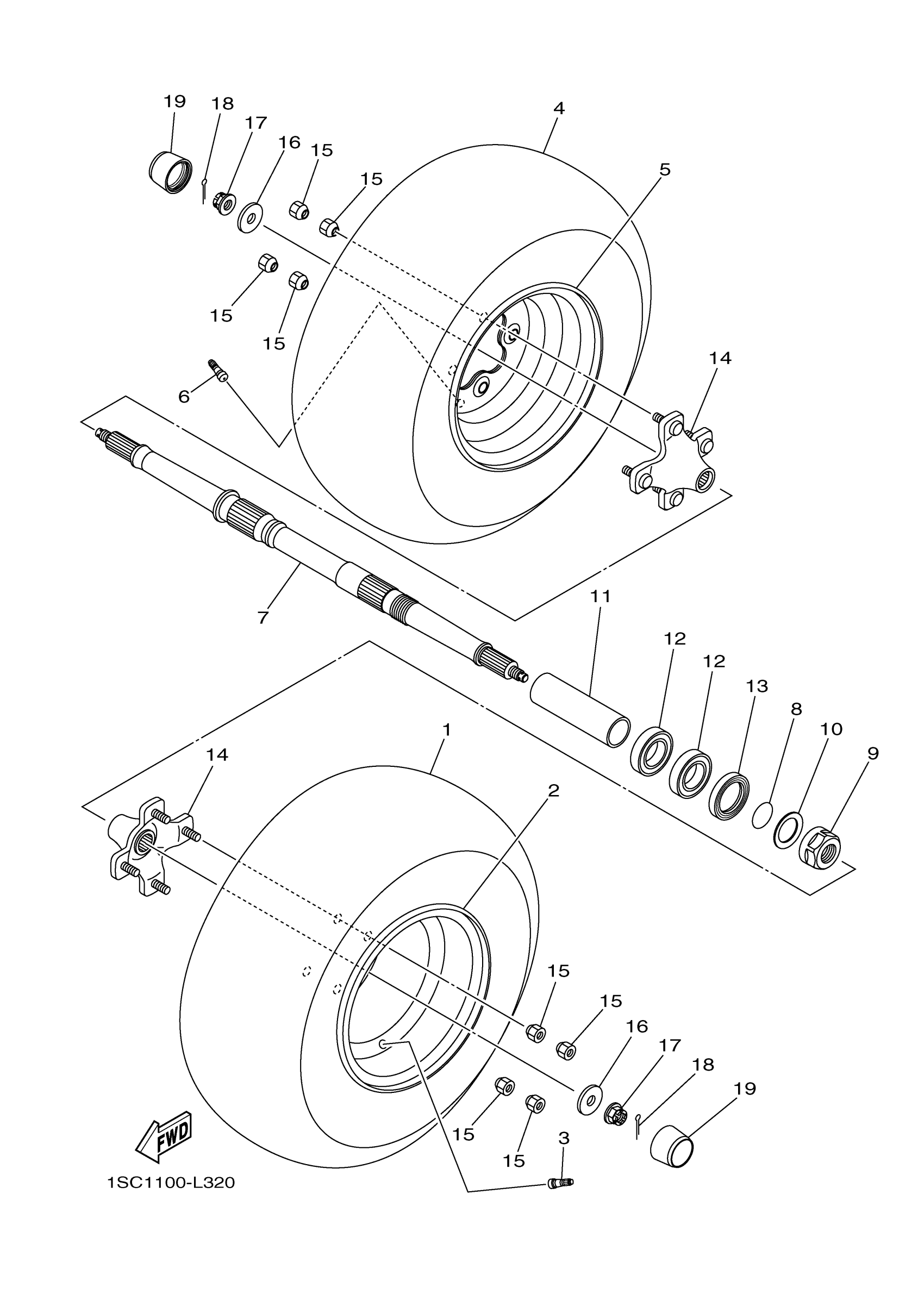

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 REAR WHEEL Diagram

#

Description
Price

1

TIRE (AT22 X 10-9 M920)

1SC-F53P3-00-00

Unavailable

2

REAR WHEEL COMP.

1SC-F5390-00-00

Unavailable

3

AIR VALVE ASSY

43D-F5170-00-00

Unavailable

4

TIRE (AT22 X 10-9 M920)

1SC-F53P3-00-00

Unavailable

5

REAR WHEEL COMP.

1SC-F5390-00-00

Unavailable

6

AIR VALVE ASSY

43D-F5170-00-00

Unavailable

7

AXLE, WHEEL

1SC-F5381-00-00

Unavailable

8

O-RING

1SC-F4649-00-00

$3.63

9

NUT, AXLE

1SC-F5382-00-00

Unavailable

10

WASHER, CONICAL SPRING

1SC-F581R-00-00

$4.87

11

SPACER, BEARING

1SC-F5317-00-00

$55.81

12

BEARING

1SC-F53N4-00-00

$47.11

13

RUBBER, BUSHING

1SC-F5975-00-00

$13.94

14

COLLAR, WHEEL

1SC-F5383-00-00

$129.00

15

NUT

1SC-F1839-00-00

$3.43

16

WASHER 1

1SC-F2243-00-00

Unavailable

17

NUT, AXLE

43D-F5382-00-00

Unavailable

18

PIN, COTTER(6L5)

91490-25030-00

Unavailable

19

CAP, WHEEL(REAR)

1SC-F532A-00-00

Unavailable
