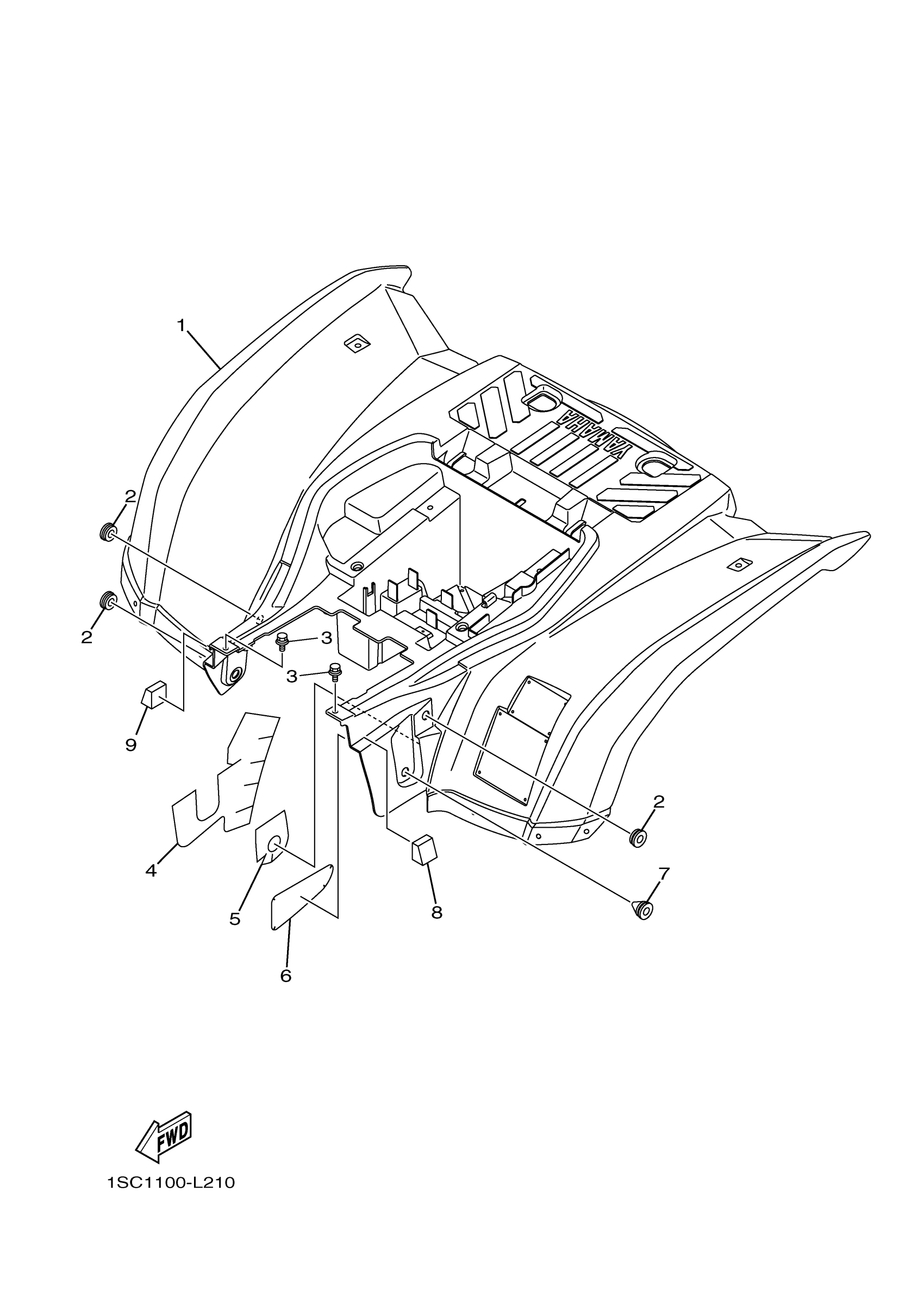

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY. (PASTEL DEEP GREEN)

1SC-F1600-00-00

$308.93

2

GROMMET

1SC-F1719-00-00

$2.53

3

BOLT 2

1SC-F1632-00-00

$2.25

4

COVER, REAR FENDER 1

1SC-F163A-00-00

$14.42

5

COVER, REAR FENDER 2

1SC-F163E-00-00

$4.43

6

INSULATOR, SIDE COVER

1SC-F174A-00-00

$4.54

7

DAMPER

1SC-F1747-00-00

Unavailable

8

DAMPER

1SC-F1852-00-00

$4.40

9

DAMPER

1SC-F174X-00-00

$3.72
