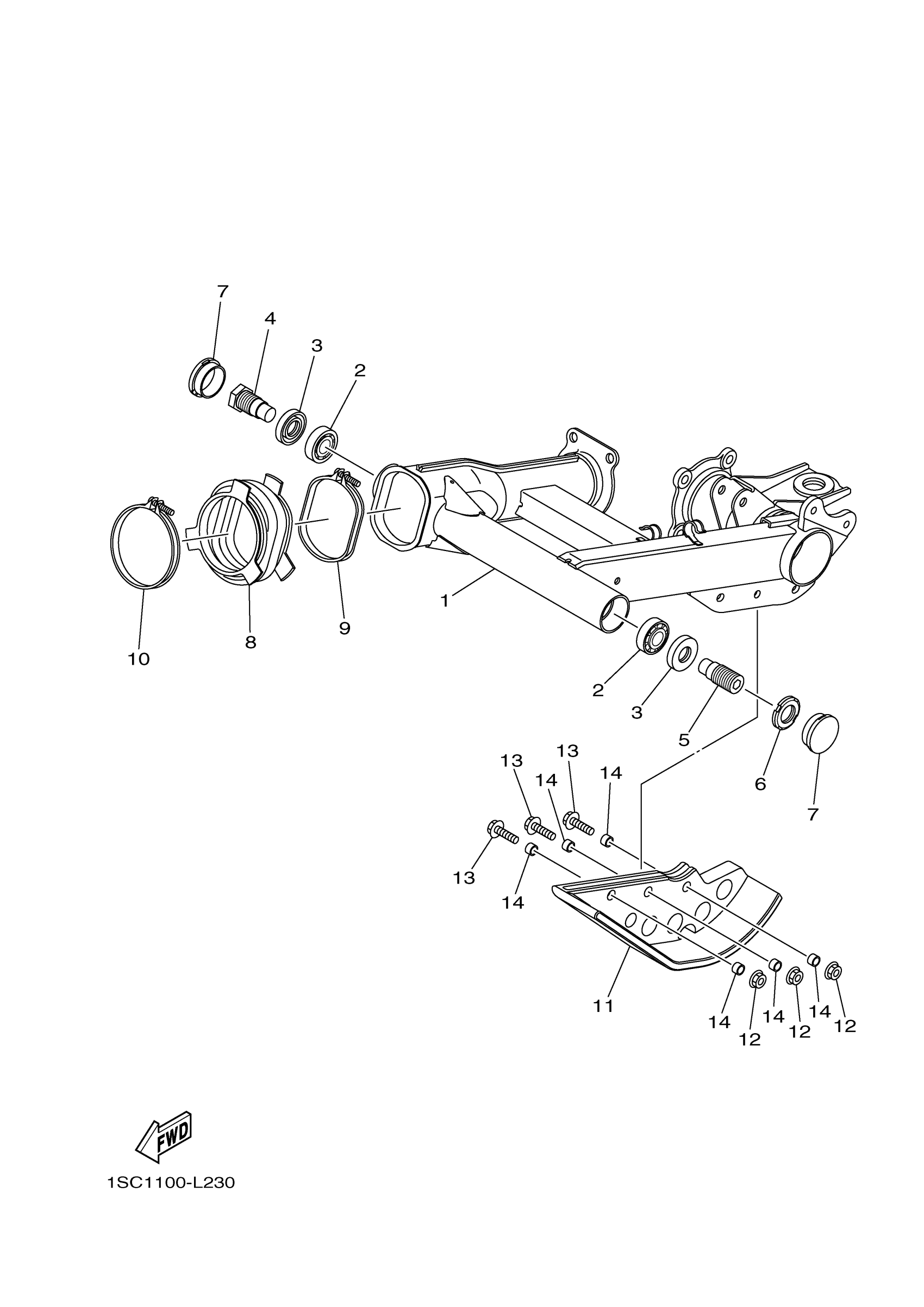

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

1SC-F2110-00-00

$717.28

2

BEARING

1SC-F2176-00-00

Unavailable

3

SEAL 1

1SC-F2358-00-00

Unavailable

4

SHAFT, PIVOT 2

1SC-F214H-00-00

$20.67

5

SHAFT, PIVOT

1SC-F2141-00-00

Unavailable

6

NUT

1SC-F2143-00-00

$7.21

7

PLUG

1SC-F2417-00-00

Unavailable

8

BOOT, RUBBER

1SC-F2189-00-00

Unavailable

9

CLAMP

1SC-F3466-00-00

Unavailable

10

CLAMP

1SC-F3467-00-00

Unavailable

11

COVER

1SC-F219X-00-00

$79.73

12

NUT,FLANGE(J10)

95702-08500-00

$0.78

13

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

14

COLLAR

1SC-F1748-00-00

$3.79
