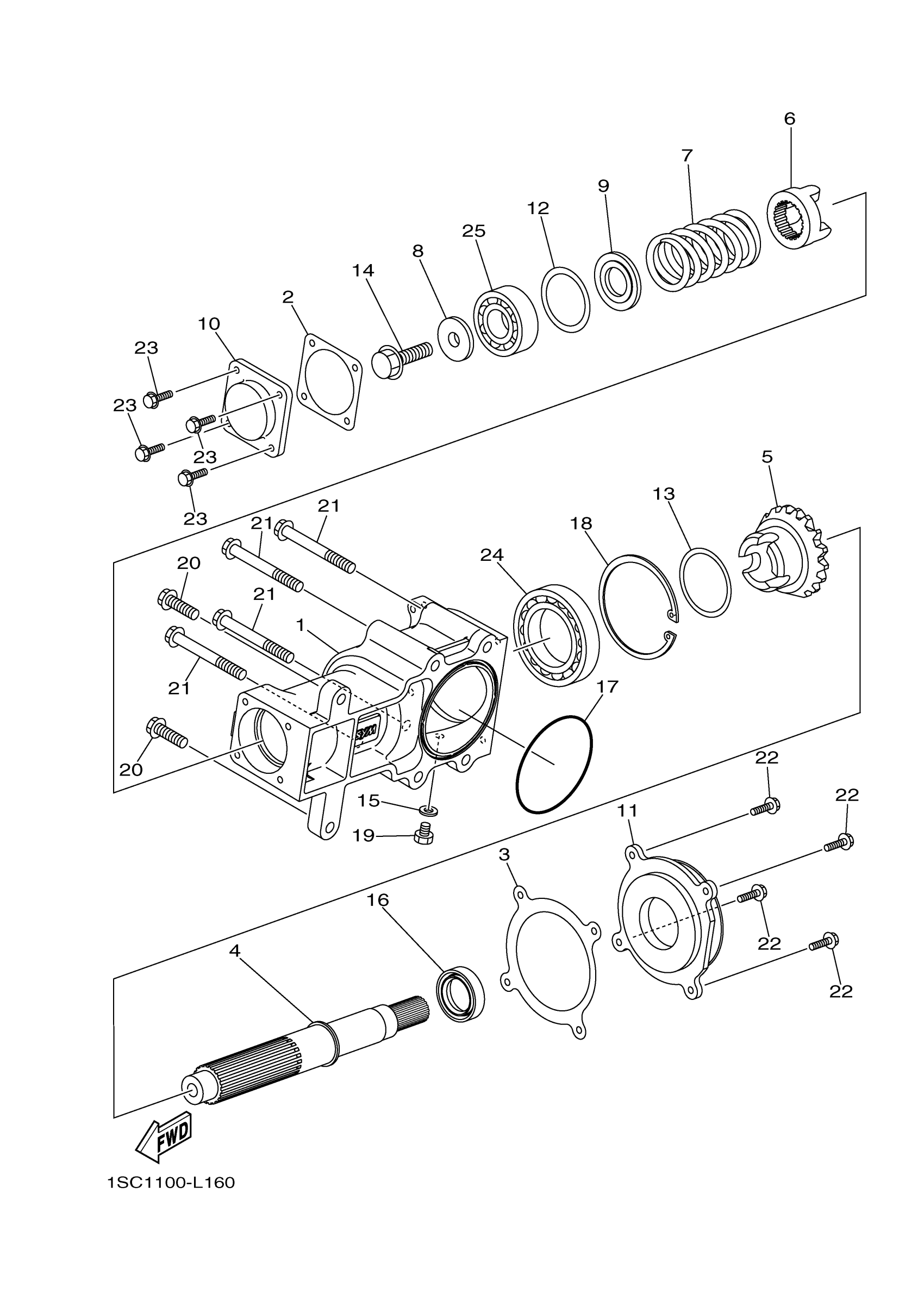

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

CASE, TRANSFER 1

1SC-E7541-00-00

Unavailable

2

GASKET

1SC-E7472-00-00

$3.90

3

GASKET, HOUSING CAP

1SC-E7519-00-00

Unavailable

4

SHAFT, 1

1SC-E761A-00-00

Unavailable

5

PINION, DRIVEN

1SC-E7552-00-00

$222.99

6

CAM, DRIVEN

1SC-E7527-00-00

Unavailable

7

SPRING, TRANSMISSION SHIFT

1SC-E7493-00-00

Unavailable

8

WASHER

1SC-E7648-00-00

Unavailable

9

WASHER, BELLEVILLE

1SC-E7658-00-00

$14.49

10

CASE, TRANSFER 2

1SC-E7542-00-00

Unavailable

11

HOUSING, BEARING

1SC-E7551-00-00

Unavailable

12

SHIM, THRUST

1SC-E7537-00-00

$3.33

13

SHIM

1SC-E7687-00-00

$2.13

14

BOLT CAP

1SC-E7617-00-00

$6.99

15

GASKET

1SC-E7818-00-00

Unavailable

16

OIL SEAL 2

1SC-E76G3-00-00

Unavailable

17

O-RING

1SC-E76F5-00-00

Unavailable

18

CIRCLIP 1

1SC-E7424-00-00

Unavailable

19

BOLT

1SC-E4777-00-00

Unavailable

20

BOLT 2

1SC-E3574-00-00

Unavailable

21

BOLT

1SC-E6777-00-00

Unavailable

22

BOLT

1SC-E4496-00-00

Unavailable

23

BOLT, COVER MOUNTING

1SC-E118E-00-00

Unavailable

24

JOURNAL

1SC-E7412-00-00

Unavailable

25

JOURNAL 2

1SC-E7413-00-00

Unavailable
