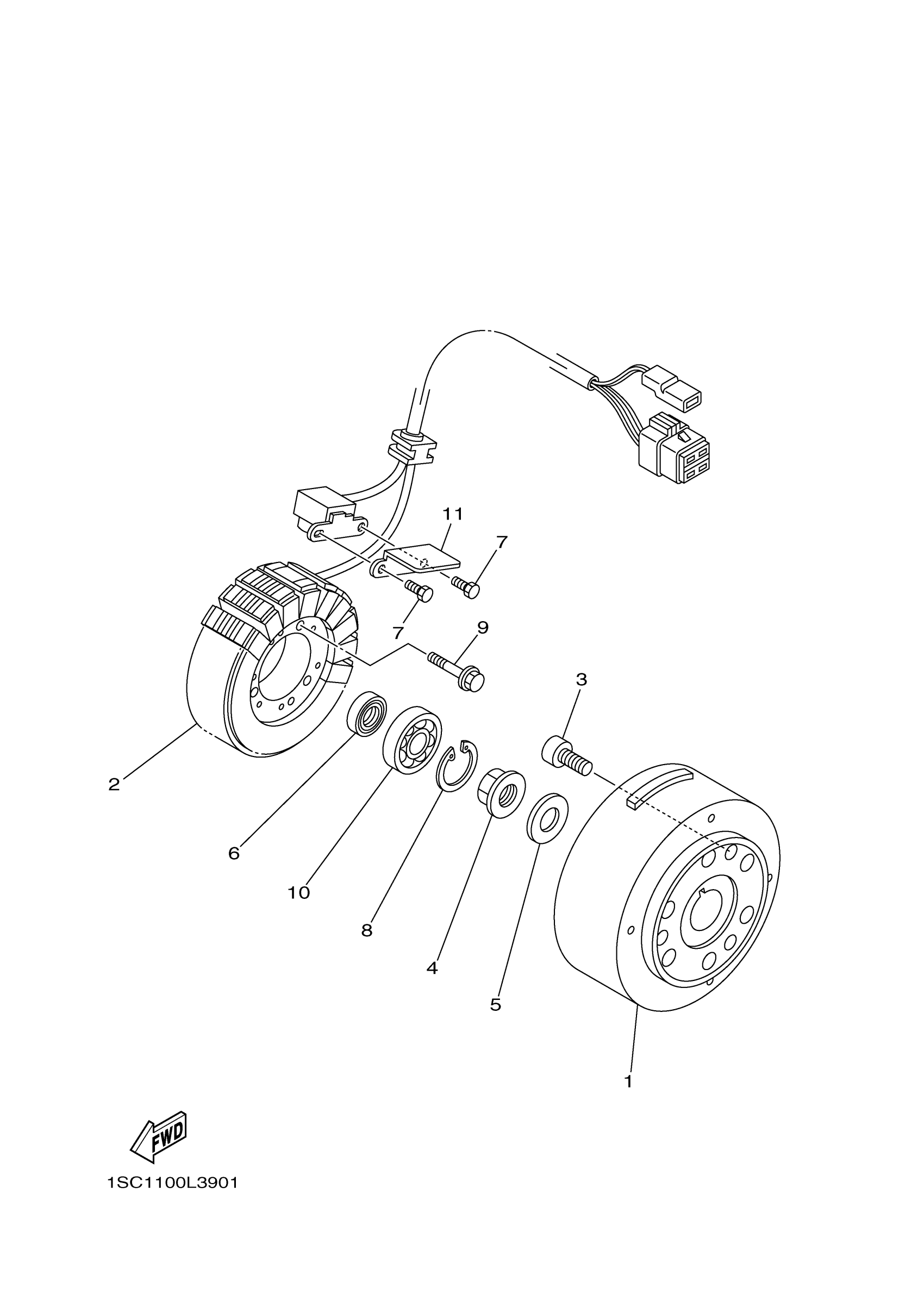

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

1SC-H1450-00-00

Unavailable

2

STATOR ASSY

1SC-H1410-00-00

$551.90

3

BOLT

1SC-H1152-00-00

$2.42

4

NUT

1SC-H1353-00-00

Unavailable

5

WASHER, PLAIN

1SC-H1162-00-00

$3.78

6

OIL SEAL

1SC-H1167-00-00

$5.78

7

BOLT

1SC-H1352-00-00

Unavailable

8

CIRCLIP

1SC-H132L-00-00

Unavailable

9

BOLT

1SC-H1252-00-00

$1.18

10

BEARING 1

1SC-H1157-00-00

$19.96

11

CLAMP 1

1SC-H1528-00-00

Unavailable
