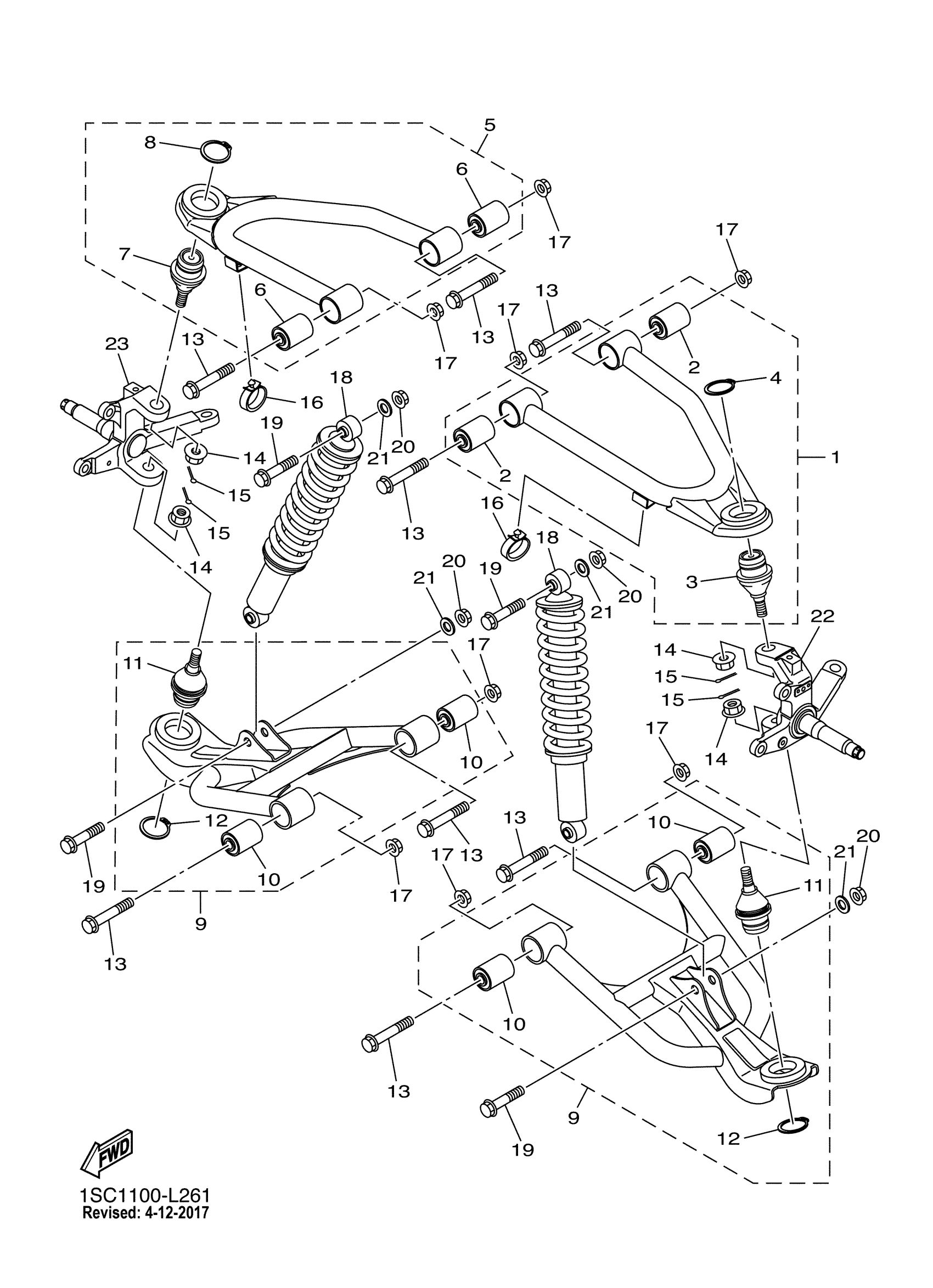

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM SUB ASSY LH

1SC-F3505-00-00

Unavailable

2

BUSH

1SC-23526-09-00

$25.99

3

BALL JOINT 1

1SC-F3549-10-00

$97.99

4

CIRCLIP

1SC-F3183-00-00

Unavailable

5

FRONT UPPER ARM SUB ASSY RH

1SC-F3506-00-00

$217.99

6

BUSH

1SC-23526-09-00

$25.99

7

BALL JOINT 1

1SC-F3549-10-00

$97.99

8

CIRCLIP

1SC-F3183-00-00

Unavailable

9

FRONT LOWER ARM SUB-ASSY (L.H)

1SC-F3507-00-00

Unavailable

10

BUSH

1SC-23526-09-00

$25.99

11

BALL JOINT 1

1SC-F3549-10-00

$97.99

12

CIRCLIP

1SC-F3183-00-00

Unavailable

13

BOLT, FLANGE

95812-10060-00

$8.49

14

NUT, SPECIAL

1SC-F3393-00-00

$10.99

15

PIN, COTTER(6L5)

91490-25030-00

$3.77

16

CLAMP 1

43D-F53N5-00-00

Unavailable

17

NUT

43D-F1839-00-00

Unavailable

18

SHOCK ABSORBER ASSY

1SC-F3350-00-00

Unavailable

19

BOLT

1SC-F3753-00-00

Unavailable

20

NUT

43D-F1839-00-00

Unavailable

21

WASHER

1SC-F3427-00-00

Unavailable

22

KNUCKLE, STEERING 1

1SC-F3511-00-00

Unavailable

23

KNUCKLE, STEERING 2

1SC-F3521-00-00

Unavailable
