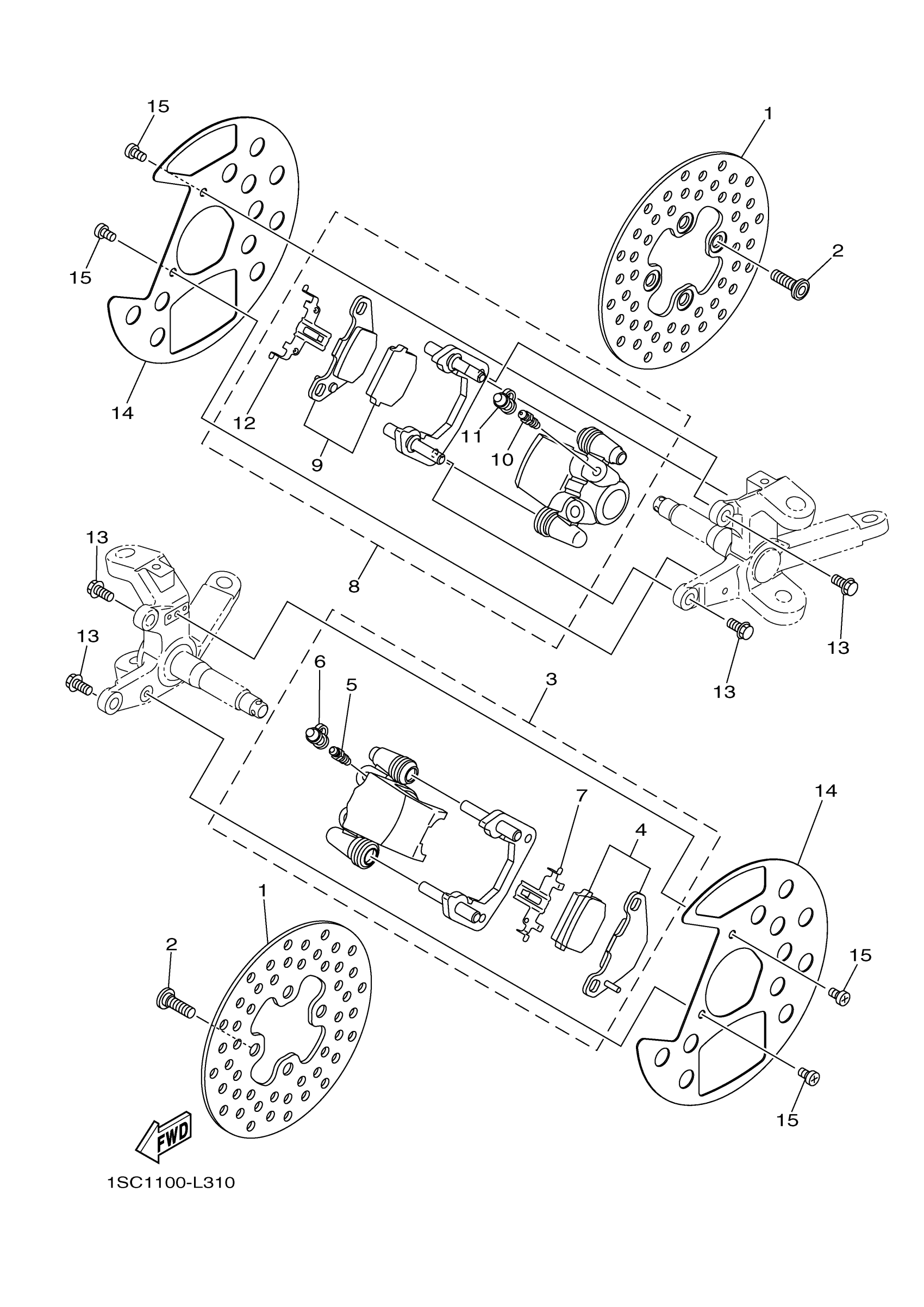

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE (LEFT)

1SC-F582T-00-00

Unavailable

2

BOLT

1SC-F4834-00-00

$6.99

3

CALIPER ASSY (LEFT)

1SC-F580T-00-00

Unavailable

4

BRAKE PAD KIT

1SC-F5805-00-00

$45.99

5

SCREW, BLEED

1SC-F319V-00-00

Unavailable

6

CAP

43D-F5825-00-00

Unavailable

7

SUPPORT, PAD

43D-F5919-00-00

$13.49

8

CALIPER ASSY (RIGHT)

1SC-F580U-00-00

Unavailable

9

BRAKE PAD KIT

1SC-F5805-00-00

$45.99

10

SCREW, BLEED

43D-F5824-10-00

Unavailable

11

CAP

43D-F5825-00-00

Unavailable

12

SUPPORT, PAD

43D-F5919-00-00

$13.49

13

BOLT

43D-F2125-10-00

Unavailable

14

RING, WHEEL 1

1SC-F514A-00-00

Unavailable

15

SCREW

43D-F8355-00-00

Unavailable
