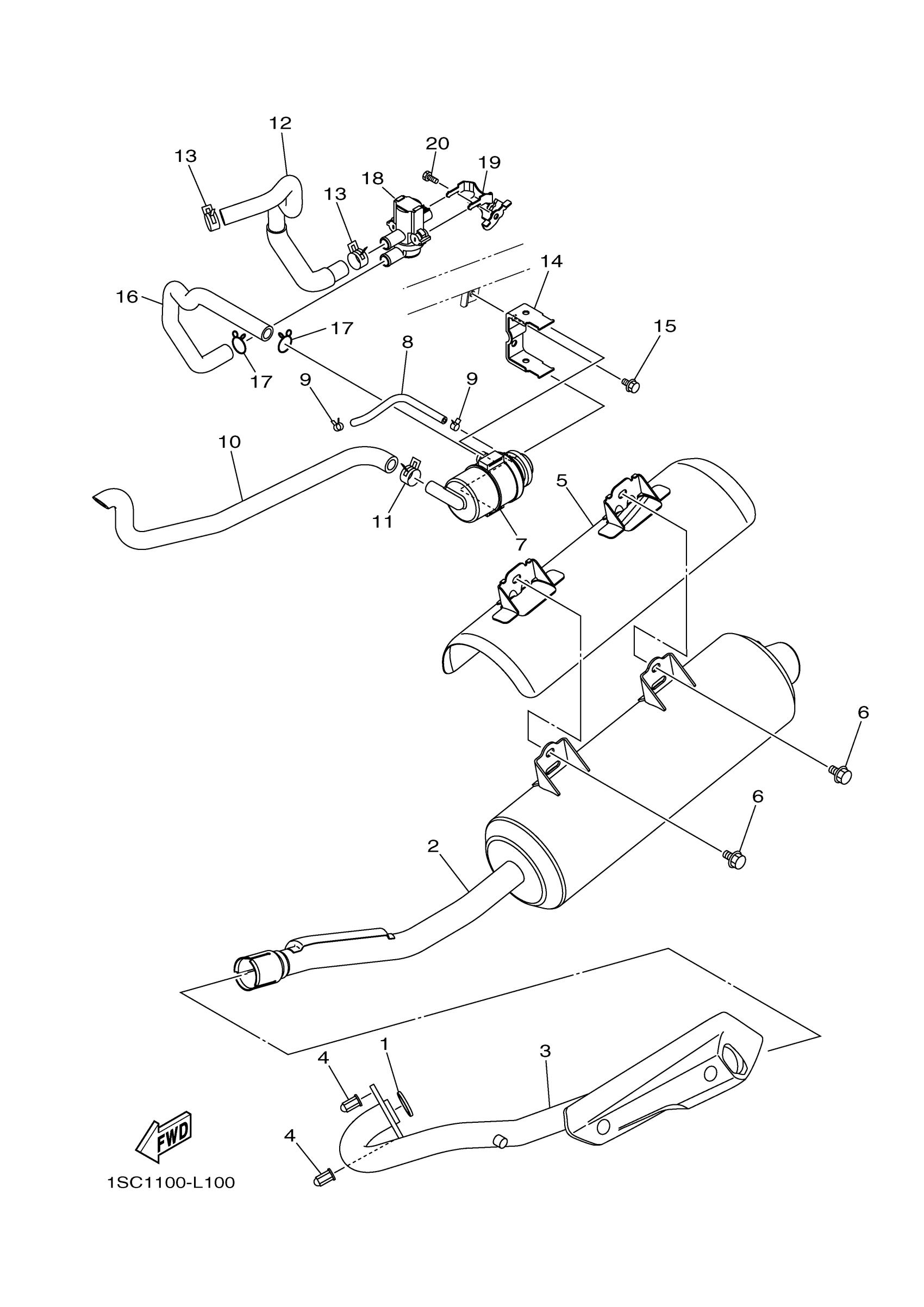

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

1SC-E4613-00-00

$13.49

2

MUFFLER 1

1SC-E4711-00-00

Unavailable

3

EXHAUST PIPE ASSY 1

1SC-E4610-00-00

Unavailable

4

NUT

1SC-E4681-00-00

$8.99

5

PROTECTOR, MUFFLER 1

1SC-E4718-00-00

Unavailable

6

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

7

AIR CUT VALVE ASSY

1SC-E4840-00-00

Unavailable

8

CONNECTING, TUBE

1SC-E481A-00-00

$5.49

9

CLAMP 1

1SC-E262K-00-00

$2.76

10

HOSE, BEND 1

1SC-E4881-00-00

Unavailable

11

CLIP

1SC-E4937-00-00

$7.99

12

HOSE, BEND 2

1SC-E4882-00-00

Unavailable

13

CLIP

1SC-E4919-00-00

$1.77

14

BRACKET

1SC-E4867-00-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

HOSE, BEND 3

1SC-E4883-00-00

Unavailable

17

CLIP

1SC-E4919-00-00

$1.77

18

AIR CUT VALVE ASSY

4B5-14840-00-00

Unavailable

19

BRACKET 2

1SC-E4868-00-00

Unavailable

20

BOLT, HOLDING

1SC-E4162-00-00

Unavailable
