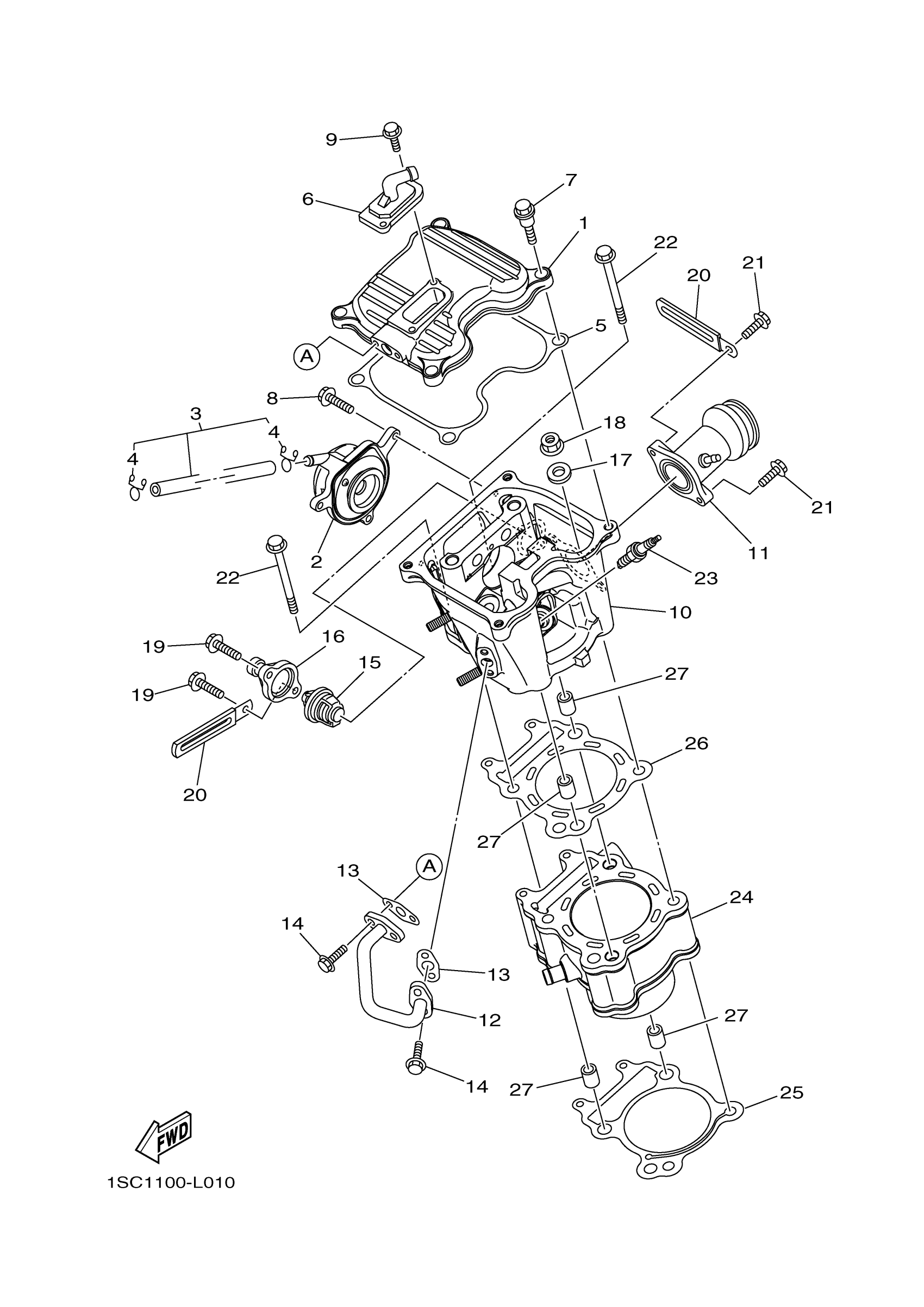

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 CYLINDER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD 1

1SC-E1191-00-00

$163.99

2

BREATHER ASSY

1SC-E1160-00-00

Unavailable

3

BREATHER PIPE ASSY

1SC-E1104-00-00

Unavailable

4

CLIP 1

1SC-E449C-00-00

$3.28

5

GASKET, HEAD COVER 1

1SC-E1193-00-00

Unavailable

6

REED VALVE ASSY

1SC-E4890-00-00

Unavailable

7

BOLT, COVER HEAD

1SC-E119E-00-00

Unavailable

8

BOLT, COVER MOUNTING

1SC-E118E-00-00

Unavailable

9

BOLT

1SC-E4496-00-00

Unavailable

10

CYLINDER HEAD ASSY

1SC-E1102-00-00

Unavailable

11

JOINT, CARBURETOR 1

1SC-E3586-00-00

Unavailable

12

PIPE 1

1SC-E4871-00-00

Unavailable

13

GASKET

1SC-E4815-00-00

Unavailable

14

BOLT, COVER MOUNTING

1SC-E118E-00-00

Unavailable

15

THERMOSTAT

1SC-E2411-00-00

Unavailable

16

COVER, THERMOSTAT

1SC-E2413-00-00

Unavailable

17

WASHER, SEALING

1SC-E1173-00-00

Unavailable

18

NUT, HOLDING

1SC-E1171-00-00

Unavailable

19

BOLT

1SC-E4496-00-00

Unavailable

20

CLAMP 2

1SC-E5484-00-00

Unavailable

21

BOLT 1

1SC-E3573-00-00

Unavailable

22

BOLT, CYLINDER HOLDING 3

1SC-E1363-00-00

Unavailable

23

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

24

CYLINDER

1SC-E1310-00-00

Unavailable

25

GASKET, CYLINDER

1SC-E1351-00-00

Unavailable

26

GASKET, CYLINDER HEAD 1

1SC-E1181-00-00

Unavailable

27

PIN, DOWEL

1SC-E5614-00-00

Unavailable
