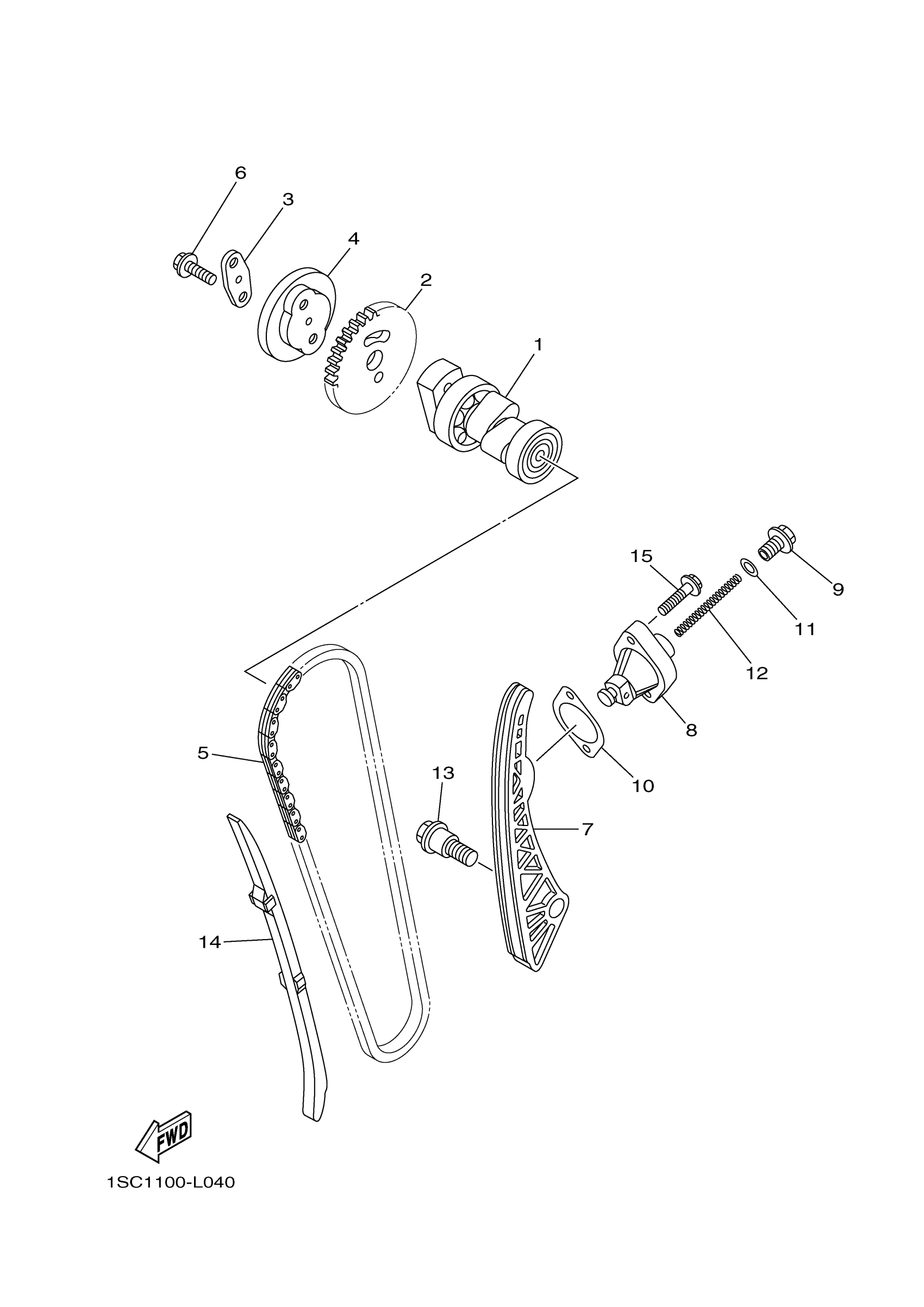

Yamaha YFM30GDR (GRIZZLY 300) 1SC51 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1SC-E2170-00-00

$300.99

2

SPROCKET, CAM CHAIN

1SC-E2176-00-00

$45.99

3

PLATE, BOLT STOPPER

1SC-E2238-00-00

$4.73

4

PLATE, BREATHER 2

1SC-E1145-00-00

$4.11

5

CHAIN ASSY

1SC-E2190-00-00

Unavailable

6

BOLT, STOPPER

1SC-E2299-00-00

$2.34

7

GUIDE, STOPPER 2

1SC-E2241-00-00

Unavailable

8

TENSIONER ASSY

1SC-E2260-00-00

Unavailable

9

PLUG

1SC-E2222-00-00

Unavailable

10

GASKET, TENSIONER CASE

1SC-E2213-00-00

$7.99

11

O-RING (1J7)

93210-09350-00

$7.49

12

SPRING

1SC-E2216-00-00

Unavailable

13

BOLT

1SC-E2228-00-00

Unavailable

14

GUIDE, STOPPER 1

1SC-E2231-00-00

Unavailable

15

BOLT 2

1SC-E22A1-00-00

$1.66
