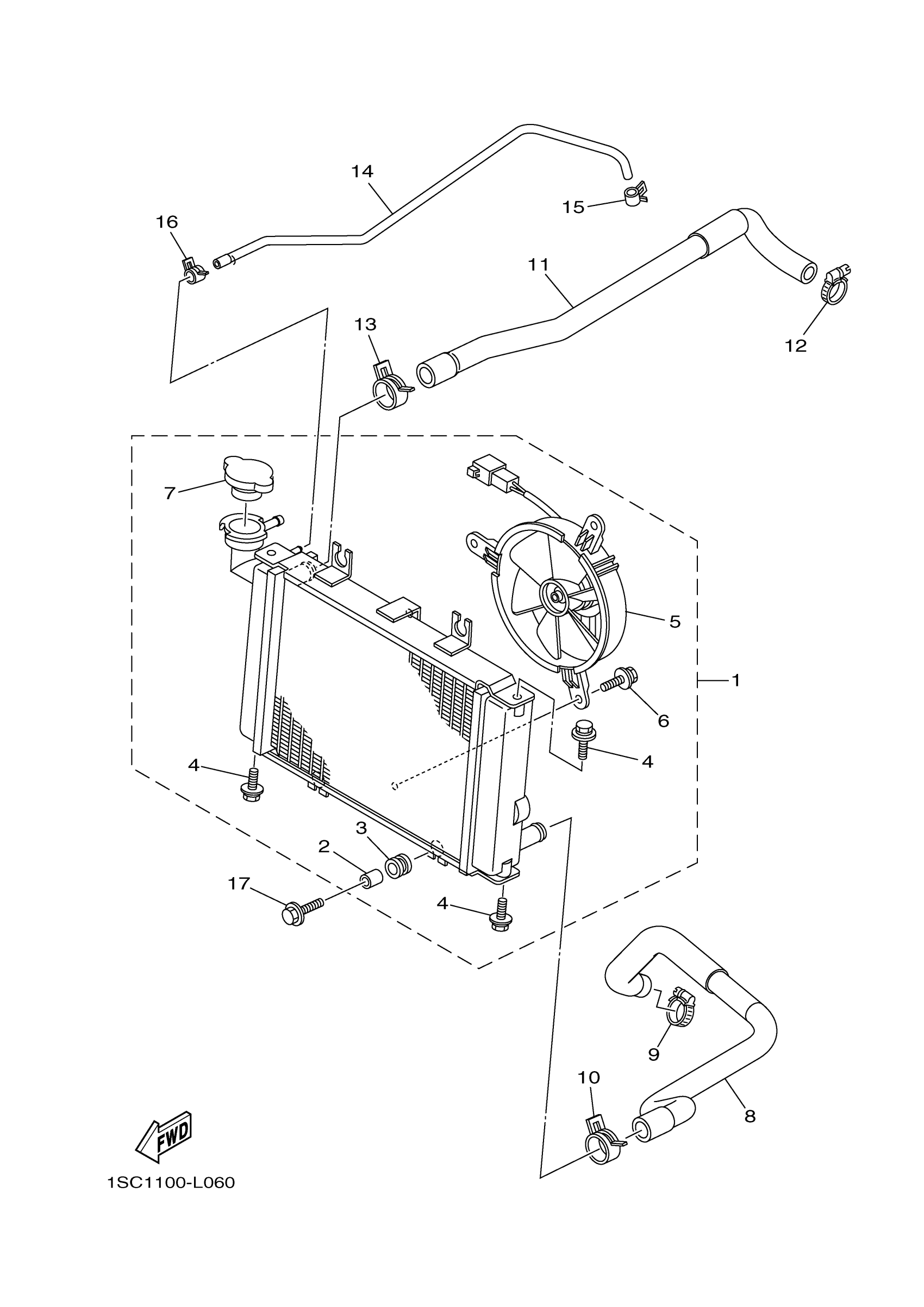

Yamaha YFM30GDGR (GRIZZLY 300) 1SC5 2013 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

1SC-E2460-00-00

$508.89

2

COLLAR 1

1SC-E2662-00-00

Unavailable

3

GROMMET, ANODE

1SC-E1328-00-00

Unavailable

4

BOLT, BLOWER HOLDING

1SC-E2675-00-00

$3.09

5

BLOWER ASSY

1SC-E2405-00-00

$297.11

6

BOLT, BLOWER HOLDING

1SC-E2675-00-00

$3.09

7

CAP, RADIATOR

1SC-E2462-00-00

$29.92

8

HOSE 1

1SC-E2576-00-00

$80.41

9

CLIP 3

1SC-E2488-00-00

$6.15

10

CLIP 4

1SC-E2489-00-00

Unavailable

11

HOSE 2

1SC-E2577-00-00

Unavailable

12

CLIP 3

1SC-E2488-00-00

$6.15

13

CLIP 4

1SC-E2489-00-00

Unavailable

14

HOSE 3

1SC-E2578-00-00

Unavailable

15

CLAMP 1

1SC-E262K-00-00

$3.56

16

CLAMP 2

1SC-E261G-00-00

Unavailable

17

BOLT

1SC-F1739-00-00

Unavailable
