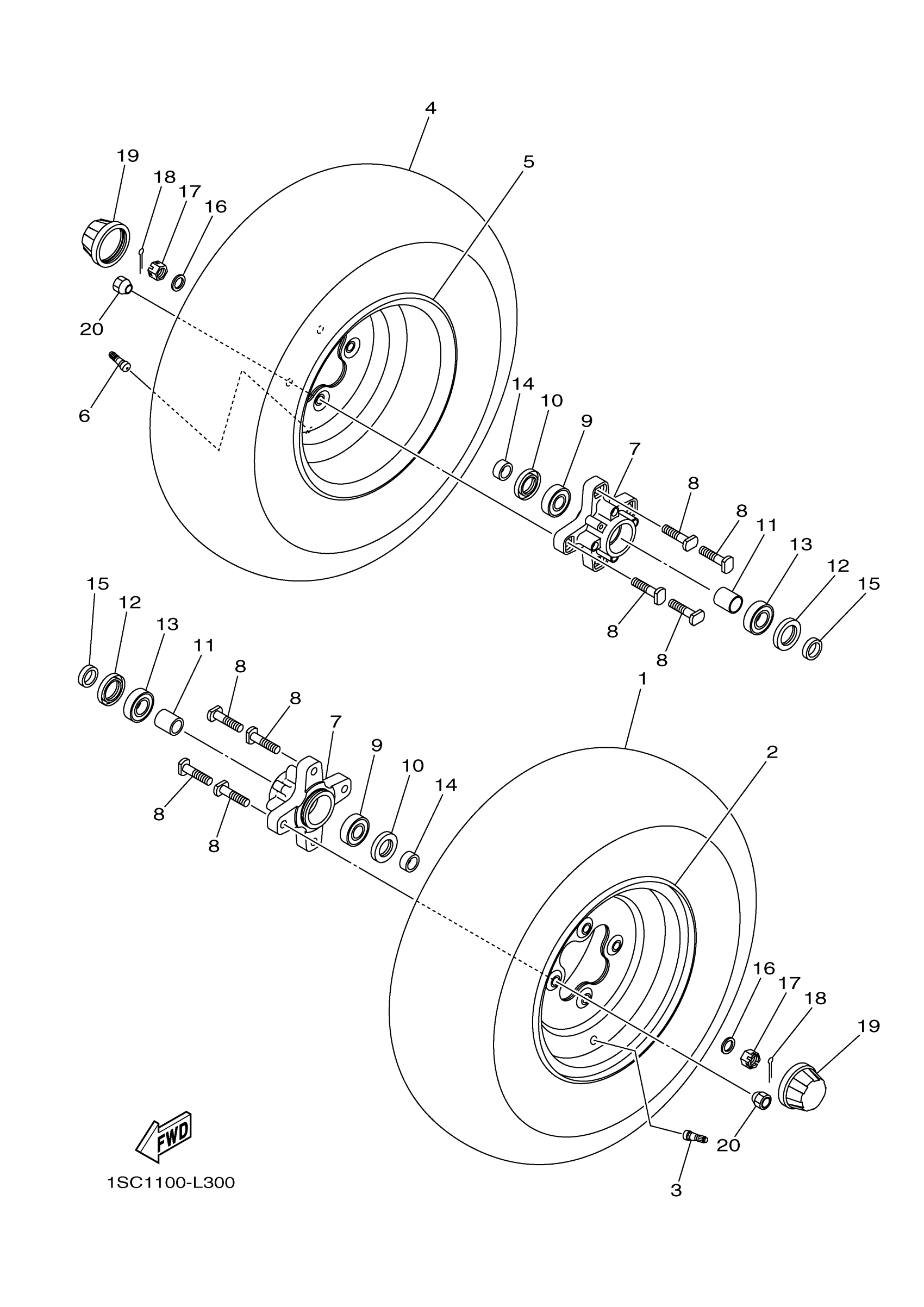

Yamaha YFM30GDGR (GRIZZLY 300) 1SC5 2013 FRONT WHEEL Diagram

#

Description

Price

1

TIRE (AT22 X 7-10 M919)

1SC-F510S-00-00

Unavailable

2

WHEEL COMP.

1SC-F5180-01-00

Unavailable

3

AIR VALVE ASSY

43D-F5170-00-00

Unavailable

4

TIRE (AT22 X 7-10 M919)

1SC-F510S-00-00

Unavailable

5

WHEEL COMP.

1SC-F5180-01-00

Unavailable

6

AIR VALVE ASSY

43D-F5170-00-00

Unavailable

7

HUB, FRONT

1SC-F5111-00-00

Unavailable

8

BOLT

1SC-F4592-00-00

$3.89

9

BEARING

1SC-F51H1-00-00

Unavailable

10

SEAL, OIL

1SC-F511B-00-00

Unavailable

11

SPACER, CARRIER

1SC-F4863-00-00

Unavailable

12

OIL SEAL 2

1SC-F51H3-00-00

Unavailable

13

JOURNAL

43D-E7412-00-00

Unavailable

14

SPACER 1

1SC-F4725-00-00

Unavailable

15

SPACER 2

1SC-F4729-00-00

Unavailable

16

WASHER, WHEEL

1SC-F5384-00-00

Unavailable

17

NUT

1SC-F1293-00-00

Unavailable

18

PIN, COTTER(6L5)

91490-25030-00

Unavailable

19

CAP, WHEEL

1SC-F512A-00-00

Unavailable

20

NUT

1SC-F1839-00-00

Unavailable
