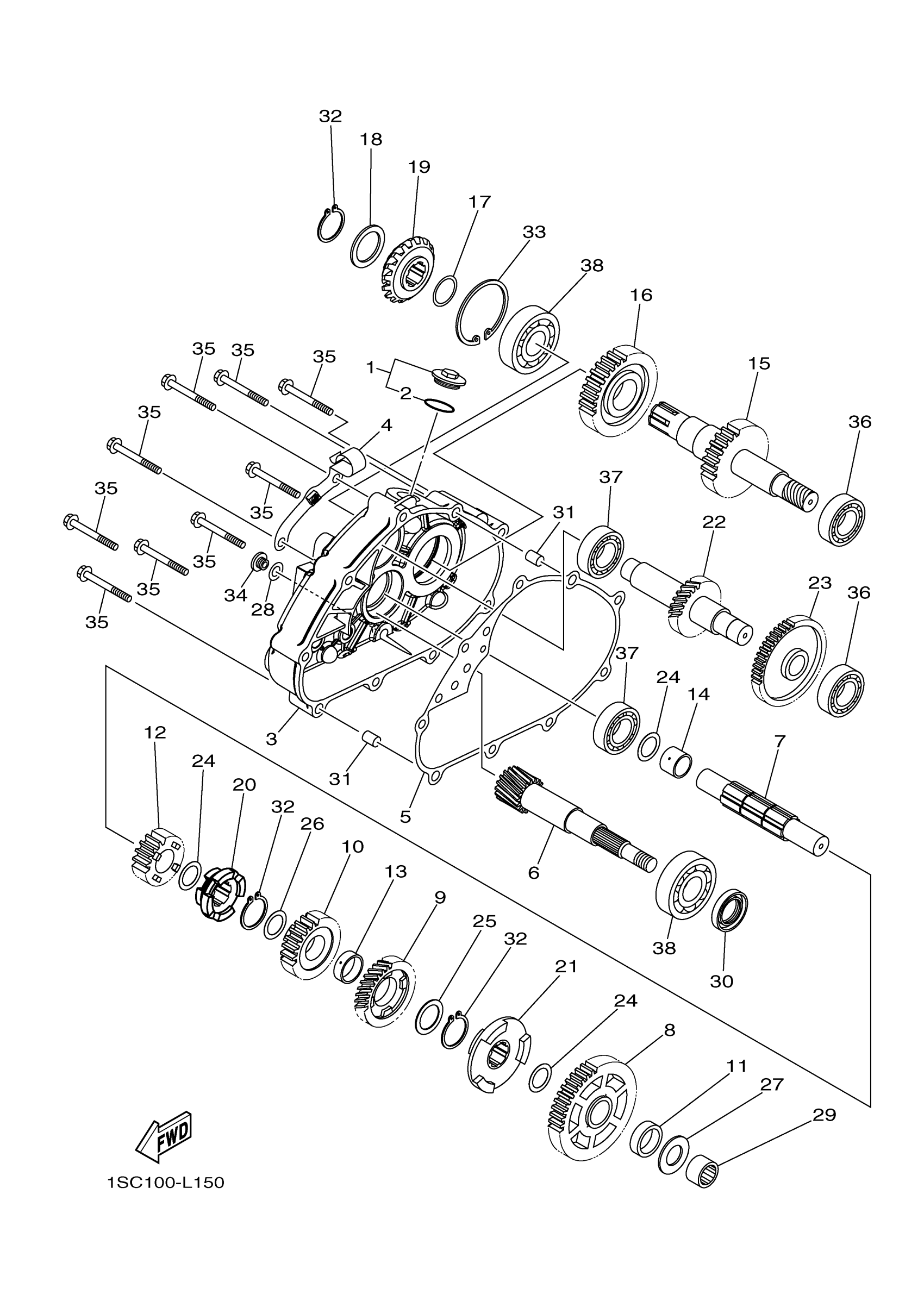

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 TRANSMISSION Diagram
#
1
PLUG, BLIND 1
1SC-E5167-00-00
Unavailable
3
PLATE, COVER
1SC-E7471-00-00
Unavailable
4
STAY, COVER 3
1SC-E541F-00-00
Unavailable
7
AXLE, DRIVE
1SC-E7421-00-00
Unavailable
9
GEAR, REVERSE WHEEL 2
1SC-E7253-00-00
Unavailable
10
GEAR, HIGH PINION
1SC-E7123-00-00
Unavailable
11
COLLAR 1
1SC-E7158-00-00
Unavailable
12
GEAR, LOW PINION
1SC-E7133-00-00
Unavailable
13
COLLAR 2
1SC-E7168-00-00
Unavailable
14
COLLAR
1SC-E7278-00-00
Unavailable
15
SHAFT
1SC-E7523-00-00
Unavailable
16
GEAR, LOW WHEEL
1SC-E7233-00-00
Unavailable
17
SHIM, PINION
1SC-E7531-00-00
Unavailable
18
WASHER, THRUST
1SC-E7529-00-00
Unavailable
18
WASHER, THRUST (T:2.2MM)
1SC-E7529-10-00
Unavailable
18
WASHER, THRUST (T:2.3MM)
1SC-E7529-20-00
Unavailable
18
WASHER, THRUST (T:2.4MM)
1SC-E7529-30-00
Unavailable
18
WASHER, THRUST (T:2.5MM)
1SC-E7529-40-00
Unavailable
19
PINION, DRIVE
1SC-E7522-00-00
Unavailable
20
CLUTCH, DOG
1SC-E7285-00-00
Unavailable
21
HOLDER
1SC-E7286-00-00
Unavailable
22
AXLE, IDLE
1SC-E7432-00-00
Unavailable
23
GEAR, REVERSE WHEEL 1
1SC-E7243-00-00
Unavailable
24
WASHER, GEAR HOLD 1
1SC-E7116-00-00
Unavailable
25
WASHER, GEAR HOLD 2
1SC-E7126-00-00
Unavailable
26
WASHER, GEAR HOLD
1SC-E7154-00-00
Unavailable
27
WASHER, GEAR HOLD 3
1SC-E7136-00-00
Unavailable
28
WASHER
1SC-E5561-00-00
Unavailable
29
JOURNAL 1
1SC-E7422-00-00
Unavailable
30
OIL SEAL
1SC-E7499-00-00
Unavailable
31
PIN, DOWEL
1SC-E7498-00-00
Unavailable
32
CIRCLIP
1SC-E7474-00-00
Unavailable
33
CLIP
1SC-E7475-00-00
Unavailable
34
PLUG, DRAIN
1SC-E5351-00-00
Unavailable
35
BOLT, MOUNT
1SC-E1026-00-00
Unavailable
36
BEARING
1SC-E142A-00-00
Unavailable
37
BEARING 2
1SC-E7423-00-00
Unavailable
38
BEARING 1
1SC-E7156-00-00
Unavailable
