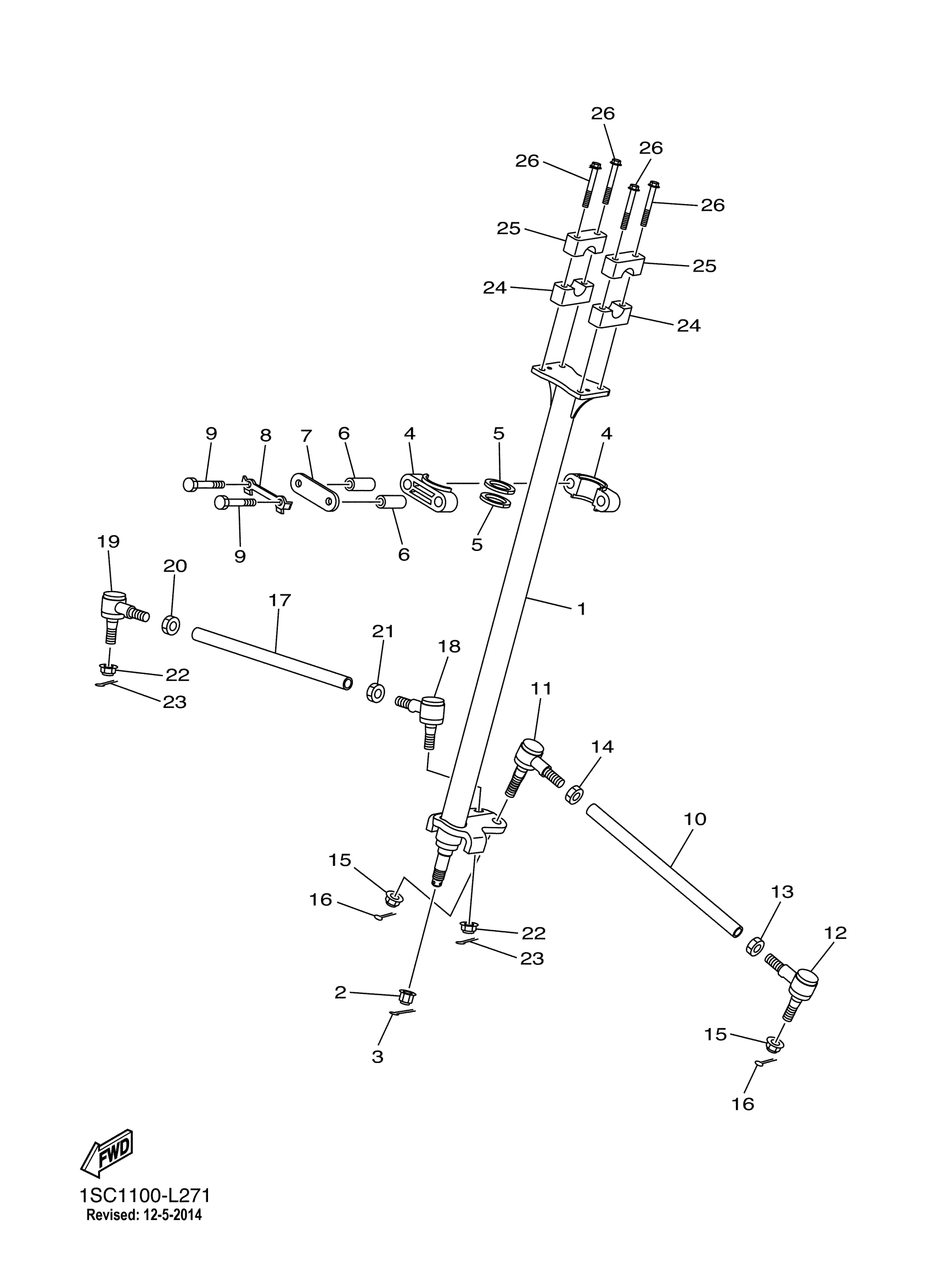

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1SC-F3813-00-00

Unavailable

2

NUT 1

43D-F1535-00-00

Unavailable

3

PIN, COTTER

91490-25020-00

$3.19

4

HOLDER, BEARING

1SC-F3872-00-00

$13.49

5

SEAL

1SC-F3844-00-00

$5.49

6

COLLAR 1

1SC-F3363-00-00

Unavailable

7

BRACKET, STEERING LOWER

1SC-F3868-00-00

Unavailable

8

PLATE

1SC-F3774-00-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

ROD, TIE

1SC-F3831-00-00

Unavailable

11

JOINT, UNIVERSAL 1

1SC-F3841-00-00

Unavailable

12

JOINT, UNIVERSAL 2

1SC-F3845-00-00

$93.99

13

NUT

90170-10011-00

$7.49

14

Nut

43D-F1829-00-00

$6.99

15

NUT

43D-F1839-00-00

$6.99

16

PIN, COTTER

91490-25020-00

$3.19

17

ROD, TIE

1SC-F3831-00-00

Unavailable

18

JOINT, UNIVERSAL 1

1SC-F3841-00-00

Unavailable

19

JOINT, UNIVERSAL 2

1SC-F3845-00-00

$93.99

20

NUT

90170-10011-00

$7.49

21

Nut

43D-F1829-00-00

$6.99

22

NUT

43D-F1839-00-00

$6.99

23

PIN, COTTER

91490-25020-00

$3.19

24

HOLDER, HANDLE LOWER

1SC-F3442-00-00

Unavailable

25

HOLDER, HANDLE UPPER

1SC-F3441-00-00

Unavailable

26

BOLT, HANDLE

1SC-F6225-00-00

Unavailable
