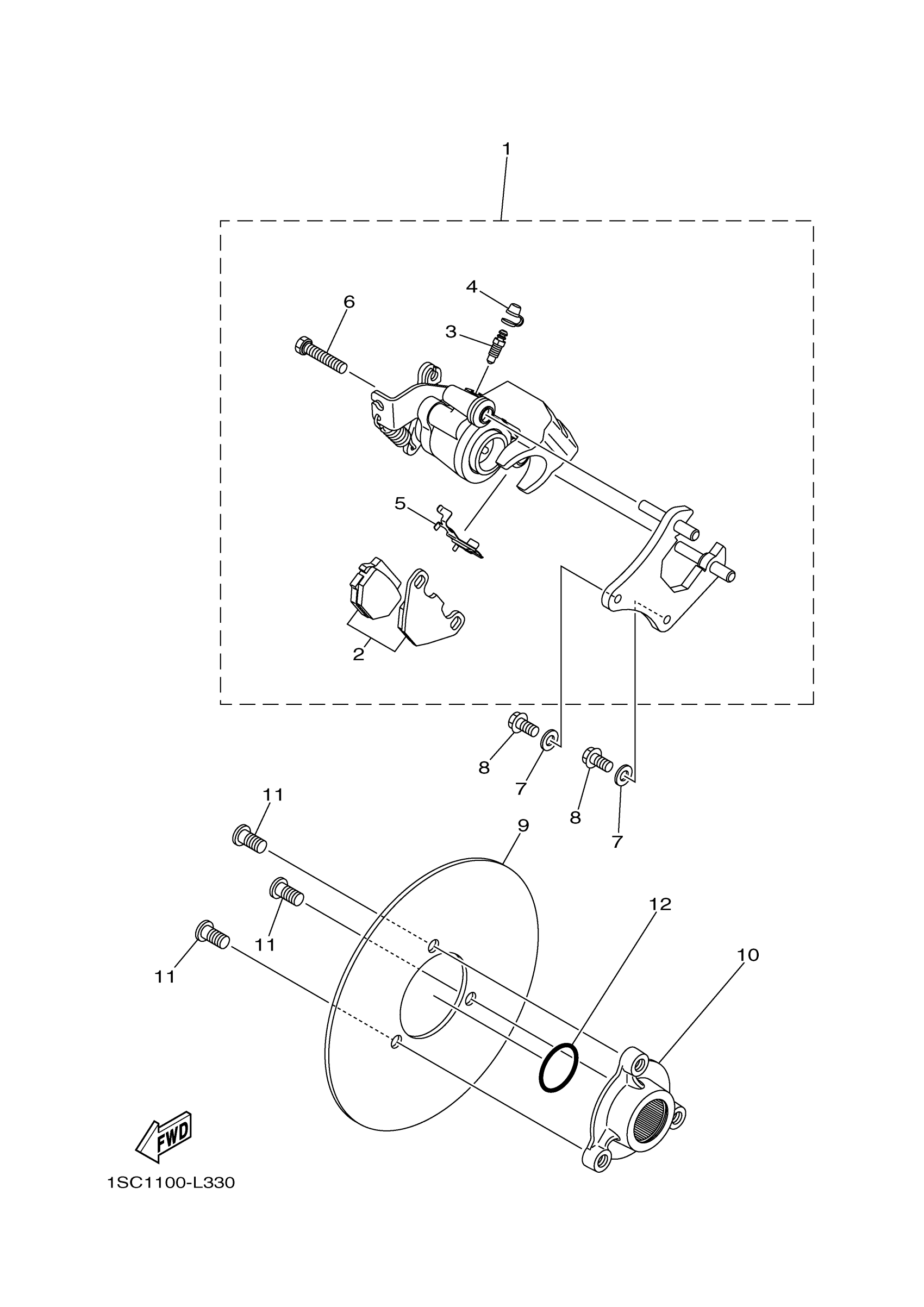

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 1

1SC-F580V-00-00

$462.91

2

. BRAKE PAD KIT 2

1SC-F5806-00-00

Unavailable

3

SCREW, BLEED

1SC-F5824-00-00

$9.52

4

CAP

43D-F5825-00-00

Unavailable

5

SUPPORT, PAD

43D-F5919-00-00

$7.71

6

ADJUST BOLT

43D-F5972-00-00

$3.30

7

WASHER, SEAT

1SC-F4746-00-00

$1.47

8

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

9

DISC, REAR BRAKE 1

1SC-F582V-00-00

$123.02

10

BRACKET, DISC

1SC-F5712-00-00

Unavailable

11

BOLT 1

43D-F1631-00-00

$4.44

12

O-RING

1SC-F51H4-00-00

$2.58
