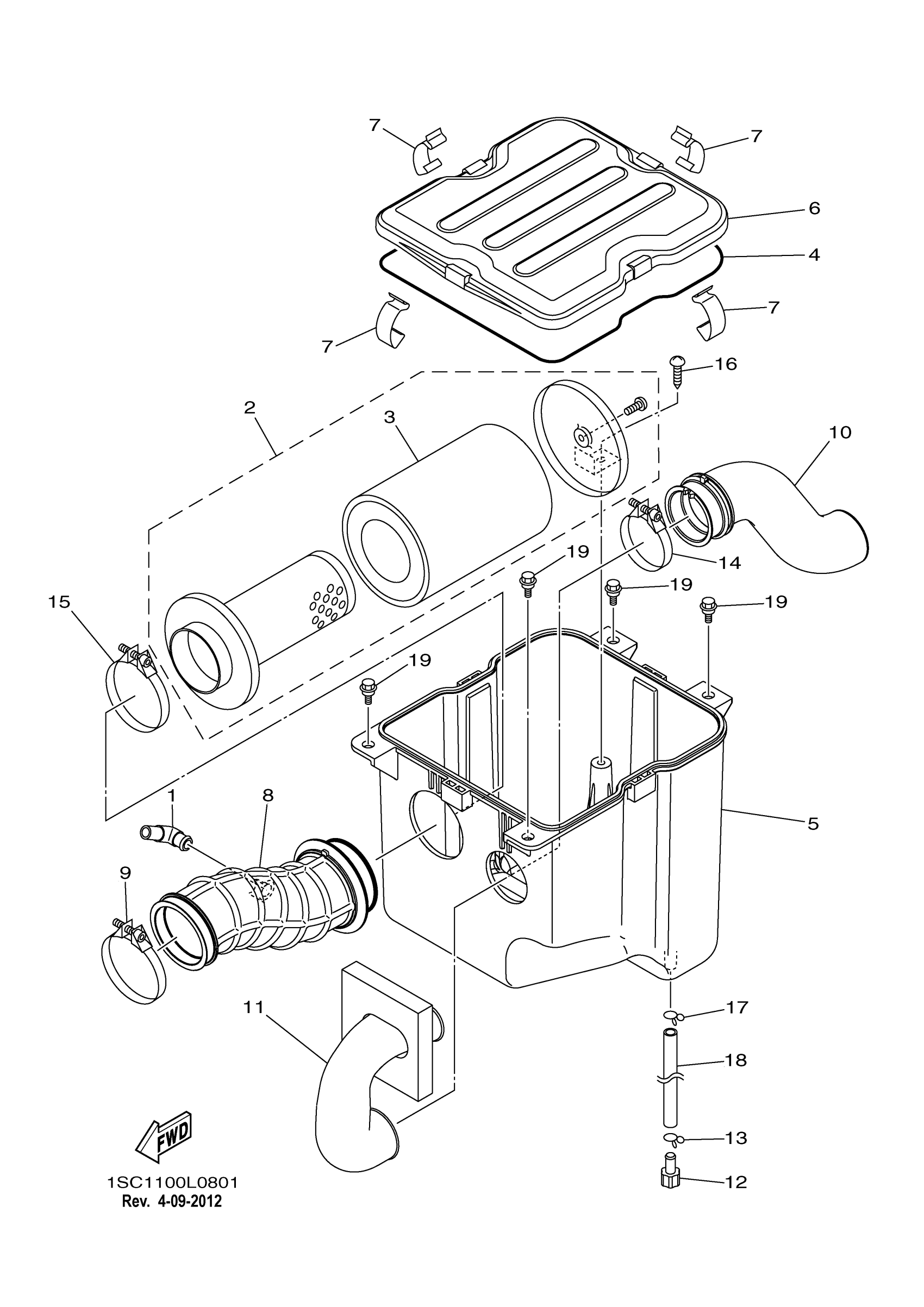

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 INTAKE Diagram

#

Description
Price

1

PIPE

1SC-E4419-00-00

Unavailable

2

ELEMENT ASSY, AIR CLEANER

1SC-E4480-00-00

Unavailable

3

. ELEMENT, AIR CLEANER

1SC-E4451-00-00

Unavailable

4

SEAL

1SC-E4462-00-00

Unavailable

5

CASE, AIR CLEANER 1

1SC-E4411-00-00

Unavailable

6

CAP, CLEANER CASE 1

1SC-E4412-00-00

Unavailable

7

CLIP, CAP FITTING

1SC-E4424-00-00

$9.99

8

JOINT, AIR CLEANER 1

1SC-E4453-00-00

$55.99

9

BAND

1SC-E4455-00-00

Unavailable

10

DUCT

1SC-E443A-00-00

Unavailable

11

DUCT

1SC-E4437-00-00

Unavailable

12

PLUG, BLIND

1SC-E443B-00-00

$4.32

13

CLIP

90467-12808-00

Unavailable

14

BAND

1SC-E4456-00-00

Unavailable

15

BAND

1SC-E4455-00-00

Unavailable

16

SCREW

1SC-E4429-00-00

Unavailable

17

CLIP 1

1SC-E449C-00-00

Unavailable

18

PIPE, DRAIN

1SC-E443E-00-00

Unavailable

19

BOLT

1SC-E4446-00-00

Unavailable
