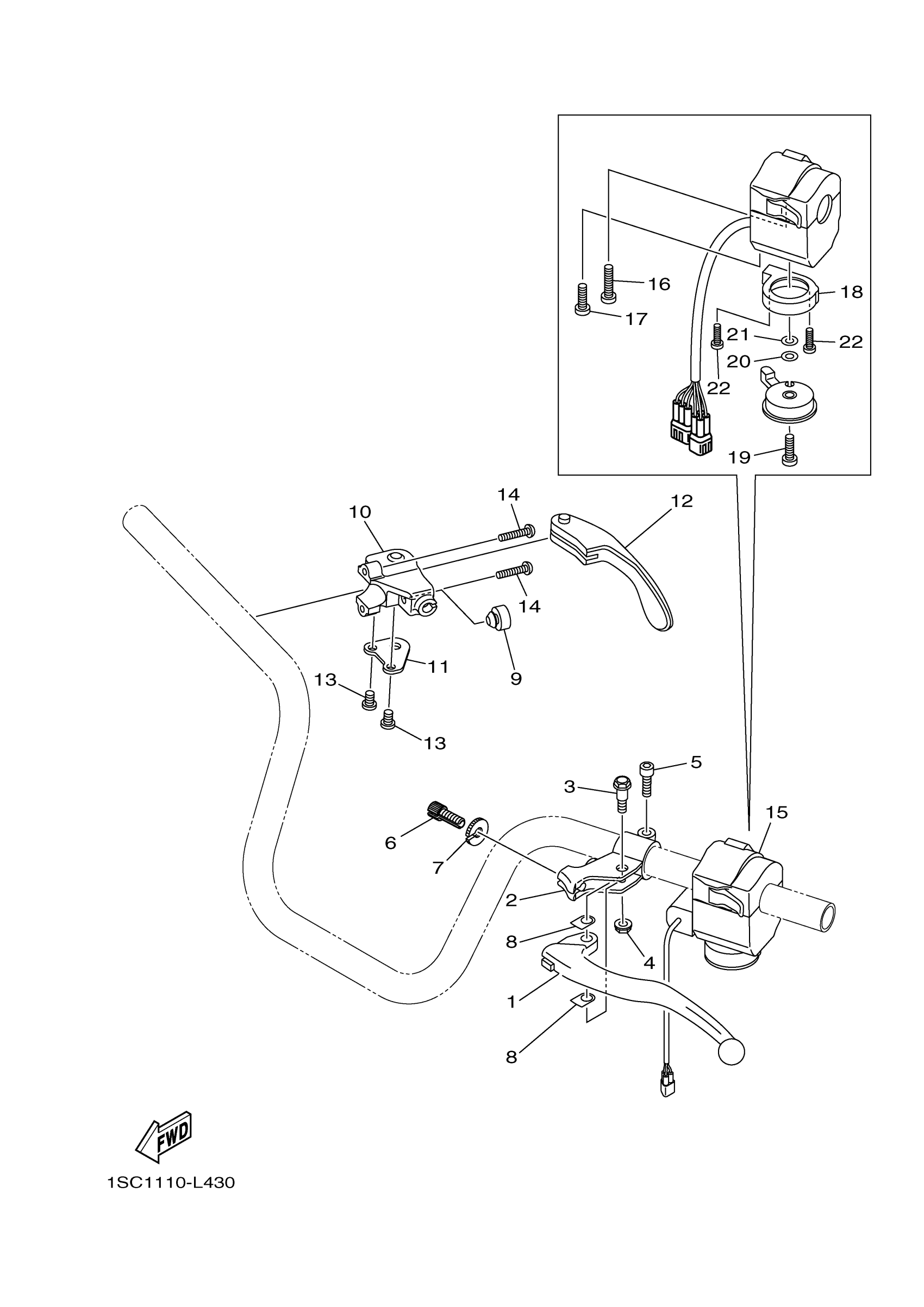

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

1SC-H3912-00-00

$39.99

2

HOLDER, LEVER 1

1SC-H2911-00-00

Unavailable

3

BOLT 2

1SC-F3356-00-00

Unavailable

4

NUT

43D-F3778-00-00

Unavailable

5

BOLT

43D-F6332-00-00

$2.81

6

BOLT, CABLE ADJUSTING

1SC-H3951-00-00

$14.49

7

NUT

43D-F1968-00-00

$7.99

8

WASHER

1SC-F6398-00-00

$3.48

9

DAMPER

43D-F6113-00-00

$3.85

10

BRACKET, LEVER

1SC-F5727-10-00

Unavailable

11

PLATE, GUIDE

43D-F5689-00-00

$3.22

12

LEVER, BRAKE

1SC-F5726-00-00

$48.99

13

SCREW

43D-F8355-00-00

Unavailable

14

SCREW

43D-F8354-00-00

$2.34

15

SWITCH, HANDLE 3

1SC-H3973-00-00

$157.99

16

SCREW, PAN

98507-05040-00

Unavailable

17

SCREW, PAN HEAD

98517-05030-00

Unavailable

18

SEAT, BASE 1

1SC-H18A7-00-00

Unavailable

19

SCREW, PAN

98507-06010-00

Unavailable

20

WASHER, SPECIAL

1SC-H2327-00-00

Unavailable

21

WASHER, SPECIAL 2

1SC-H332D-00-00

Unavailable

22

SCREW

1SC-H2113-00-00

Unavailable
