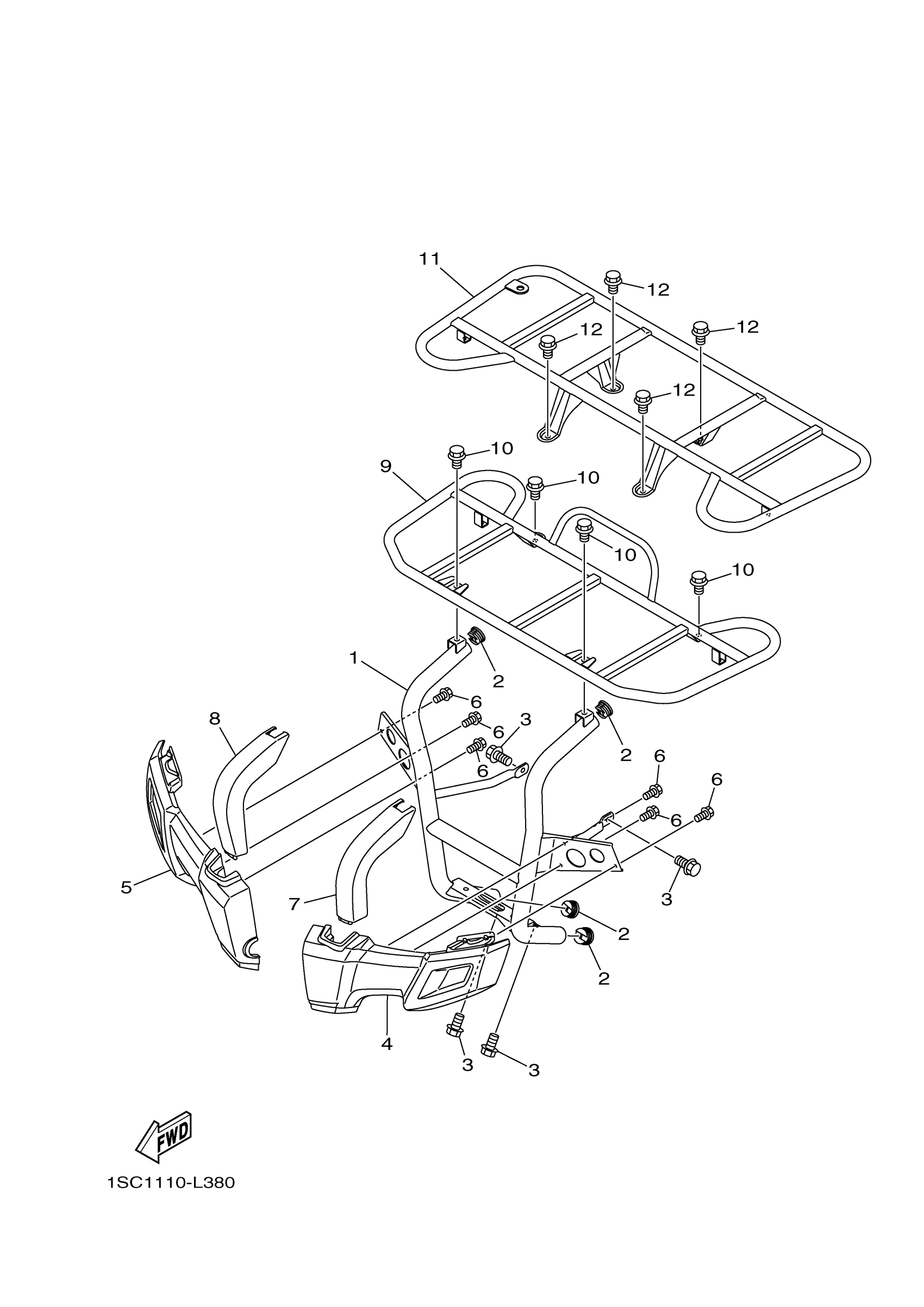

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1SC-F845N-00-00

$200.91

2

CAP

1SC-F8245-00-00

$8.95

3

BOLT, FLANGE

95814-08016-00

$6.22

4

DAMPER 1

1SC-F8415-00-00

$69.94

5

DAMPER 2

1SC-F8416-00-00

$69.94

6

SCREW, COWLING 1

1SC-F8354-00-00

$3.03

7

COVER 1

1SC-F842M-00-00

Unavailable

8

COVER 2

1SC-F842N-00-00

Unavailable

9

CARRIER, FRONT

1SC-F4841-00-00

Unavailable

10

BOLT, FLANGE

95817-08012-00

$3.71

11

CARRIER, REAR

1SC-F4842-00-00

$257.62

12

BOLT, FLANGE

95817-08012-00

$3.71
