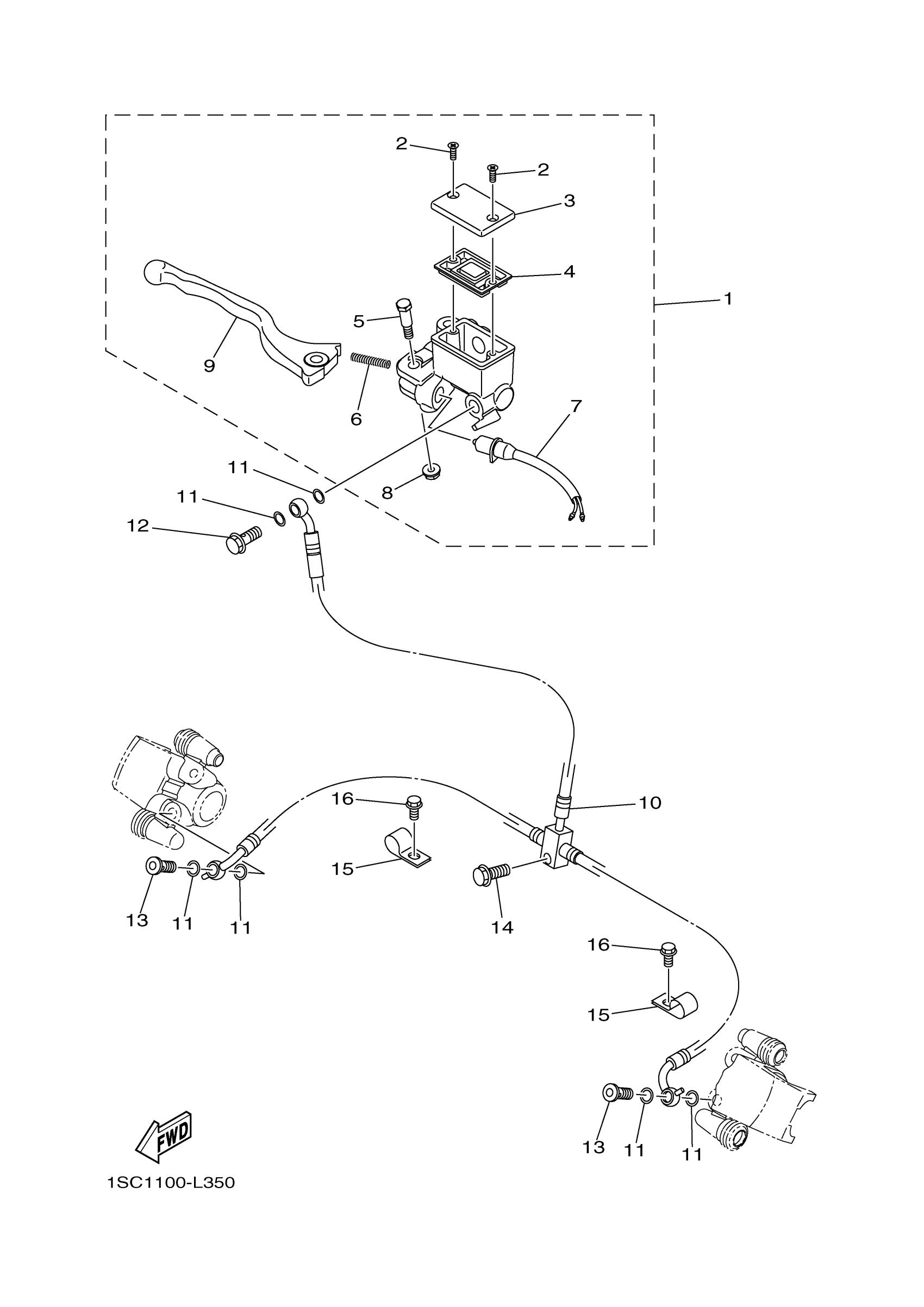

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

1SC-F583T-00-00

Unavailable

2

SCREW, OVAL HEAD

98680-04512-00

$4.29

3

CAP, RESERVOIR

43D-F5852-00-00

Unavailable

4

GASKET, DIAPHRAGM

43D-F5854-00-00

Unavailable

5

. BOLT

43D-F2277-00-00

Unavailable

6

SPRING

43D-F6314-00-00

$3.38

7

FRONT STOP SWITCH ASSY

1SC-H3980-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

LEVER 2

1SC-H3922-00-00

Unavailable

10

HOSE, BRAKE 1

1SC-F5872-00-00

Unavailable

11

WASHER 2

43D-F2244-00-00

$7.99

12

BOLT

43D-F244H-00-00

$5.49

13

BOLT

1SC-F244H-00-00

Unavailable

14

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

15

HOLDER, BRAKE HOSE 1

1SC-F5875-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable
