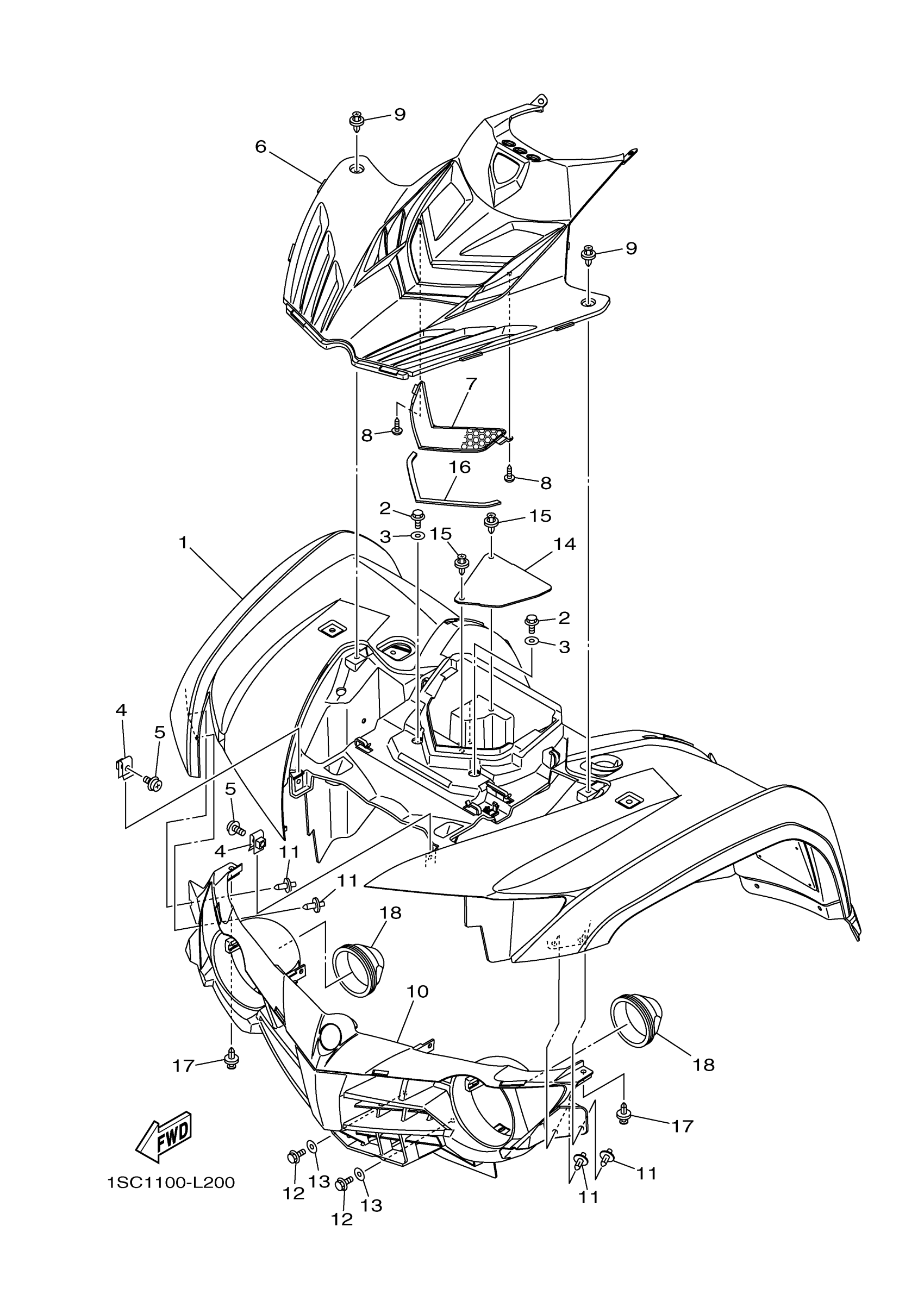

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY (PASTEL DEEP GREEN)

1SC-F1500-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

NUT 2

43D-F3834-00-00

$6.99

5

SCREW 3

1SC-F11C7-00-00

$1.35

6

PANEL, FRONT

1SC-F3391-00-00

Unavailable

7

PLATE 1

1SC-F1523-00-00

Unavailable

8

SCREW

43D-F4453-00-00

$2.34

9

RIVET

90269-07010-00

$4.35

10

GRILLE, FRONT

1SC-F8309-00-00

$93.99

11

RIVET

90269-07006-00

$7.49

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

PLATE 2

1SC-F1524-00-00

Unavailable

15

RIVET

90269-07010-00

$4.35

16

DAMPER

1SC-F1746-00-00

Unavailable

17

PLUG, DRAIN

43D-F3119-00-00

Unavailable

18

CAP

1SC-F8349-00-00

Unavailable
