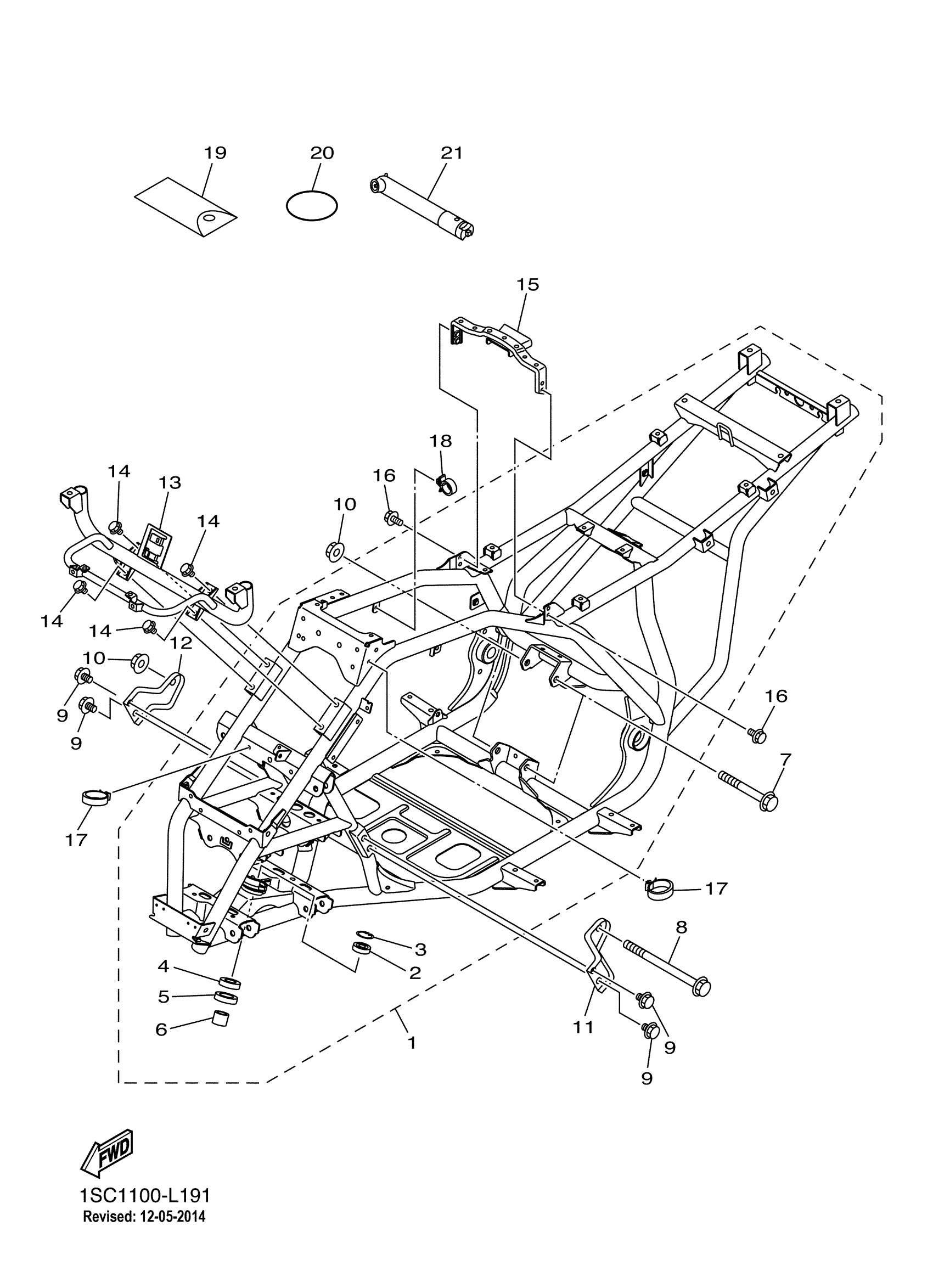

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 FRAME Diagram

#

Description
Price

1

FRAME SUB COMP.

1SC-F111B-00-00

Unavailable

2

BEARING

43D-F11C1-00-00

Unavailable

3

CLIP

43D-F11C2-00-00

Unavailable

4

SEAL

43D-F3844-00-00

$6.99

5

SEAL 2

43D-F38B1-00-00

Unavailable

6

SPACER

43D-F38B2-00-00

Unavailable

7

BOLT, FLANGE

95812-12100-00

Unavailable

8

BOLT, FLANGE

95812-12160-00

Unavailable

9

BOLT, FLANGE

95812-10016-00

$9.49

10

NUT, SELF-LOCKING

95602-12200-00

$4.46

11

STAY, ENGINE 2

1SC-F1315-00-00

Unavailable

12

STAY, ENGINE 3

1SC-F1316-00-00

Unavailable

13

STAY, FENDER 1

1SC-F1513-09-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

STAY 1

1SC-F116A-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

CLAMP 1

43D-F53N5-00-00

Unavailable

18

CLAMP

1SC-F1338-00-00

Unavailable

19

TOOL KIT

1SC-F8100-00-00

Unavailable

20

O-RING

93210-64488-00

Unavailable

21

GAUGE, AIR

43D-F811A-01-00

Unavailable
