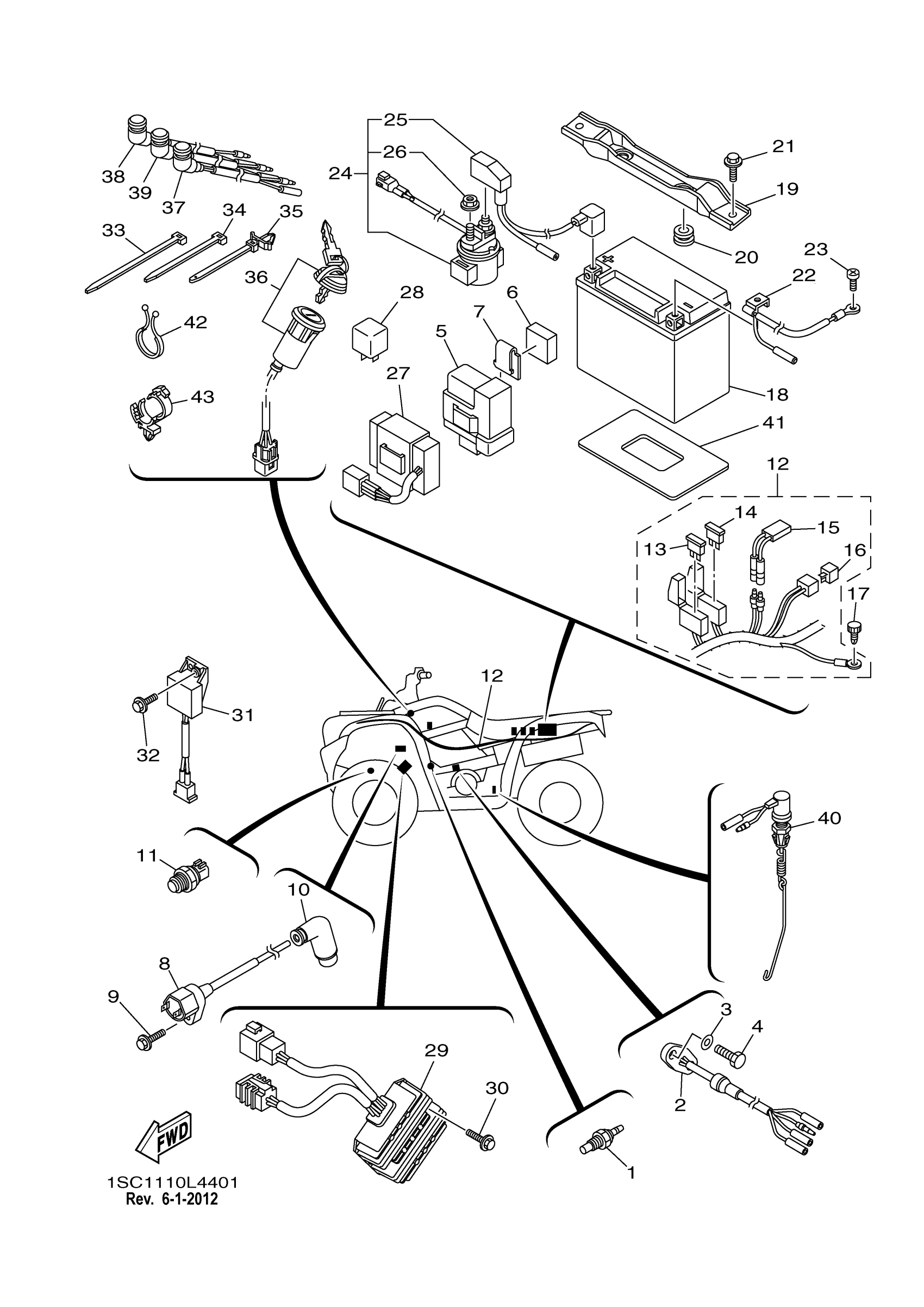

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

THERMO UNIT

1SC-H3591-00-00

Unavailable

2

NEUTRAL SWITCH ASSY

1SC-H2540-00-00

Unavailable

3

WASHER, PLAIN

1SC-H1462-00-00

Unavailable

4

BOLT, COVER MOUNTING

1SC-E118E-00-00

Unavailable

5

C.D.I. UNIT ASSY

1SC-H5540-01-00

$411.99

6

DAMPER

1SC-H2176-00-00

Unavailable

7

PLATE

1SC-H1845-00-00

Unavailable

8

IGNITION COIL ASSY

1SC-H231E-00-00

$69.99

9

BOLT

43D-F1531-00-00

Unavailable

10

PLUG CAP ASSY

52S-H2370-00-00

$39.99

11

THERMOSENSOR ASSY

1SC-H5790-00-00

$97.99

12

WIRE HARNESS ASSY

1SC-H2590-00-00

$526.99

13

FUSE (10A)

42X-82151-00-00

$4.32

14

FUSE (12V 30A)

1AE-82151-00-00

$7.99

15

CIRCUIT BREAKER ASSY

1SC-H2180-00-00

Unavailable

16

DIODE ASSY

1SC-H1980-00-00

Unavailable

17

SCREW, 1

43D-F2969-00-00

Unavailable

18

YTX12BS YUASA BATTERY - SA

YTX-12BS0-00-00

Unavailable

19

BRACKET, BATTERY

1SC-H2128-00-00

Unavailable

20

GROMMET

1SC-F1719-00-00

Unavailable

21

BOLT

1SC-F1739-00-00

Unavailable

22

WIRE, MINUS LEAD

1SC-H2116-00-00

Unavailable

23

SCREW, 1

43D-F2969-00-00

Unavailable

24

STARTER RELAY ASSY

1SC-H1940-02-00

Unavailable

25

WIRE, PLUS LEAD

1SC-H2115-00-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable

27

CONTROL UNIT ASSY

1SC-H5830-00-00

Unavailable

28

RELAY ASSY

1SC-H1950-00-00

Unavailable

29

RECTIFIER & REGULATOR ASSY

1SC-H1960-01-00

Unavailable

30

BOLT, FLANGE

95817-06016-00

Unavailable

31

CONTROL UNIT ASSY

1SC-H5830-10-00

Unavailable

32

BOLT, FLANGE

95022-06016-00

Unavailable

33

CLAMP, HOSE

43D-F2591-00-00

Unavailable

34

CLAMP

43D-F3466-00-00

Unavailable

35

CLAMP

43D-F15A3-00-00

Unavailable

36

MAIN SWITCH ASSY

1SC-H2510-00-00

Unavailable

37

PILOT LIGHT ASSY 1

1SC-H4301-00-00

Unavailable

38

PILOT LIGHT ASSY 2

1SC-H4302-00-00

Unavailable

39

PILOT LIGHT ASSY 3

1SC-H4305-00-00

Unavailable

40

STOP SWITCH ASSY

1SC-H2530-00-00

Unavailable

41

DAMPER

1SC-F174Y-00-00

Unavailable

42

CLAMP

1SC-H3595-00-00

Unavailable

43

CLAMP

1SC-H3596-00-00

Unavailable
