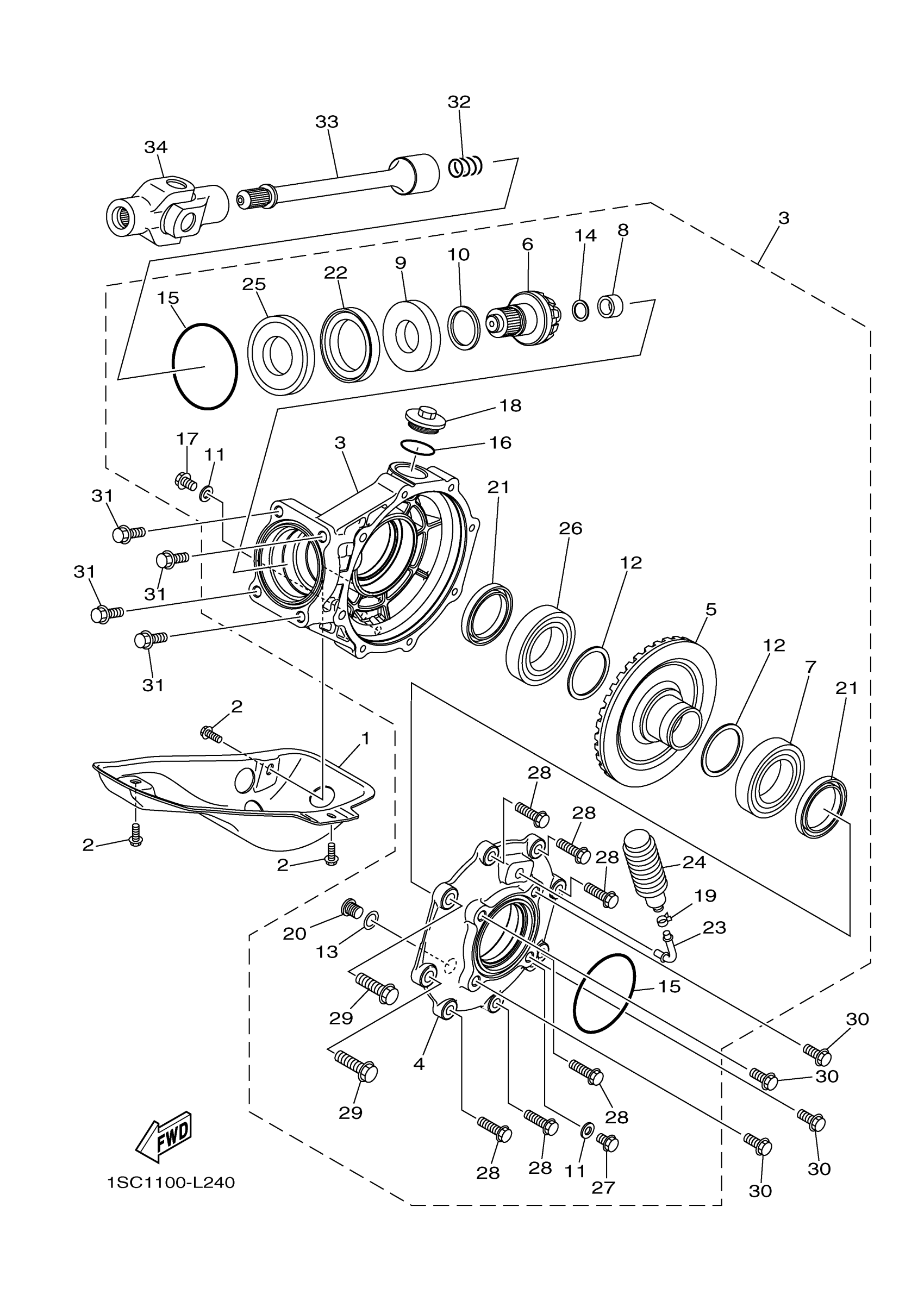

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 DRIVE SHAFT Diagram
#
3
REAR AXLE GEAR CASE ASSY
1SC-G6101-00-00
Unavailable
4
HOUSING, BEARING
1SC-G6152-00-00
Unavailable
7
BEARING 1
1SC-G6164-00-00
Unavailable
8
BEARING ASSY
1SC-G6102-00-00
Unavailable
9
BEARING ASSY
1SC-G6106-00-00
Unavailable
10
SHIM, PINION
1SC-G621E-00-00
Unavailable
12
SHIM, RING GEAR
1SC-G6117-00-00
Unavailable
13
SHIM, STOPPER
1SC-G6157-00-00
Unavailable
14
STOPPER
1SC-G6239-00-00
Unavailable
16
O-RING 2
1SC-G6135-00-00
Unavailable
17
BOLT 2
1SC-G6158-00-00
Unavailable
18
PLUG
1SC-G7339-00-00
Unavailable
19
CLIP
1SC-G5319-00-00
Unavailable
20
STOPPER, RING GEAR
1SC-G6156-00-00
Unavailable
21
OIL SEAL 1
1SC-G624A-00-00
Unavailable
22
NUT 1
1SC-G6145-00-00
Unavailable
23
PIPE
1SC-G5135-00-00
Unavailable
24
BREATHER COMP.
1SC-G6190-00-00
Unavailable
25
OIL SEAL 2
1SC-G624B-00-00
Unavailable
26
BEARING 2
1SC-G6165-00-00
Unavailable
27
BOLT 3
1SC-G6159-00-00
Unavailable
28
BOLT 1
1SC-G5386-00-00
Unavailable
29
BOLT 2
1SC-G5387-00-00
Unavailable
30
BOLT 1
1SC-G6155-00-00
Unavailable
31
BOLT 1
1SC-G6155-00-00
Unavailable
32
SPRING SET
1SC-G6376-00-00
Unavailable
33
SHAFT, DRIVE
1SC-G6172-00-00
Unavailable
34
CROSS JOINT COMP. 3
1SC-G6108-00-00
Unavailable
