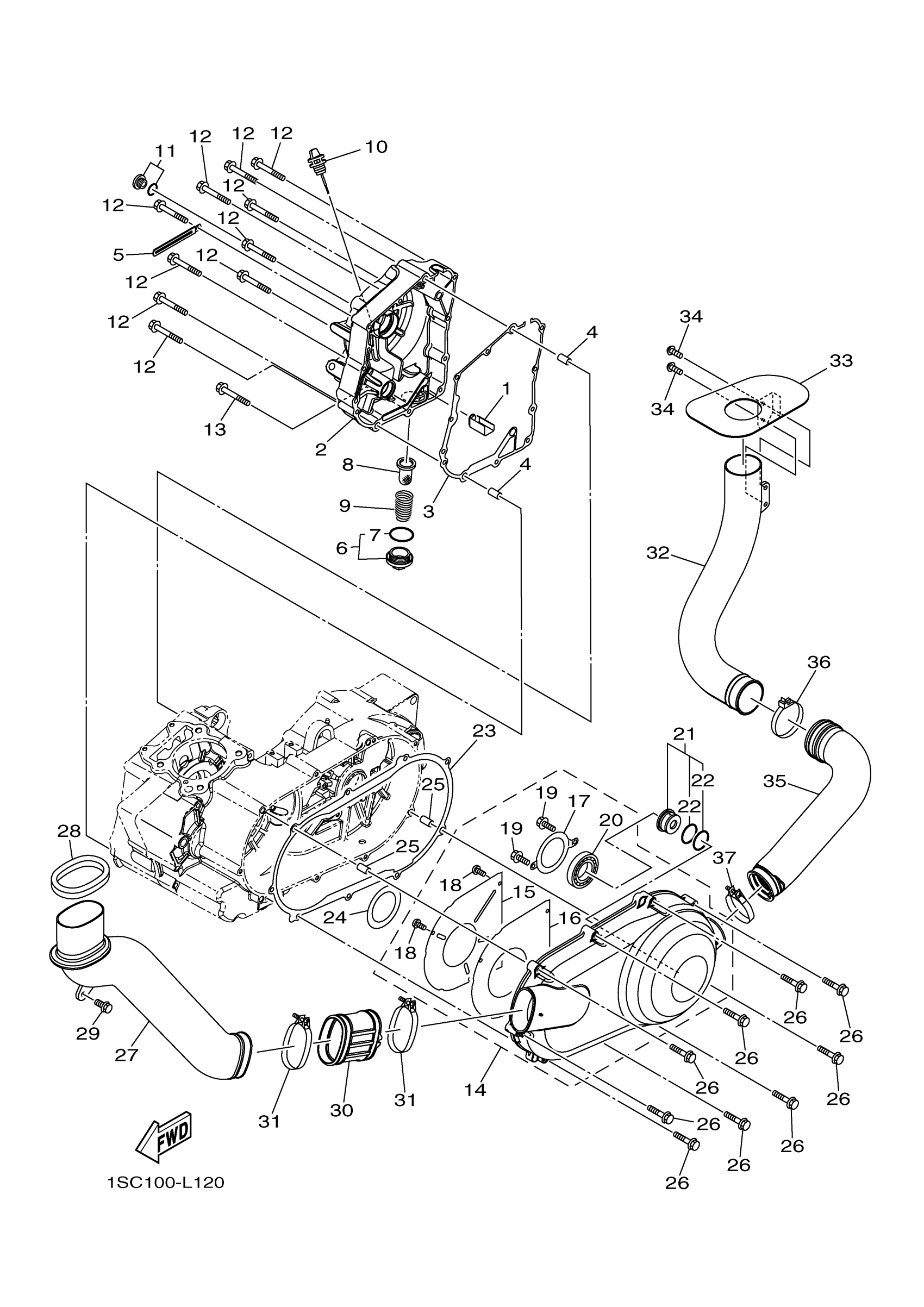

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 CRANKCASE COVER 1 Diagram

#

Description
Price

1

PLUG

1SC-E3419-00-00

$35.99

2

COVER, CRANKCASE 2

1SC-E5421-10-00

$261.99

3

GASKET, CRANKCASE COVER 2

1SC-E5461-00-00

Unavailable

4

PIN, DOWEL

43D-E5181-00-00

$2.29

5

CLAMP 2

1SC-E5484-00-00

$3.74

6

PLUG, BLIND 1

1SC-E5167-00-00

Unavailable

7

O-RING

1SC-E3473-00-00

$8.99

8

STRAINER, OIL

1SC-E3411-00-00

$32.99

9

SPRING

1SC-E3469-00-00

$7.99

10

PLUG, OIL LEVEL

1SC-E536A-00-00

Unavailable

11

PLUG, BLIND 2

1SC-E5168-00-00

Unavailable

12

BOLT 1

1SC-E5481-00-00

$1.72

13

BOLT 2

1SC-E5482-00-00

Unavailable

14

CRANKCASE COVER ASSY 1

1SC-E5410-00-00

Unavailable

15

PLATE, DUST SEAL

1SC-E5497-00-00

Unavailable

16

GASKET

1SC-E5453-00-00

Unavailable

17

PLATE, BEARING COVER

1SC-E5383-00-00

Unavailable

18

SCREW, FITTING

1SC-E5444-00-00

Unavailable

19

BOLT, SPECIAL

1SC-E7087-00-00

Unavailable

20

BEARING 4

1SC-E142B-00-00

Unavailable

21

SPACER

1SC-E7649-00-00

Unavailable

22

OIL SEAL

1SC-E511C-00-00

Unavailable

23

GASKET, CRANKCASE COVER 1

1SC-E5451-00-00

Unavailable

24

PLATE

1SC-E5589-00-00

Unavailable

25

PIN, DOWEL

43D-E5181-00-00

$2.29

26

BOLT

1SC-H1252-00-00

Unavailable

27

DUCT, AIR

1SC-E5471-00-00

Unavailable

28

ELEMENT 1

1SC-E5407-00-00

Unavailable

29

BOLT

1SC-F1738-00-00

Unavailable

30

SEAL, AIR DUCT

1SC-E5472-00-00

Unavailable

31

BAND

1SC-E54F3-00-00

Unavailable

32

DUCT, AIR

1SC-E5473-00-00

Unavailable

33

PLATE

1SC-E5191-00-00

Unavailable

34

BOLT

1SC-F1739-00-00

Unavailable

35

SEAL, AIR DUCT

1SC-E5474-00-00

Unavailable

36

CLAMP, HOSE 1

1SC-E1387-00-00

Unavailable

37

CLAMP, HOSE 2

1SC-E1388-00-00

Unavailable
