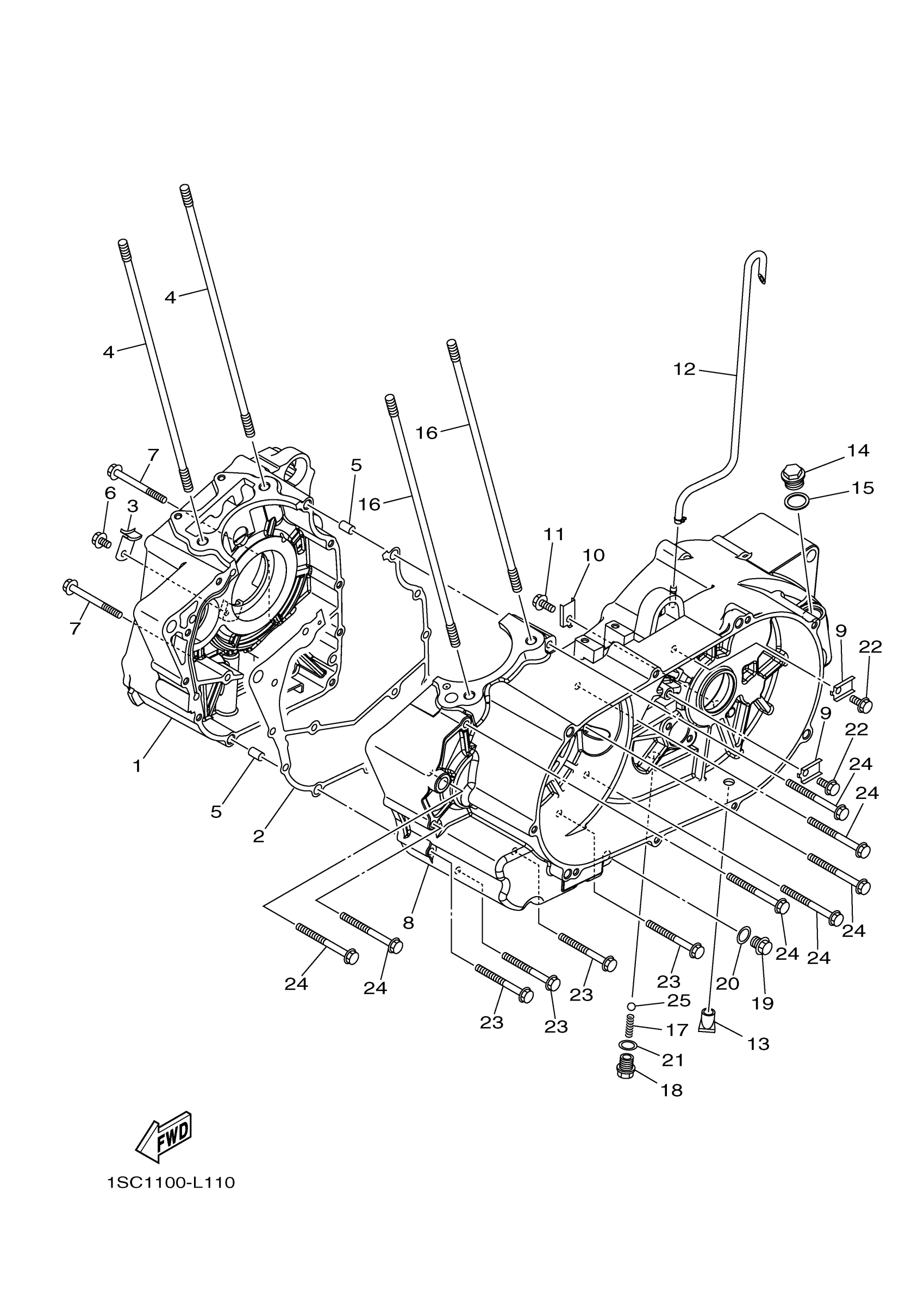

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 2

1SC-E5121-00-00

Unavailable

2

GASKET, CRANKCASE 1

1SC-E5314-00-00

Unavailable

3

PLATE, GUIDE STOPPER 1

1SC-E2233-00-00

Unavailable

4

BOLT, CYLINDER HOLDING 2

1SC-E1362-00-00

Unavailable

5

PIN, DOWEL

43D-E5181-00-00

$2.29

6

BOLT SET

1SC-E22C0-00-00

Unavailable

7

BOLT

1SC-E5187-00-00

Unavailable

8

CRANKCASE 1

1SC-E5111-00-00

Unavailable

9

PLATE, BEARING COVER

1SC-E5381-00-00

Unavailable

10

PLATE, BEARING

1SC-E7558-01-00

Unavailable

11

BOLT

1SC-E4496-00-00

Unavailable

12

HOSE, BREATHER 1

1SC-E531A-00-00

Unavailable

13

PLUG, WATER DRAIN

1SC-E1373-00-00

$3.28

14

PLUG, BLIND 2

1SC-E5169-00-00

Unavailable

15

WASHER

1SC-E5158-00-00

$1.51

16

BOLT, CYLINDER HOLDING 1

1SC-E1361-00-00

Unavailable

17

SPRING, CAM STOPPER

1SC-E8557-00-00

Unavailable

18

PLUG, BLIND

1SC-E8533-00-00

Unavailable

19

PLUG, DRAIN

1SC-E5351-00-00

Unavailable

20

WASHER

1SC-E5561-00-00

Unavailable

21

WASHER

1SC-E5613-00-00

Unavailable

22

BOLT, SPECIAL

1SC-E7087-00-00

Unavailable

23

BOLT

1SC-E5768-00-00

Unavailable

24

BOLT 2

1SC-E5482-00-00

Unavailable

25

BALL

1SC-E8218-00-00

Unavailable
