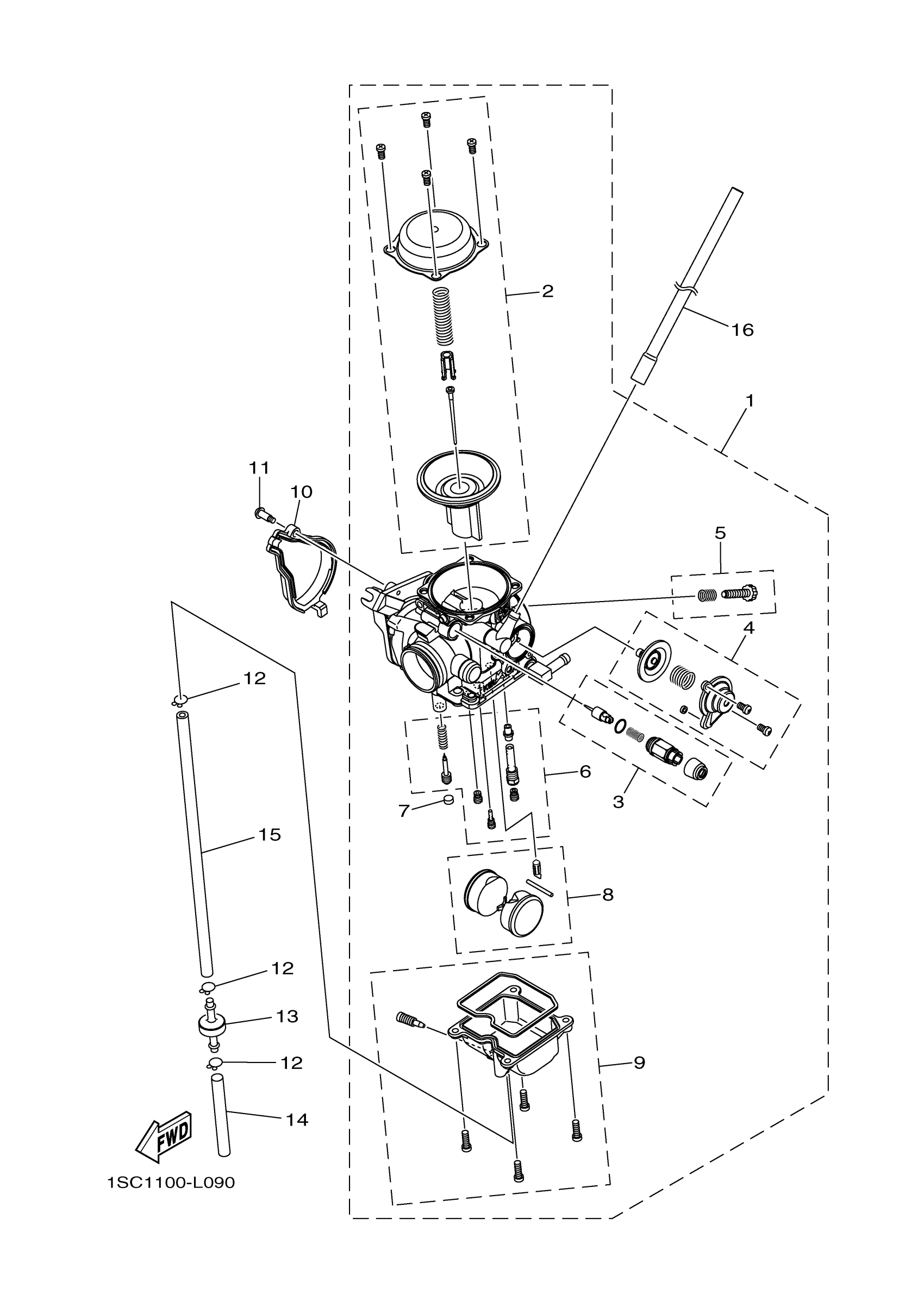

Yamaha YFM30GBL (GRIZZLY 300) 1SC11 2012 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSY 1

1SC-E4101-00-00

Unavailable

2

NEEDLE VALVE SET

1SC-E4107-00-00

$56.99

3

. STARTER SET

1SC-E410A-00-00

Unavailable

4

DIAPHRAGM SET 5

1SC-E490H-00-00

$112.99

5

STOP SCREW SET

1SC-E490K-00-00

Unavailable

6

JET KIT

1SC-E41B0-00-00

Unavailable

7

. CAP

1SC-E4118-00-00

Unavailable

8

FLOAT CHAMBER ASSY

1SC-E4180-00-00

Unavailable

9

CHAMBER ASSY

1SC-E4730-00-00

Unavailable

10

COVER 1

1SC-E4293-00-00

$24.99

11

BOLT

1SC-E4428-00-00

$6.99

12

CLIP 1

43D-E439G-00-00

Unavailable

13

VALVE, ROTARY

43D-E3512-00-00

Unavailable

14

PIPE

1SC-E4996-00-00

Unavailable

15

HOSE

1SC-E4987-00-00

Unavailable

16

PIPE

1SC-E4197-00-00

Unavailable
