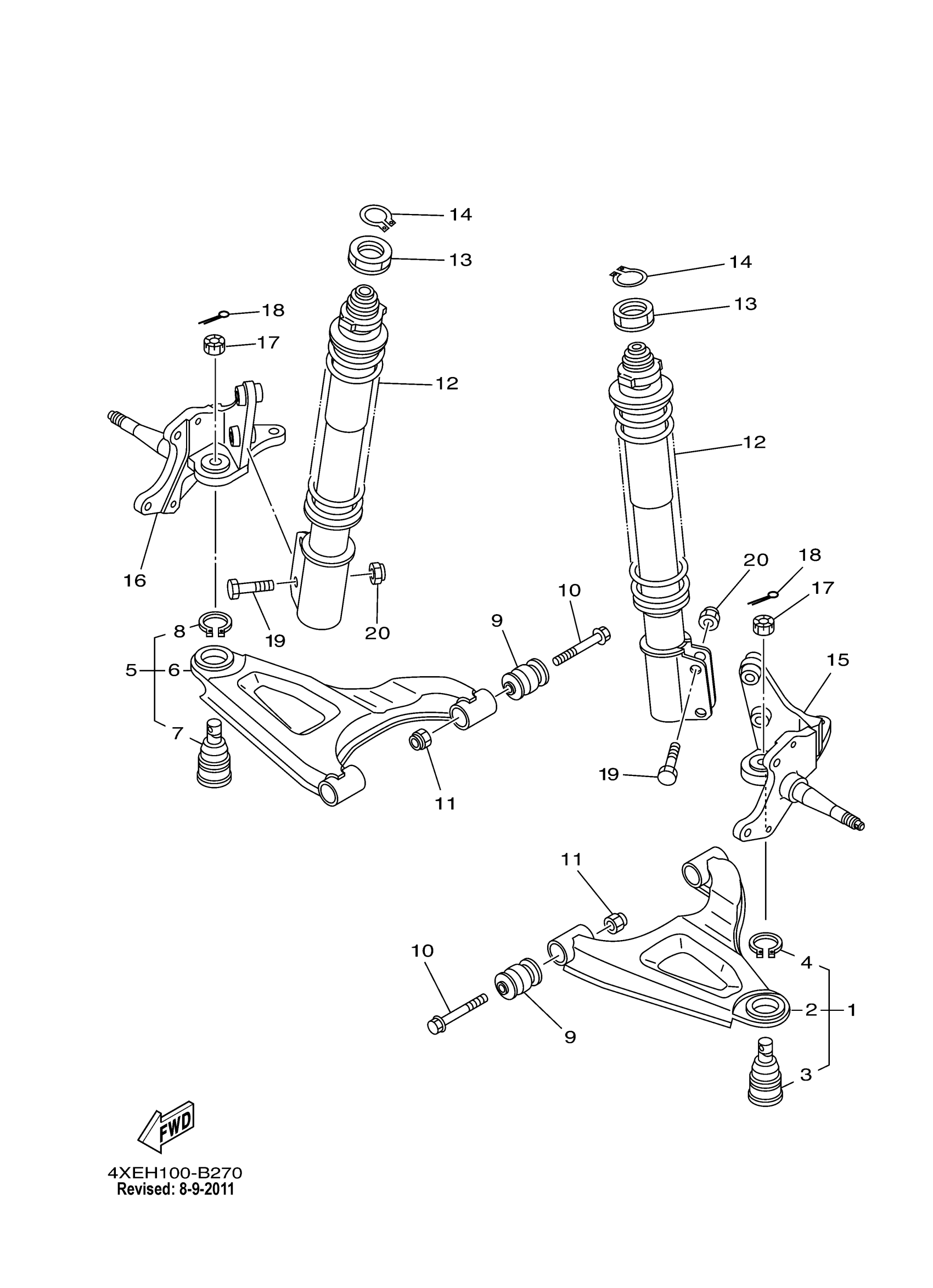

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
4XE-F3570-10-00
Unavailable
2
FRONT LOWER ARM (LEFT)
4XE-F357A-00-00
Unavailable
3
BALL JOINT 1
1P0-23549-00-00
Unavailable
5
FRONT LOWER ARM COMP. (RIGHT)
4XE-F3580-10-00
Unavailable
6
FRONT LOWER ARM (RIGHT)
6XE-F358A-00-00
Unavailable
7
BALL JOINT 1
1P0-23549-00-00
Unavailable
12
SHOCK ABSORBER ASSY (FRONT)
4XE-F3350-10-00
Unavailable
13
NUT
90179-35002-00
Unavailable
15
STEERING KNUCKLE A
4XE-F3501-21-00
Unavailable
16
STEERING KNUCKLE A
4XE-F3502-21-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
BOLT
90101-12811-00
Unavailable
20
NUT, U
95612-12100-00
Unavailable
