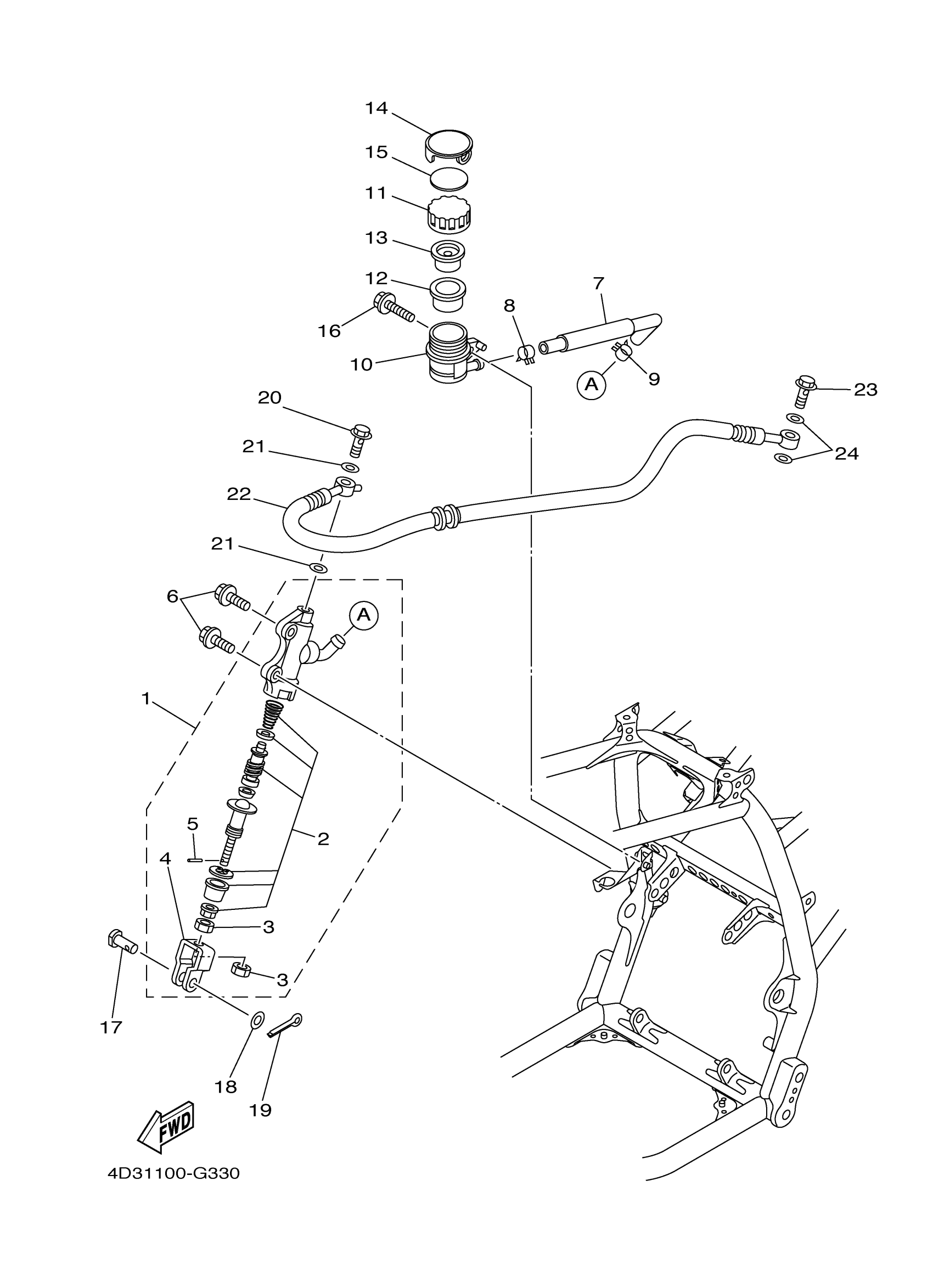

Yamaha YFM25RZW (RAPTOR 250) 1BT1 2010 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

5TG-2580E-20-00

$159.99

2

CYLINDER KIT, MASTER

5TG-W0042-50-00

$72.99

3

NUT, HEXAGON SMALL

95317-08700-00

$9.49

4

JOINT

2YK-27222-00-00

$21.99

5

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

6

BOLT, FLANGE

95022-08025-00

$8.49

7

HOSE, RESERVOIR

4D3-25895-00-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$8.49

9

CLIP (7K7)

90467-11044-00

$8.49

10

TANK, RESERVOIR

5TG-25894-00-00

Unavailable

11

CAP, RESERVOIR

3XP-25852-50-00

$22.99

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

COVER, RESERVOIR TANK

4D3-25888-00-00

Unavailable

15

PROTECTOR

4D3-27491-00-00

Unavailable

16

BOLT

90109-06240-00

Unavailable

17

PIN, CLEVIS

90240-08005-00

Unavailable

18

WASHER, PLATE

90201-08066-00

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

20

BOLT, UNION

90401-10015-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

HOSE, BRAKE

4D3-25874-00-00

Unavailable

23

BOLT, UNION

90401-10015-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable
