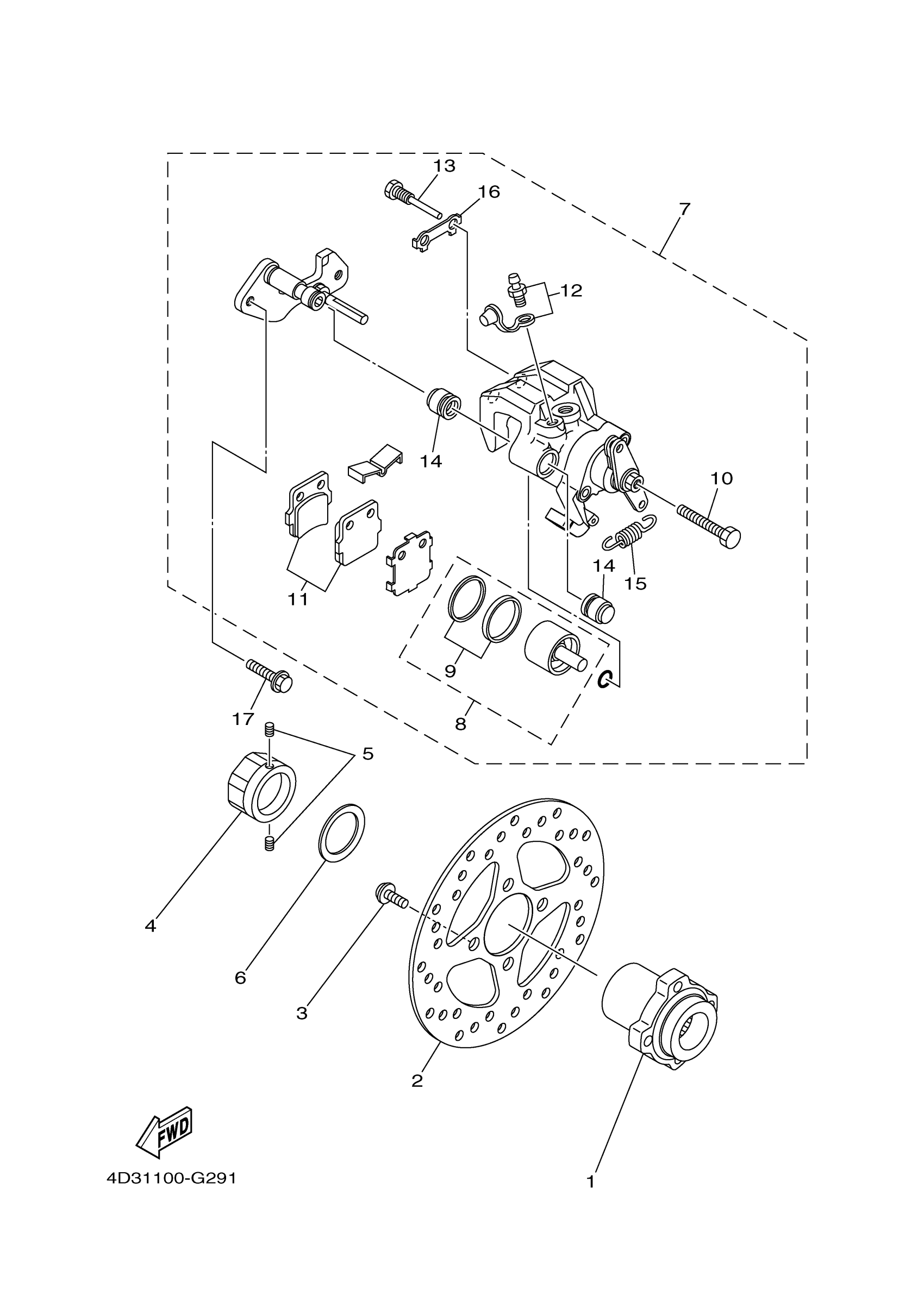

Yamaha YFM25RZW (RAPTOR 250) 1BT1 2010 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

5YT-25712-00-00

Unavailable

2

DISK, REAR BRAKE 2

4D3-2582W-00-00

$92.08

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

4

NUT

90170-33010-00

$31.11

5

BOLT, SET (8K2)

90113-06039-00

$6.51

6

WASHER, CONICAL SPRING

90208-34001-00

$11.27

7

CALIPER ASSY, REAR 2

5YT-2580W-10-00

$447.53

8

PISTON ASSY, CALIPER

1UY-W0057-50-00

$102.21

9

CALIPER SEAL KIT

1UY-W0047-50-00

$14.76

10

ADJUSTBOLT

1UY-25972-51-00

$10.74

11

BRAKE PAD KIT 2

4D3-W0046-51-00

Unavailable

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

PIN, PAD

1UY-25924-51-00

Unavailable

14

BOOT, CALIPER

1UY-25917-51-00

$5.50

15

SPRING, RETURN

5YT-25977-50-00

Unavailable

16

WASHER, PAD PIN

1UY-25933-51-00

Unavailable

17

BOLT, FLANGE

90105-08183-00

Unavailable
