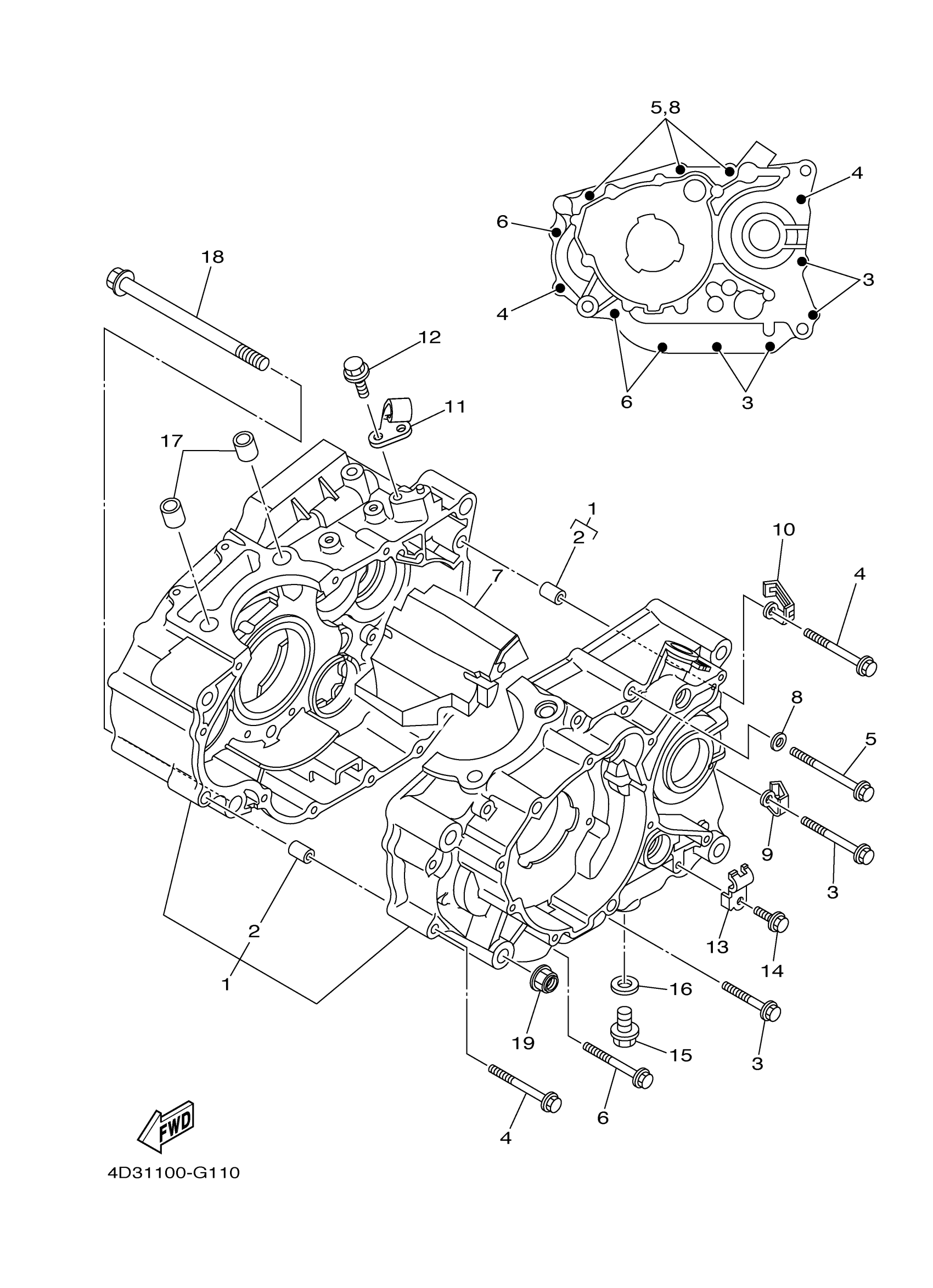

Yamaha YFM25RZW (RAPTOR 250) 1BT1 2010 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5XT-15100-07-00

$413.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, FLANGE

95022-06045-00

$4.29

4

BOLT, FLANGE

95022-06060-00

$8.49

5

BOLT, FLANGE

95022-06070-00

$2.22

6

BOLT, FLANGE

95022-06055-00

$2.17

7

SPACER, ENGINE MOUNT

4D3-15327-00-00

Unavailable

8

GASKET 256113960000

90430-06014-00

Unavailable

9

CLAMP

90462-08045-00

$5.60

10

CLAMP

90461-08001-00

Unavailable

11

HOLDER, CLUTCH CABLE

4D3-15441-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

CLAMP(4GY)

90462-10215-00

Unavailable

14

BOLT, FLANGE

95022-06010-00

$5.60

15

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

16

GASKET(3FD)

90430-12213-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable

18

BOLT, FLANGE

95812-10170-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable
