Partiron

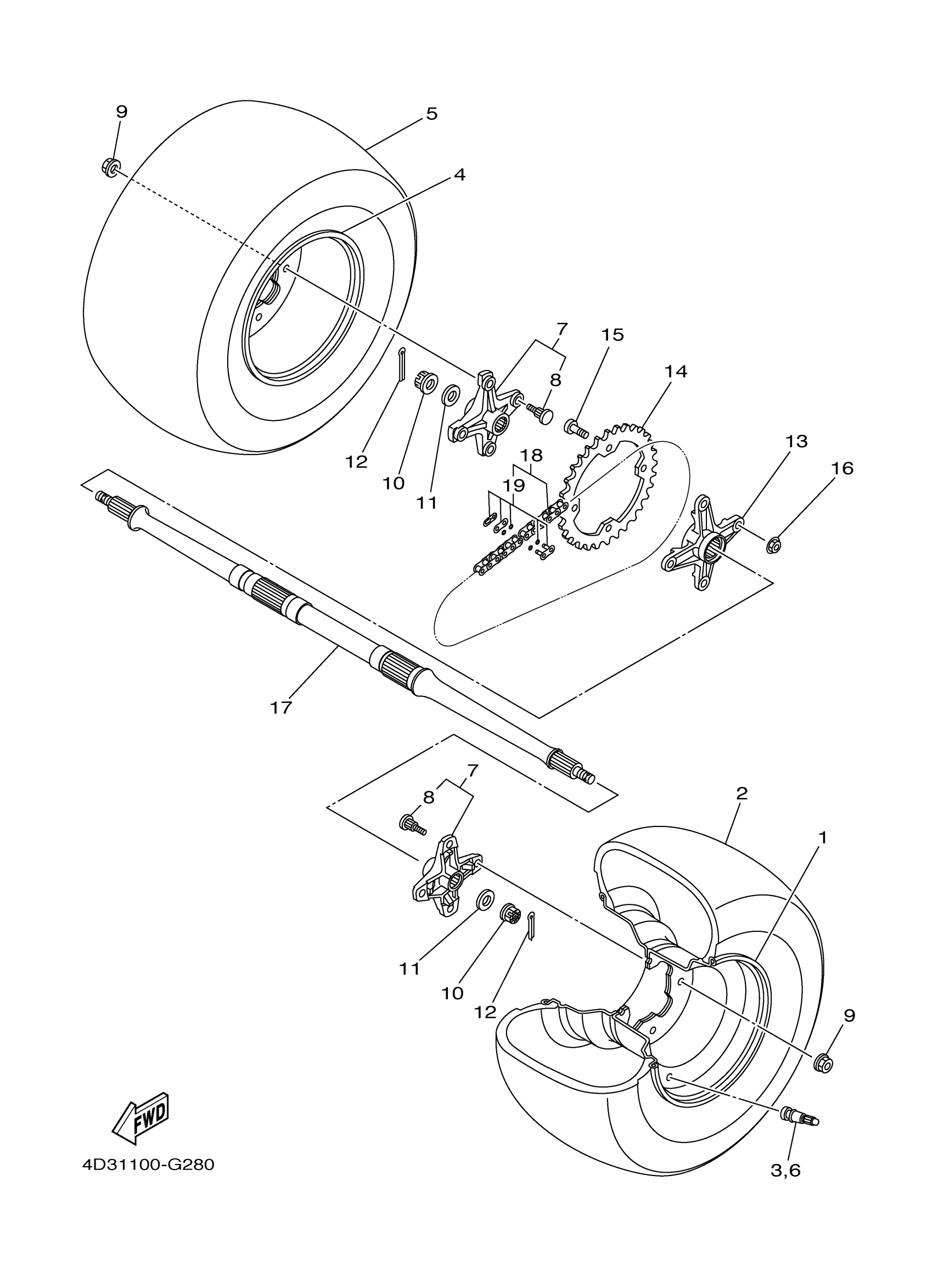

Yamaha YFM25RYW (RAPTOR 250) 4D3D0 2009 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

5LP-F5390-29-00

Unavailable

2

TIRE (AT19X10-9 DI-K502A T/L N

94110-09033-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL,REAR

5LP-F5390-29-00

Unavailable

5

TIRE (AT19X10-9 DI-K502A T/L N

94110-09033-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$13.50

7

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$64.97

8

BOLT, SERRATION

90114-10013-00

$4.26

9

NUT, FLANGE(3BM)

95704-10500-00

$1.68

10

NUT, CASTLE

90171-14004-00

$9.15

11

WASHER, PLATE

90201-14021-00

$4.81

12

PIN, COTTER

91490-30030-00

$6.88

13

COLLAR, SPROCKET AXLE

5YT-25386-00-00

$122.26

14

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$35.26

15

BOLT

90109-10010-00

$5.31

16

NUT, S/L FLANGE

95602-10200-00

Unavailable

17

AXLE, WHEEL

4D3-F5381-09-00

Unavailable

18

CHAIN

9Y581-87091-00

Unavailable

19

JOINT, CHAIN

94681-87011-00

Unavailable
