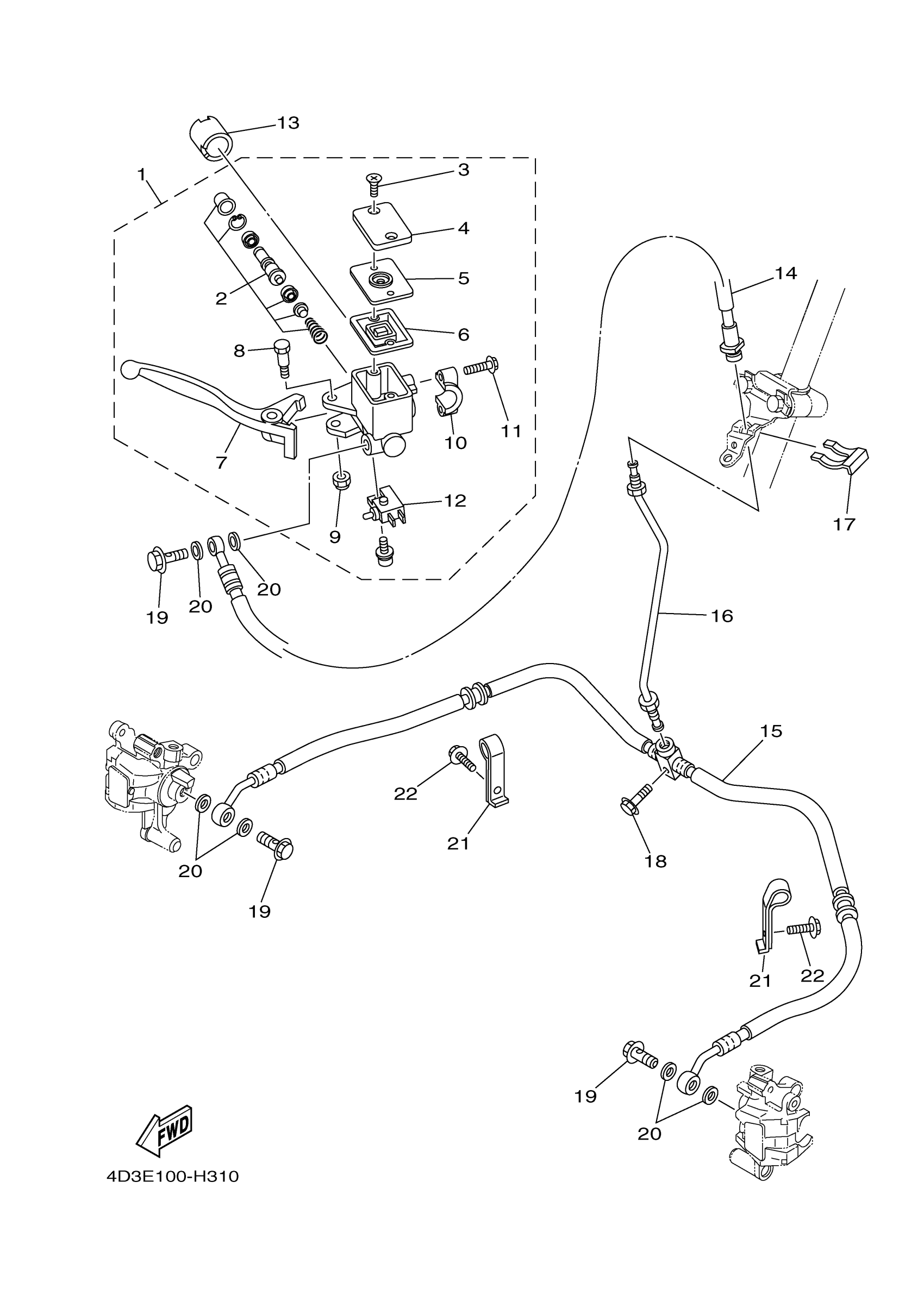

Yamaha YFM25RYW (RAPTOR 250) 4D3D0 2009 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

4D3-2583T-02-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

SCREW

3D8-2589H-10-00

$7.99

4

CAP, RESERVOIR

5YU-25852-00-00

$36.99

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$10.99

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

7

LEVER 2

4D3-83922-00-00

Unavailable

8

BOLT, LEVER

3B4-2589F-00-00

Unavailable

9

NUT, U(4NK)

95604-06100-00

$8.49

10

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

11

BOLT, FITTING

5MV-25833-00-00

$6.99

12

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

13

COLLAR

1UY-26259-00-00

$19.49

14

HOSE, BRAKE 1

4D3-25872-00-00

Unavailable

15

HOSE, BRAKE 2

4D3-25873-00-00

Unavailable

16

PIPE, BRAKE

4D3-25871-00-00

Unavailable

17

CIRCLIP

2GU-25866-00-00

Unavailable

18

BOLT, FLANGE

95822-06025-00

Unavailable

19

BOLT, UNION

90401-10015-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE

4D3-25886-10-00

Unavailable

22

BOLT, FLANGE

95817-06016-00

Unavailable
