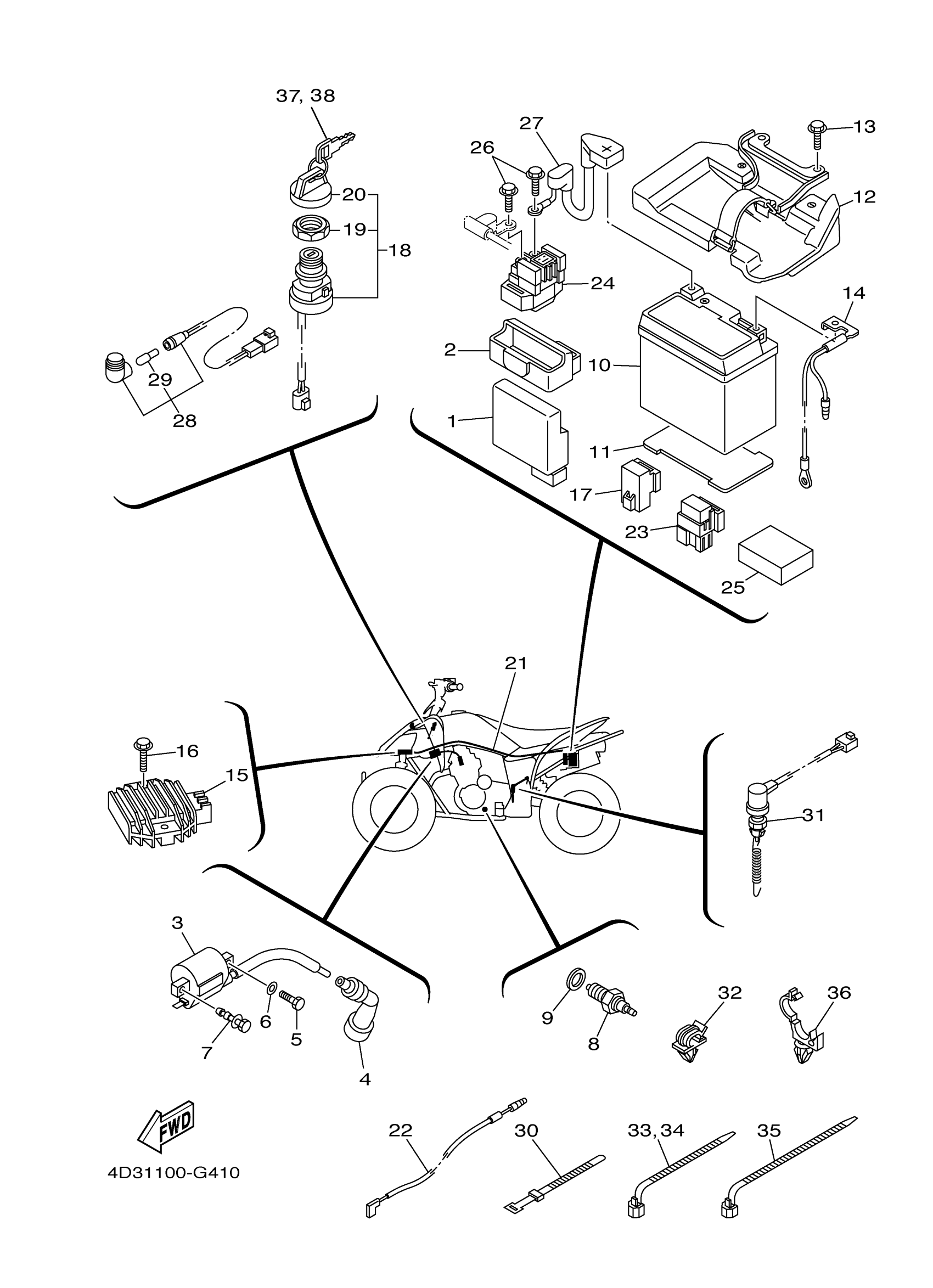

Yamaha YFM25RYW (RAPTOR 250) 4D3D0 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4D3-85540-00-00

$415.99

2

BAND

4D3-85546-00-00

$16.49

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

PLUG CAP ASSY

3NS-82370-00-00

$37.99

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

BOLT (21V)

90109-06723-00

$8.49

8

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

Unavailable

11

SEAT, BATTERY

4D3-82122-00-00

$10.99

12

BATTERY PLATE COMP

4D3-82106-00-00

$64.99

13

BOLT, FLANGE

95817-06016-00

$2.75

14

WIRE, MINUS LEAD

4D3-82116-00-00

$19.99

15

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

RELAY ASSY

12R-81950-02-00

Unavailable

18

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

19

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

20

CAP, KEY

3HN-82579-00-00

Unavailable

21

WIRE HARNESS ASSY

4D3-82590-00-00

Unavailable

22

WIRE, LEAD

4D3-82541-00-00

Unavailable

23

RELAY ASSY

5DM-81950-01-00

Unavailable

24

STARTER RELAY ASSY (RC19-077A)

4D3-81940-00-00

Unavailable

25

DAMPER

4D3-8252R-00-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

Unavailable

27

WIRE, PLUS LEAD

4D3-82115-00-00

Unavailable

28

PILOT LIGHT ASSY

4D3-83530-00-00

Unavailable

29

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

30

BAND, SWITCH CORD

437-83936-01-00

Unavailable

31

STOP SWITCH ASSY

4D3-82530-00-00

Unavailable

32

CLAMP

90464-07011-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

Unavailable

34

CLAMP(4FM)

90464-15195-00

Unavailable

35

CLAMP(4FM)

90464-15195-00

Unavailable

36

CLAMP

90464-20010-00

Unavailable

37

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

38

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
