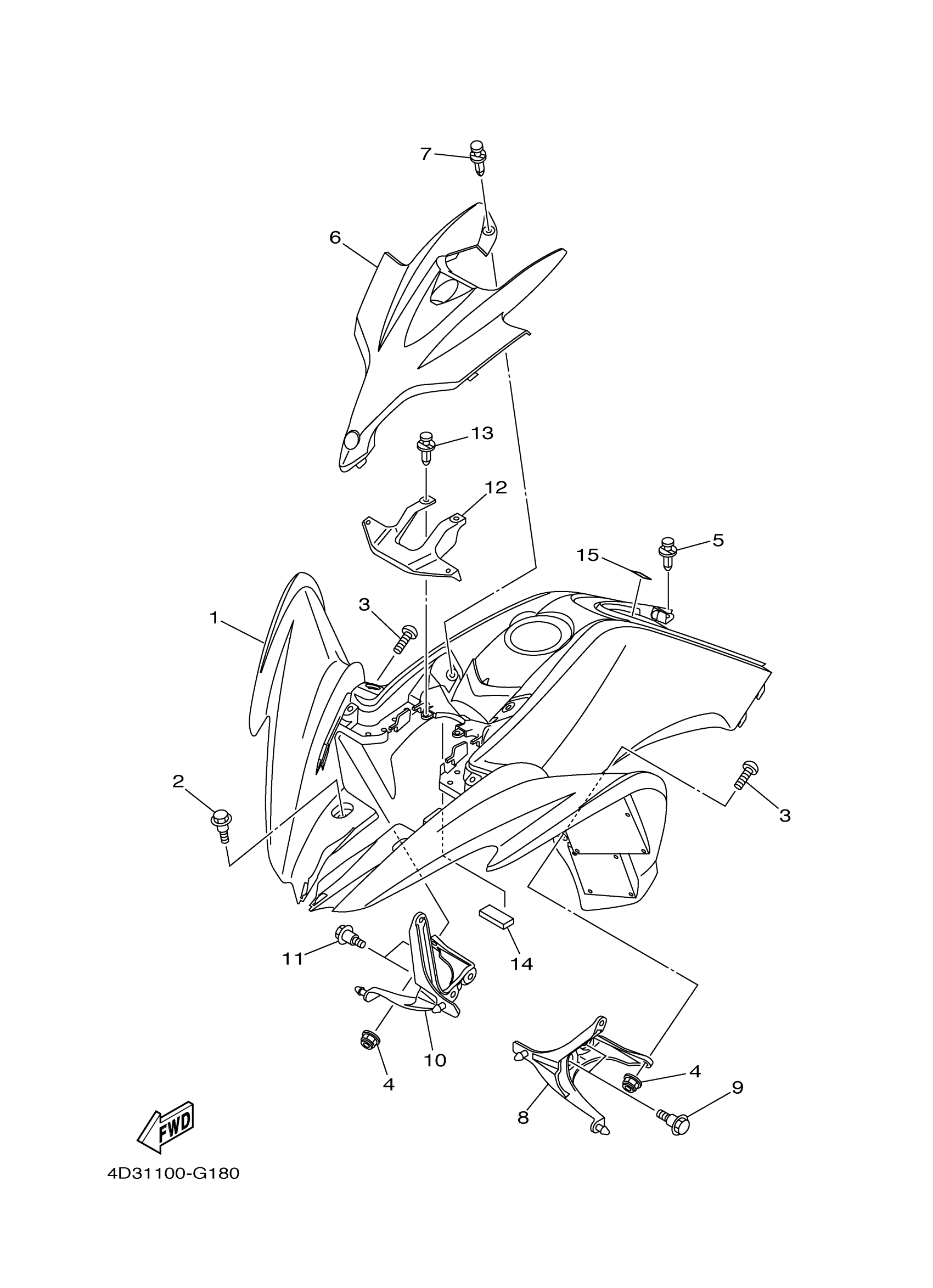

Yamaha YFM25RYL (RAPTOR 250) 4D3D 2009 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4D3-W2151-01-00

$312.65

1

FRONT FENDER COMP. (BLUISH WHITE SOLID 1)

4D3-W2151-40-00

$375.15

2

BOLT

90109-06172-00

$2.53

3

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

4

NUT, U FLANGE

95604-06200-00

$2.19

5

RIVET

90269-07010-00

$3.49

6

PANEL, FRONT

4D3-23391-00-00

$54.66

7

RIVET

90269-07010-00

$3.49

8

STAY, FENDER 1

4D3-21513-00-00

$37.14

9

BOLT

90109-06214-00

$5.34

10

STAY, FENDER 2

4D3-21514-00-00

$37.14

11

BOLT

90109-06214-00

$5.34

12

PLATE 1

4D3-21523-00-00

$26.35

13

RIVET

90269-07010-00

$3.49

14

DAMPER

8ET-21747-00-00

$1.78

15

PROTECTOR

3MA-27491-00-00

Unavailable
