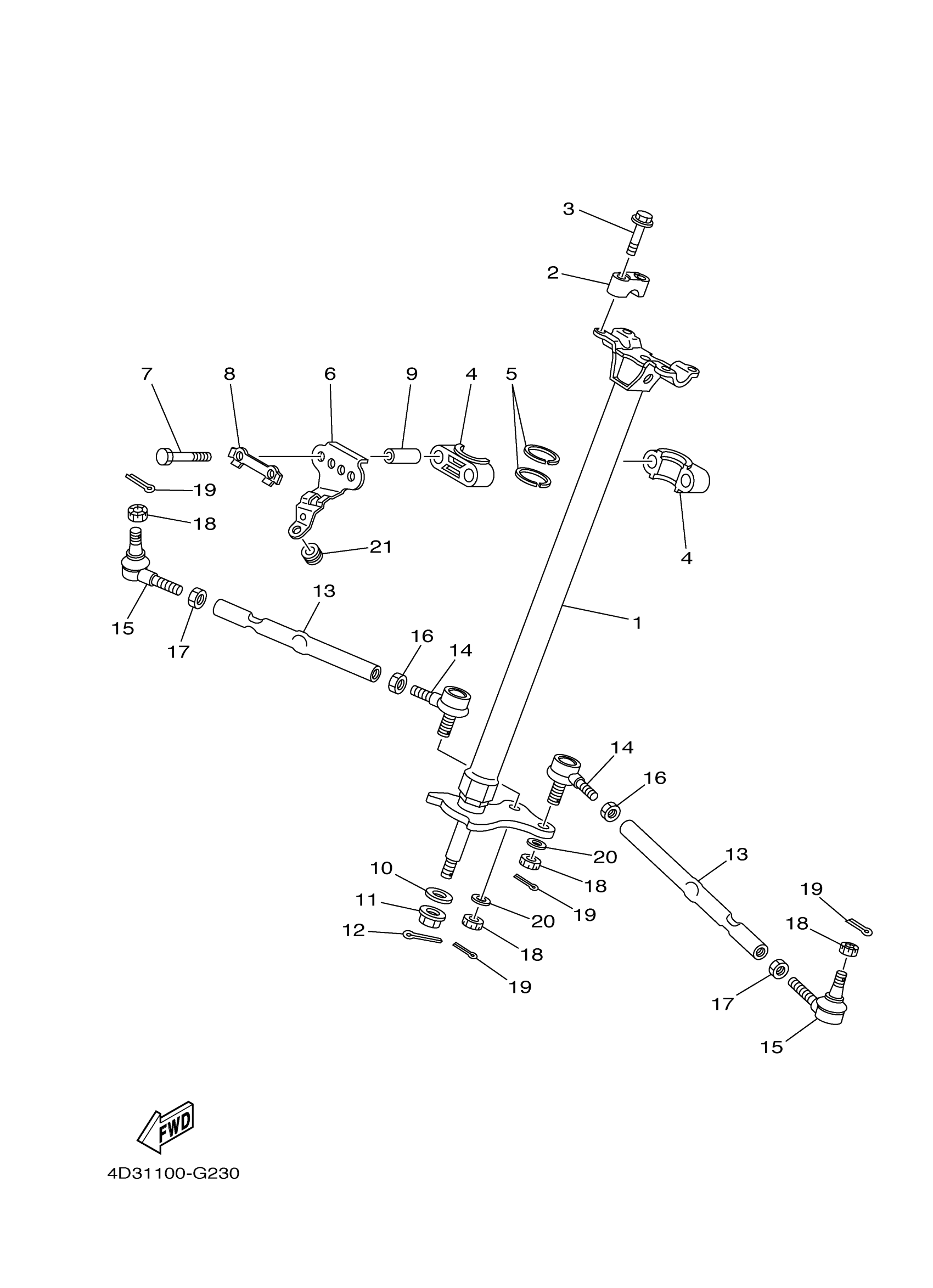

Yamaha YFM25RXL (RAPTOR 250) 4D310 2008 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

4D3-23813-00-00

$254.99

2

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

3

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

4

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

5

OIL SEAL(1UY)

93112-31011-00

$9.49

6

BRACKET, STEERING LOWER

4D3-23868-00-00

Unavailable

7

BOLT, HEXAGON

97017-08055-00

$9.49

8

WASHER, LOCK 1

1UY-23894-01-00

$7.99

9

COLLAR(85G)

90387-106T4-00

$14.99

10

WASHER, PLATE

90201-10036-00

$7.49

11

NUT, SELF-LOCKING

90185-10019-00

$8.49

12

PIN, COTTER

91490-20025-00

$1.99

13

ROD, TIE

4D3-23831-00-00

$38.99

14

JOINT, UNIVERSAL 1

1UY-23841-01-00

$76.99

15

JOINT, UNIVERSAL 2

1UY-23845-01-00

$76.99

16

NUT (682)

95380-10700-00

Unavailable

17

NUT

90170-10010-00

Unavailable

18

NUT, CASTLE

90171-10001-00

Unavailable

19

PIN, COTTER

91490-20025-00

$1.99

20

WASHER (25G)

90209-10229-00

Unavailable

21

GROMMET(2GH)

90480-12475-00

Unavailable
