Description

Price

1

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

4D3-W2161-00-00

Unavailable

1

REAR FENDER COMP. (PASTEL DARK GRAY)

4D3-W2161-10-00

Unavailable

2

BOLT

90109-06172-00

$7.49

3

BOLT

90109-06241-00

$7.49

4

BOLT

90109-06241-00

$7.49

5

FLAP

4D3-21621-00-00

Unavailable

6

STAY 1

4D3-2164F-00-00

Unavailable

7

STAY 3

4D3-2164H-00-00

$23.99

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

SCREW, BINDING(3XV)

90154-06061-00

$8.49

10

COLLAR (420)

90387-06241-00

$8.49

11

NUT, U FLANGE

95604-06200-00

$8.49

12

FLAP

5LP-21691-00-00

$63.99

13

STAY 2

4D3-2164G-00-00

$56.99

14

STAY 4

5YT-2164J-10-00

Unavailable

15

SCREW, BINDING (10V)

90154-05013-00

$5.60

16

SCREW, BINDING(3XV)

90154-06061-00

$8.49

17

COLLAR (420)

90387-06241-00

$8.49

18

NUT, U FLANGE

95604-06200-00

$8.49

19

BOLT, FLANGE

95814-08016-00

Unavailable

20

WASHER, PLATE

90201-08048-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

WASHER, PLATE

90201-08048-00

Unavailable

23

NUT, SELF-LOCKING

95602-08200-00

Unavailable

24

STAY, FENDER 1

4D3-21613-00-00

Unavailable

25

STAY, FENDER 2

4D3-21614-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

27

NUT, U FLANGE

95604-06200-00

$8.49

28

COVER, REAR FENDER 1

4D3-2163A-00-00

Unavailable

29

BOLT

90109-06172-00

$7.49

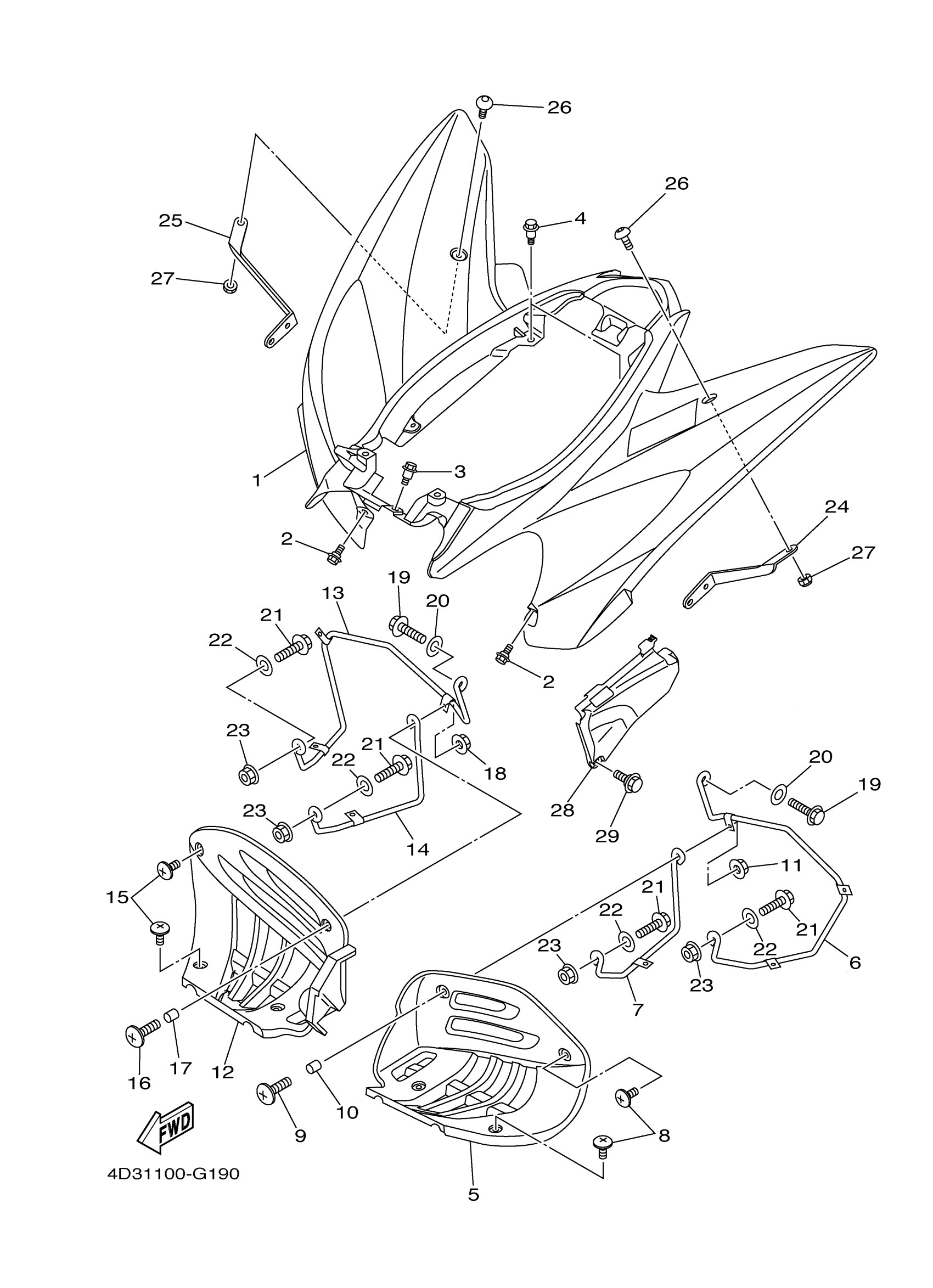

Yamaha YFM25RXL (RAPTOR 250) 4D310 2008 REAR FENDER Diagram

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

REAR FENDER COMP. (PASTEL DARK GRAY)

BOLT

BOLT

BOLT

FLAP

STAY 1

STAY 3

SCREW, BINDING (10V)

SCREW, BINDING(3XV)

COLLAR (420)

NUT, U FLANGE

FLAP

STAY 2

STAY 4

SCREW, BINDING (10V)

SCREW, BINDING(3XV)

COLLAR (420)

NUT, U FLANGE

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE(4LN)

WASHER, PLATE

NUT, SELF-LOCKING

STAY, FENDER 1

STAY, FENDER 2

BOLT, HEXAGON SOCKET HEAD(3HE)

NUT, U FLANGE

COVER, REAR FENDER 1

BOLT
