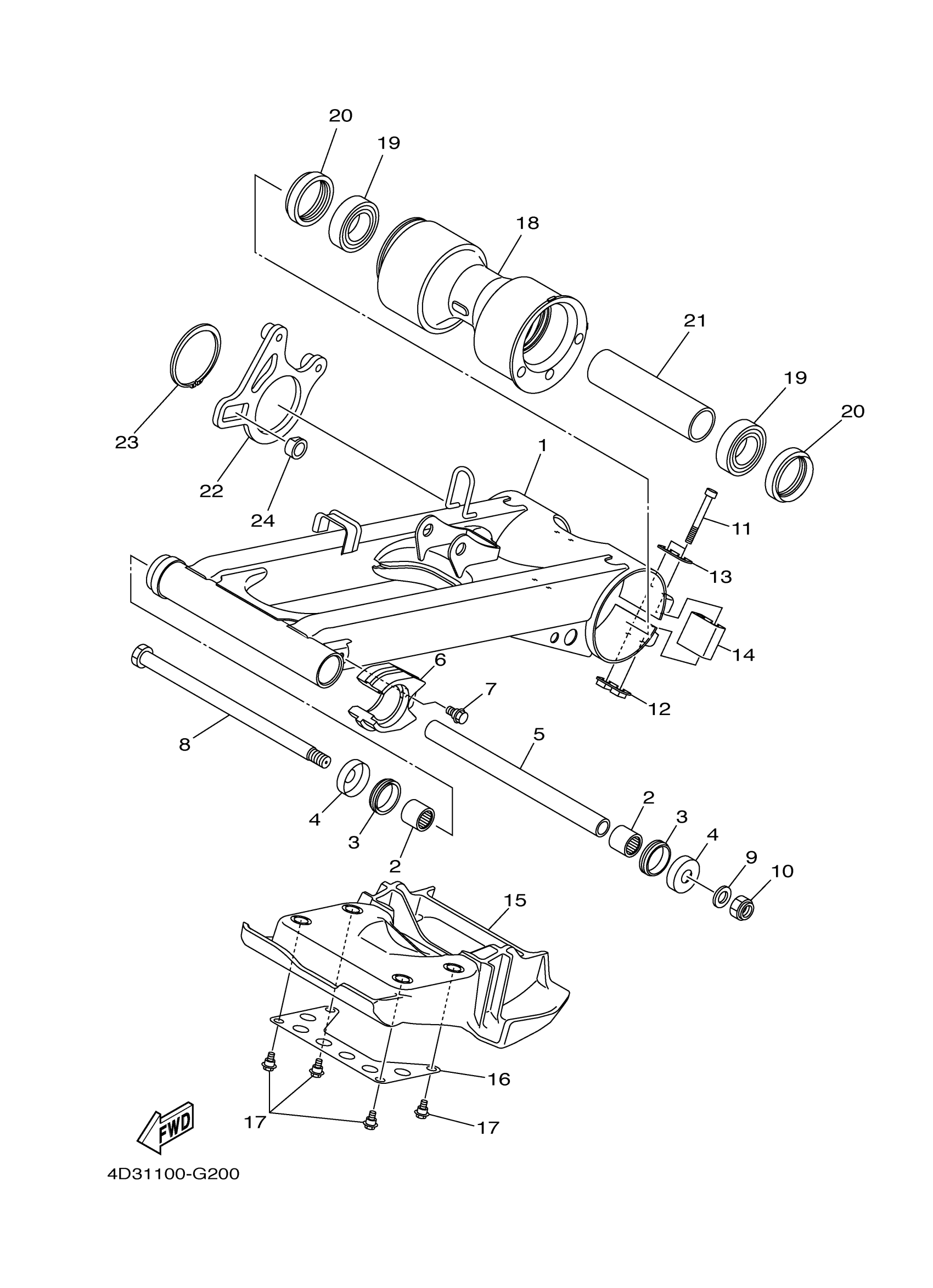

Yamaha YFM25RXL (RAPTOR 250) 4D310 2008 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4D3-22110-00-P0

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

3

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

4

COVER

30X-2219X-00-00

$16.49

5

BUSH

4D3-22184-00-00

$64.99

6

SEAL, GUARD

4D3-22151-00-00

$22.99

7

BOLT

90109-06172-00

$7.49

8

SHAFT, PIVOT

2JN-22141-00-00

Unavailable

9

WASHER, PLATE

90201-14020-00

$8.49

10

NUT, SELF-LOCKING

90185-14009-00

$9.49

11

BOLT, SOCKET

91314-08060-00

$8.49

12

NUT, PJTN.

4D3-22314-00-00

$8.99

13

PLATE 2

4D3-22348-00-00

$4.52

14

COVER, DUST

4D3-2217H-00-00

$10.99

15

COVER

4D3-2219X-00-00

$41.99

16

PLATE, CHAIN CASE RUBBER

4D3-22347-00-00

Unavailable

17

BOLT

90109-06236-00

Unavailable

18

HUB, REAR

2PA-25311-00-00

Unavailable

19

BEARING

93306-00710-00

Unavailable

20

OIL SEAL

93106-46001-00

Unavailable

21

SPACER, BEARING

4D3-25317-00-00

Unavailable

22

BRACKET, CALIPER

4D3-25721-00-00

Unavailable

23

CIRCLIP

93410-67085-00

Unavailable

24

COLLAR, WHEEL

4D3-25377-00-00

Unavailable
