Description

Price

1

WHEEL,FRONT

5LP-F5180-29-00

$274.99

2

TIRE (AT20X7-10 DI-K102 T/L N)

94107-10033-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL,FRONT

5LP-F5180-29-00

$274.99

5

TIRE (AT20X7-10 DI-K102 T/L N)

94107-10033-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

HUB, FRONT

3GD-25111-20-00

Unavailable

8

BOLT, SERRATION

90114-10006-00

$5.60

9

SPACER, BEARING

1UY-25117-00-00

$28.99

10

BEARING

93306-00446-00

$43.99

11

. BEARING

93306-20231-00

Unavailable

12

OIL SEAL(1UY)

93105-26026-00

$12.49

13

OIL SEAL (7H5)

93102-22216-00

$11.49

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

COLLAR(1UY)

90387-150R1-00

$7.49

16

WASHER PLATE 248181370000

90201-14220-00

Unavailable

17

NUT, CASTLE

90171-14002-00

Unavailable

18

PIN, COTTER

91401-30025-00

Unavailable

19

COVER, PLATE

1S3-25127-01-00

Unavailable

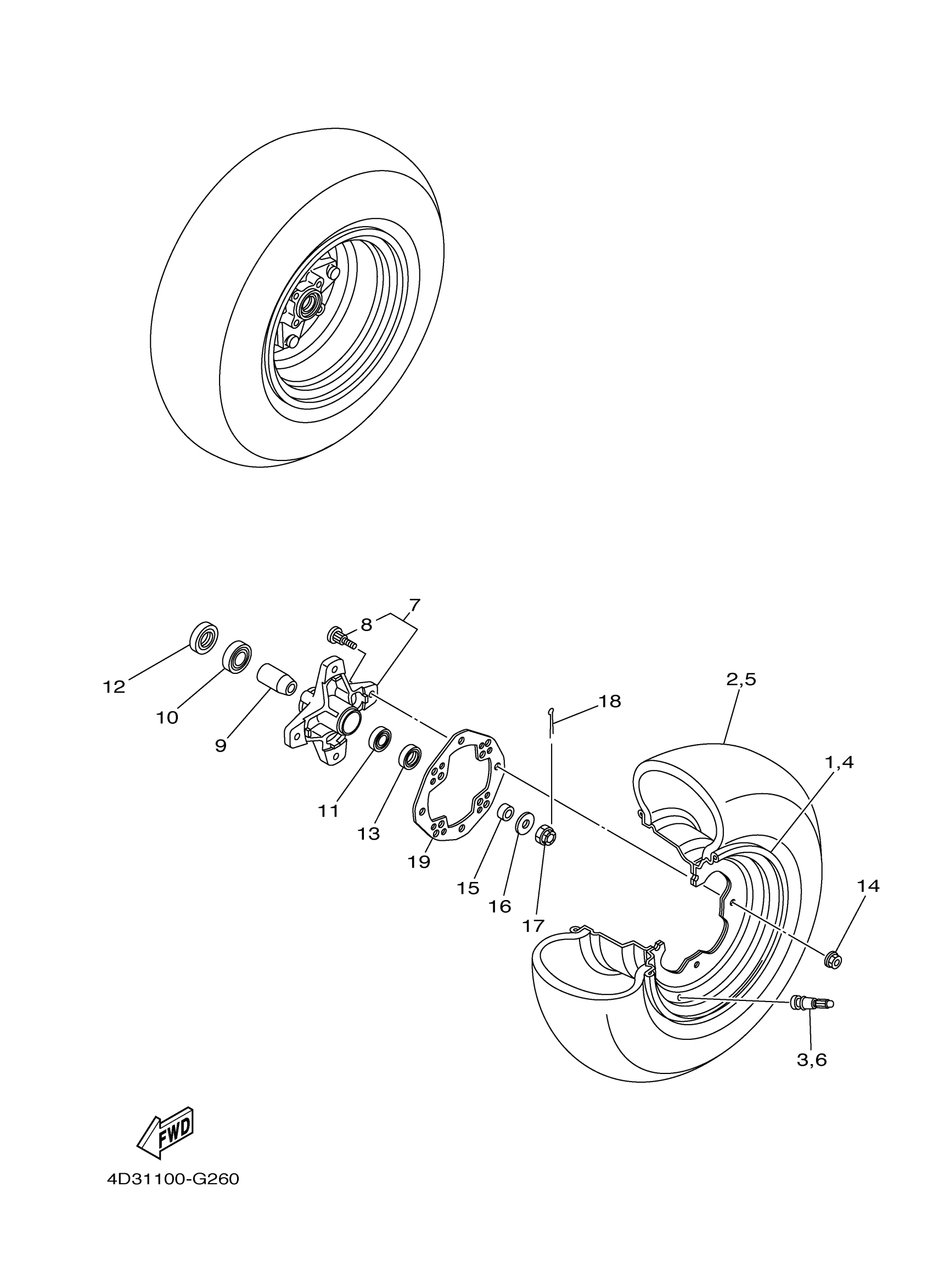

Yamaha YFM25RXL (RAPTOR 250) 4D310 2008 FRONT WHEEL Diagram

WHEEL,FRONT

TIRE (AT20X7-10 DI-K102 T/L N)

VALVE, RIM(2GH)

WHEEL,FRONT

TIRE (AT20X7-10 DI-K102 T/L N)

VALVE, RIM(2GH)

HUB, FRONT

BOLT, SERRATION

SPACER, BEARING

BEARING

. BEARING

OIL SEAL(1UY)

OIL SEAL (7H5)

NUT, FLANGE(3BM)

COLLAR(1UY)

WASHER PLATE 248181370000

NUT, CASTLE

PIN, COTTER

COVER, PLATE
