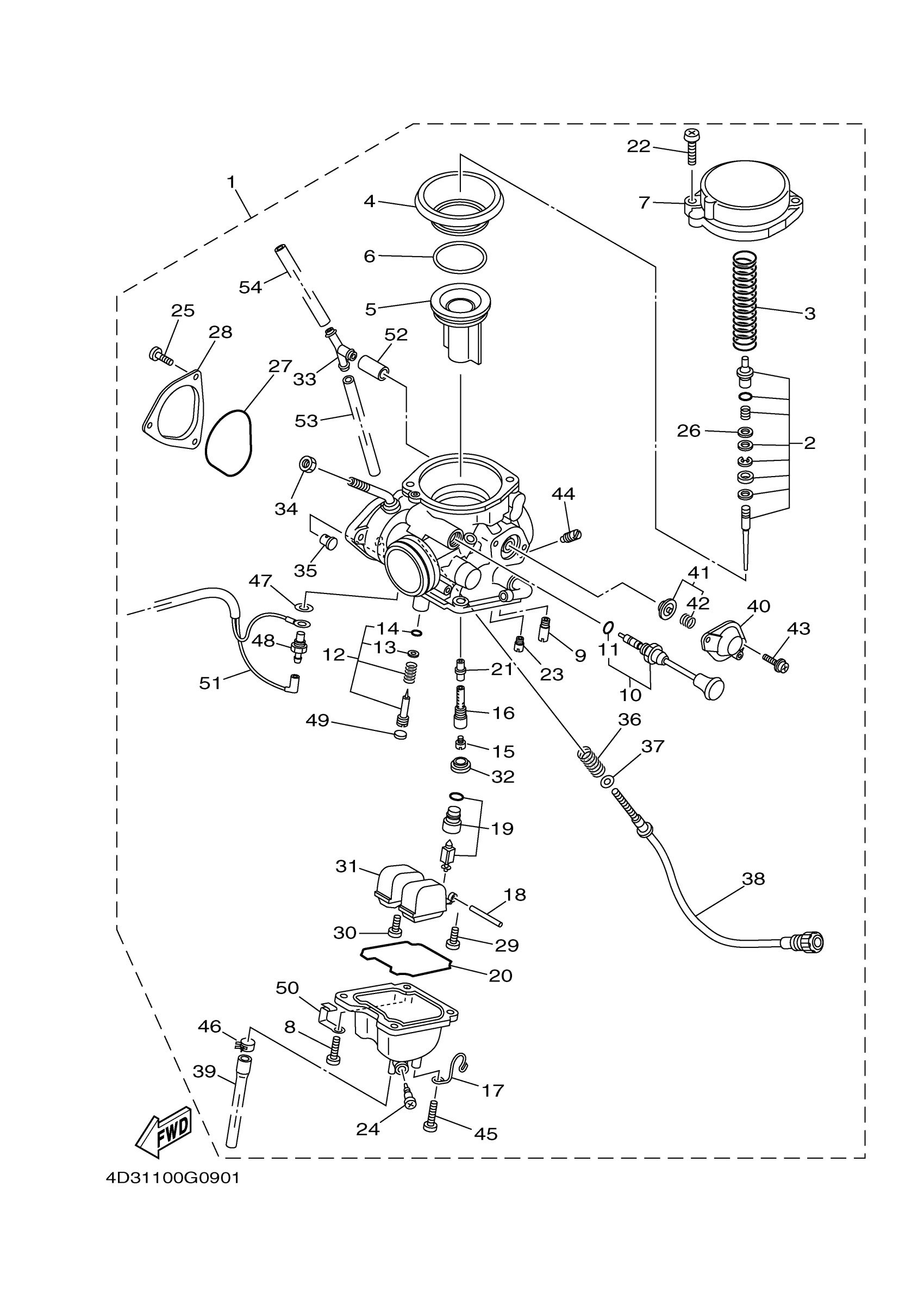

Yamaha YFM25RXL (RAPTOR 250) 4D310 2008 CARBURETOR Diagram
#
4
DIAPHRAGM
4D3-14841-00-00
Unavailable
7
COVER, DIAPHRAGM
4D3-14958-00-00
Unavailable
15
JET, MAIN (#133.8)
620-1423E-53-00
Unavailable
16
HOLDER
4D3-14261-00-00
Unavailable
17
CLIP
4D3-14937-00-00
Unavailable
18
PIN, FLOAT
127-14186-00-00
Unavailable
19
NEEDLE VALVE SET
5YT-14107-20-00
Unavailable
20
O-RING
5DM-14561-00-00
Unavailable
21
NOZZLE, MAIN
5DM-1414M-40-00
Unavailable
22
SCREW
4KM-14216-00-00
Unavailable
23
JET, MAIN (# 55)
3G2-14231-11-00
Unavailable
24
PLUG, DRAIN
12R-14191-00-00
Unavailable
25
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
26
WASHER
5DM-14952-00-00
Unavailable
27
O-RING
5LP-14147-00-00
Unavailable
28
COVER 1
4WV-14293-00-00
Unavailable
29
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
30
SCREW
1FN-14565-00-00
Unavailable
31
FLOAT
5DM-14985-00-00
Unavailable
32
WASHER, MAIN JET
5V7-14153-00-00
Unavailable
33
PIPE, STARTER CONNECTING
4D3-14988-00-00
Unavailable
34
NUT, CABLE ADJUSTING
1S3-14161-00-00
Unavailable
35
GUIDE, CABLE
3GD-14155-00-00
Unavailable
36
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
37
WASHER
5FU-14962-00-00
Unavailable
38
SCREW, AIR ADJUSTING
4D3-14123-00-00
Unavailable
39
PIPE
4D3-14193-00-00
Unavailable
40
COVER, CARBURETOR
5AP-14280-00-00
Unavailable
41
DIAPHRAGM SET 5
4D3-1490H-00-00
Unavailable
42
SPRING, THROTTLE STOP
3HT-14934-00-00
Unavailable
43
SCREW,W/WASHER
97607-04114-00
Unavailable
44
JET, MAIN (#170)
1HX-14231-34-00
Unavailable
45
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
46
CLIP (8A1)
90467-09026-00
Unavailable
47
WASHER
5CY-14951-00-00
Unavailable
48
HEATER ASSY
5FU-83790-00-00
Unavailable
49
CAP
3F9-14118-00-00
Unavailable
50
PLATE
3XV-14243-00-00
Unavailable
51
WIRE, SUB LEAD
4D3-82509-00-00
Unavailable
52
PIPE
4D3-14196-00-00
Unavailable
53
HOSE (L800)
90445-11083-00
Unavailable
54
HOSE
5JJ-14987-00-00
Unavailable
