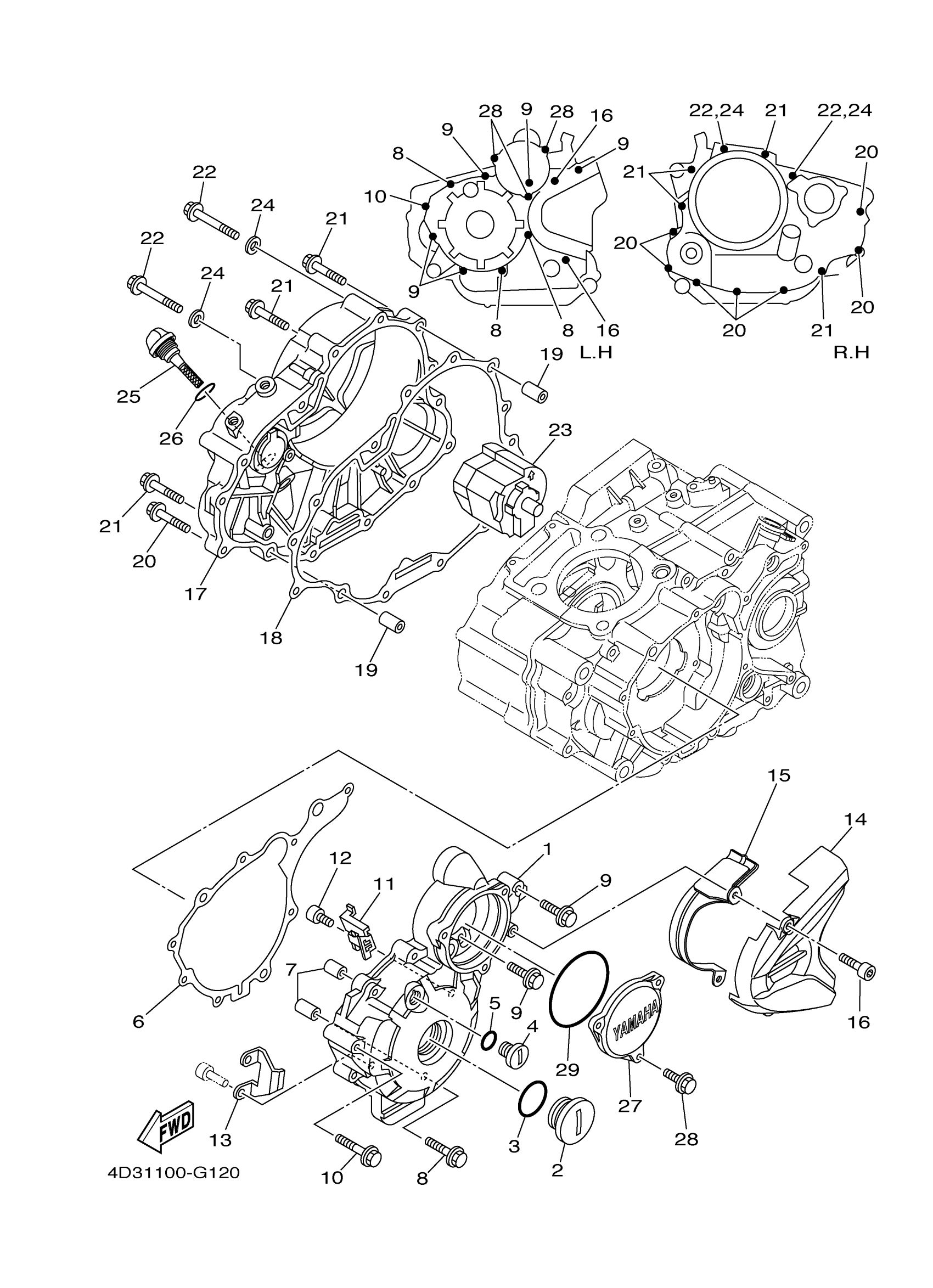

Yamaha YFM25RXGY (RAPTOR 250) 4D31 2008 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4D3-15411-00-00

$190.07

2

PLUG, STRAIGHT SCREW

90340-32005-00

$25.18

3

O-RING (341)

93210-32172-00

$5.78

4

PLUG, STRAIGHT SCREW

90340-14014-00

$17.09

5

O-RING (2H9)

93210-14369-00

$5.80

6

GASKET, CRANKCASE COVER 1

4D3-15451-00-00

$13.06

7

PIN, DOWEL(3VD)

99530-10114-00

$2.23

8

BOLT, FLANGE

95022-06040-00

$2.93

9

BOLT, FLANGE

95022-06030-00

$1.40

10

BOLT, FLANGE

95022-06045-00

$2.48

11

CLAMP

90465-16011-00

$3.78

12

BOLT(47X)

91312-05012-00

$2.46

13

PLATE

5XT-15113-00-00

$12.58

14

COVER, CHAIN CASE

4D3-15418-00-00

$32.12

15

PROTECTOR

4D3-15493-00-00

$27.26

16

BOLT(3MA)

91312-06016-00

$4.89

17

COVER, CRANKCASE 2

4D3-15421-00-00

$171.48

18

GASKET, CRANKCASE COVER 2

4D3-15461-00-00

$21.02

19

PIN, DOWEL(3VD)

99530-10114-00

$2.23

20

BOLT, FLANGE

95022-06025-00

$1.46

21

BOLT, FLANGE

95022-06040-00

$2.93

22

BOLT, FLANGE

95022-06050-00

$1.38

23

SPACER, DAMPER

4D3-15328-00-00

$34.42

24

GASKET 256113960000

90430-06014-00

$7.23

25

PLUG, OIL LEVEL

4D3-15362-00-00

$16.48

26

O-RING (646)

93210-19123-00

$6.91

27

COVER, GENERATOR

4D3-15415-00-00

$67.31

28

BOLT, FLANGE

95022-06016-00

$3.32

29

. O-RING

93210-74M68-00

$7.51
