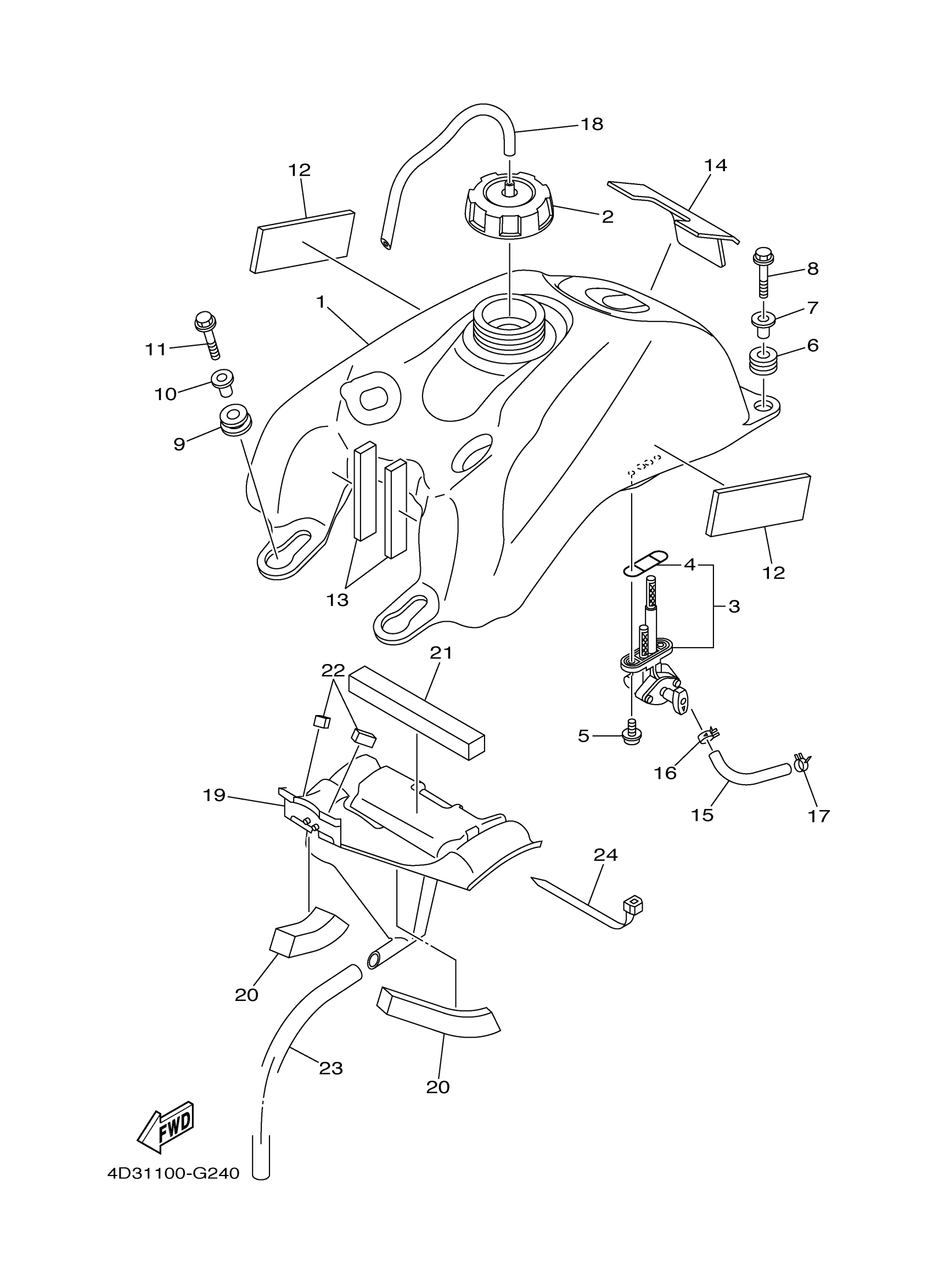

Yamaha YFM25RSPX (RAPTOR 250 SPECIAL EDITION) 4D35 2008 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4D3-24110-10-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

4D3-24500-00-00

Unavailable

4

GASKET

1P6-24512-00-00

$7.99

5

SCREW

90149-06108-00

$1.01

6

GROMMET (4V1)

90480-18290-00

$8.49

7

COLLAR (36R)

90387-066J1-00

$8.49

8

BOLT, FLANGE

95822-06025-00

$1.75

9

GROMMET

90480-18004-00

$5.60

10

COLLAR (36R)

90387-066J1-00

$8.49

11

BOLT, FLANGE

95822-06025-00

$1.75

12

DAMPER 1

5TG-21541-00-00

$7.99

13

DAMPER, LOCATING 1

4D3-24181-00-00

$2.18

14

DAMPER 1

4D3-21541-00-00

Unavailable

15

HOSE (L105)

90445-11050-00

$24.99

16

CLIP

90467-09120-00

Unavailable

17

CLIP

90467-100A2-00

Unavailable

18

HOSE (L340)

90445-08684-00

Unavailable

19

DAMPER, PLATE 1

4D3-2414H-00-00

Unavailable

20

DAMPER, LOCATING 2

4D3-24182-00-00

Unavailable

21

DAMPER, LOCATING 3

4D3-24183-00-00

Unavailable

22

DAMPER, LOCATING 4

4D3-24184-00-00

Unavailable

23

HOSE (L400)

90445-16007-00

Unavailable

24

CLAMP(4FM)

90464-15195-00

Unavailable
